GENERAL INFORMATION
Model Identification
The Electro Lift
®
unit is an electrically powered hydraulic
mechanism specifically designed for use with the Meyer
Snow Plow and is available in four models as follows:
E-46 Raises and lowers plow hydraulically
(2-way) and is used with TM, ST and
C series Snow Plows.
E-46H Raises and lowers plow hydraulically
(2-way) and is used with HM series
Snow Plows.
E-47/E-57 Raises, lowers and angles plow
hydraulically (7-way) and is used with
TM, ST and C series Snow Plows.
E-47H/E-57H Raises, lowers and angles plow
hydraulically (7-way) and is used with
the MDII, HM and Diamond series
Snow Plows.
Model Identification and Serial Number Location
Inclusion of the model number and serial number is
extremely important when writing up warranty claim
forms and product report forms for proper evaluation
and follow up.

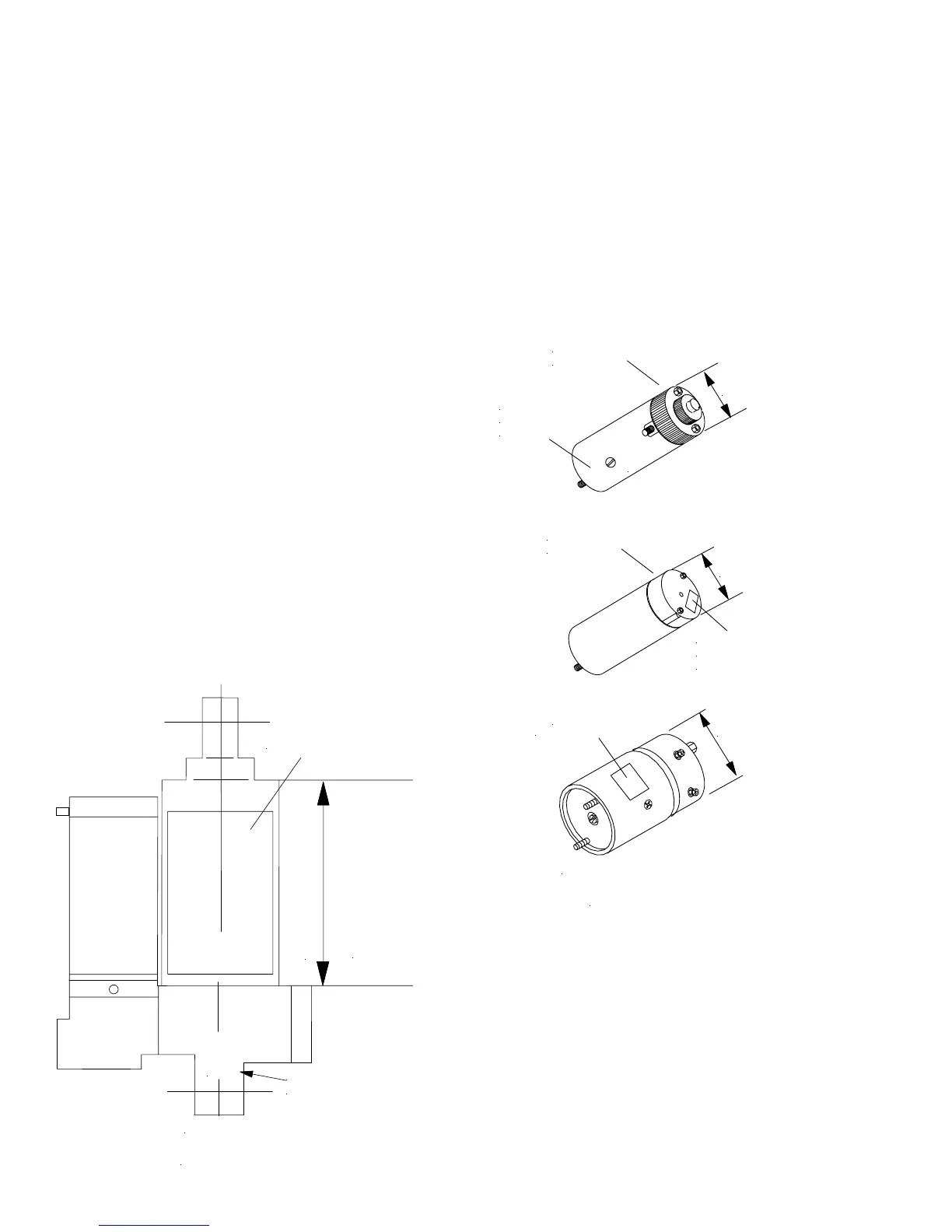

The basic model number is located on the name plate
located as shown in Figure 0-1. To determine whether
it is the standard or “H” model, measure the dimension
shown in Figure 0-1. The serial number is located on
the bottom of the base or on the name plate.
Motor Identification
Three different brand motors are used on the Electro
Lift® units American Bosch, Prestolite and Iskra.
Proper identification of the brand and supplier part
number is necessary when seeking local parts and
service sources.
The motor with which a specific Electro Lift
®
unit is
equipped can be identified by the distinctive
characteristics shown in figure 0-2.
MAINTENANCE
The following maintenance information is intended as
a basic guide for providing the Electro Lift
®
unit with
the proper service and care. Sustained heavy duty
operation or operating under adverse conditions may
necessitate more frequent servicing.
General Maintenance
Cleanliness
The greatest enemy to any hydraulic system is dirt or
contamination. Therefore, cleanliness must be stressed
at the time of installation, servicing and repairing.
-2-
DOMED COMMUTATO
R
END COVER
STEEL STAMPED
PRESTOLITE
MKW-4007-12V
3" Dia.
FLAT COMMUTATOR
END COVER
STEEL STAMPED
AMERICAN BOSCH
MO 551046A
FIGURE 0-2
4-1/2" Dia.
P
R
E
S
T
O
L
I
T
E
3" Dia.
SINGLE and TWO TERMINAL
ISKRA
Label 15829
AMJ4739 12V 1,6kw
NAME PLATE
E
-
4
6
,
E
-
4
7
,
E
-
5
7
6
-
1
/
4
"
E
-
4
6
H
,
E
-
4
7
H
,
E
-
5
7
H
8
-
1
/
8
"
xxxxx
SERIAL NUMBER
(ON FRONT SIDE)
FRONT VIEW
FIGURE 0 -1
