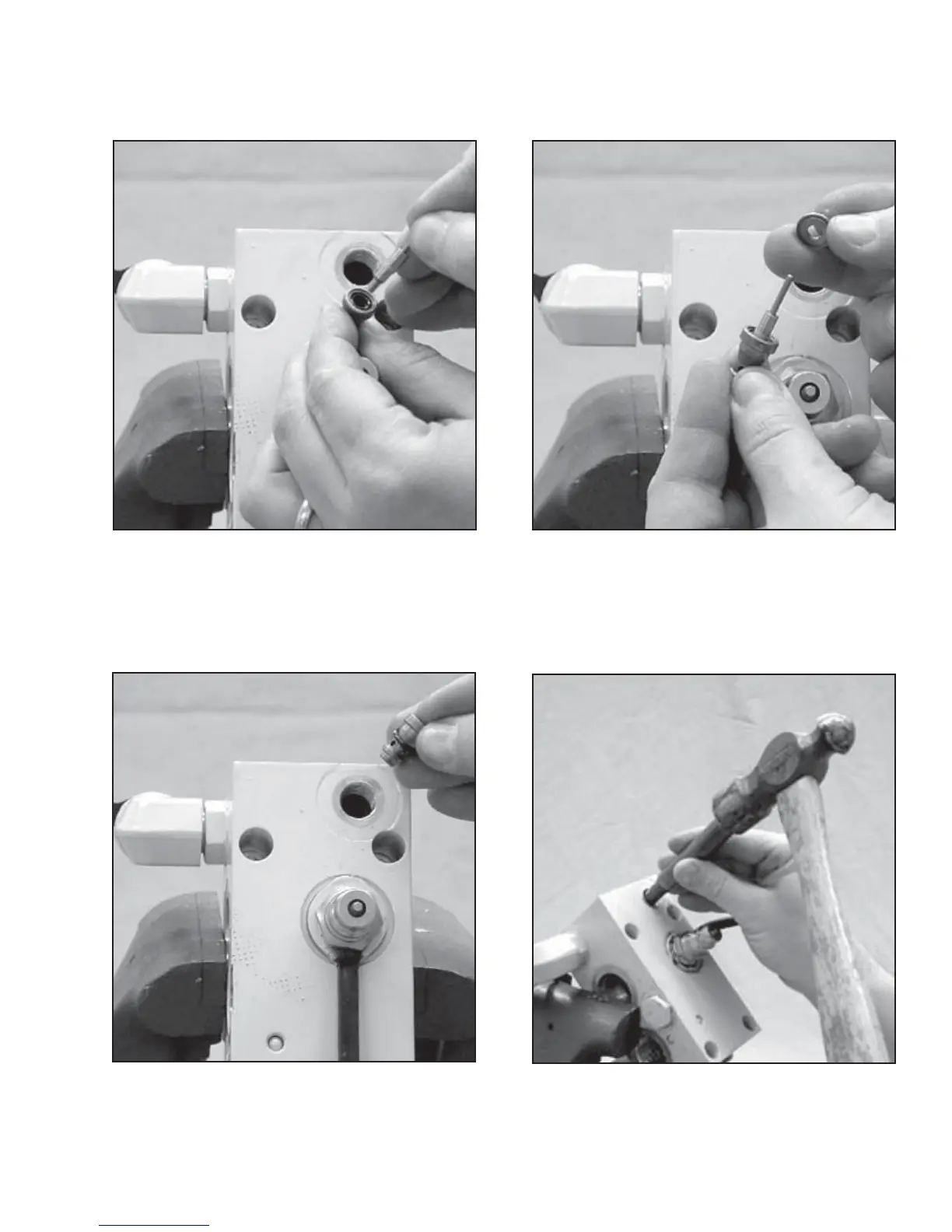

FIGURE 3-53
Assemble Poppet with bushing into Cage as shown.
FIGURE 3-54
To install Bushing (51), assemble Washer (53) onto the
Poppet as shown. Press Washer down on Cage, this
will put equal pressure on the Bushing. Hold Washer
(53) in place then remove Poppet from Cage.
FIGURE 3-55
Slide O-ring (49) over bottom of Cage. DO NOT push
O-ring completely onto shoulder of Cage. Drop Cage
assembly into block cavity.
FIGURE 3-56
Seat Cage assembly (50) to the bottom of the block cavity
using a Drift Pin of approximately the same diameter. Tap
Drift Pin lightly with a hammer until Cage assembly bottoms
out and seals against O-rings (48) and (49).
-47-
CROSSOVER RELIEF VALVE REASSEMBLY
