"A" SOLENOID
STRAINER
LIFT CYLINDER
CHECK VALVE
FILTER
TANK
PRESSURE RELIEF E-46 & E-46H 1650 + 50 P.S.I.

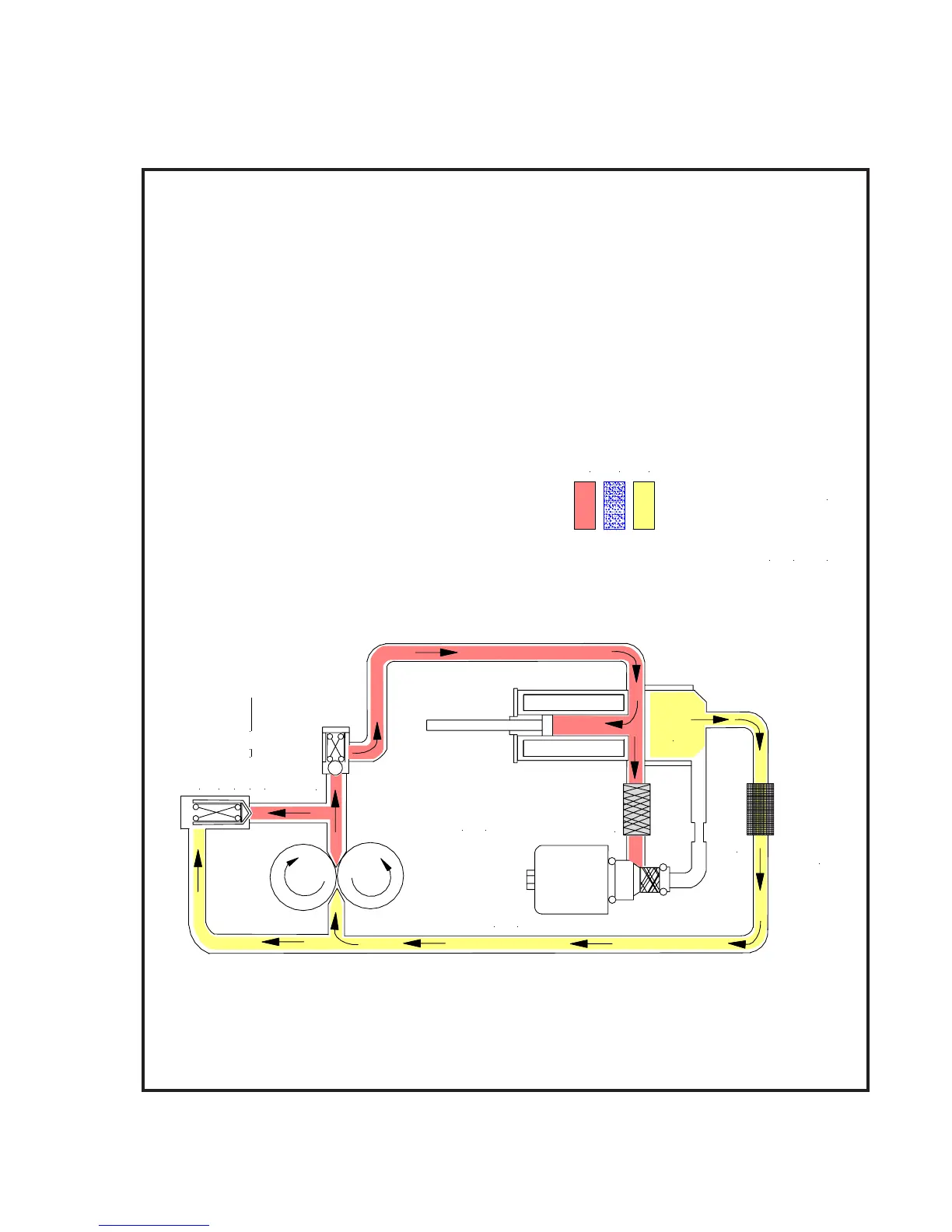

HYDRAULIC FLOW CHART MODELS E-46 & E-46H
RAISE
- OPERATING - RETURN - INTAKE or DRAIN
FIGURE 1-1B
