8 – CS 300 Gate Controls / rev. 04.06

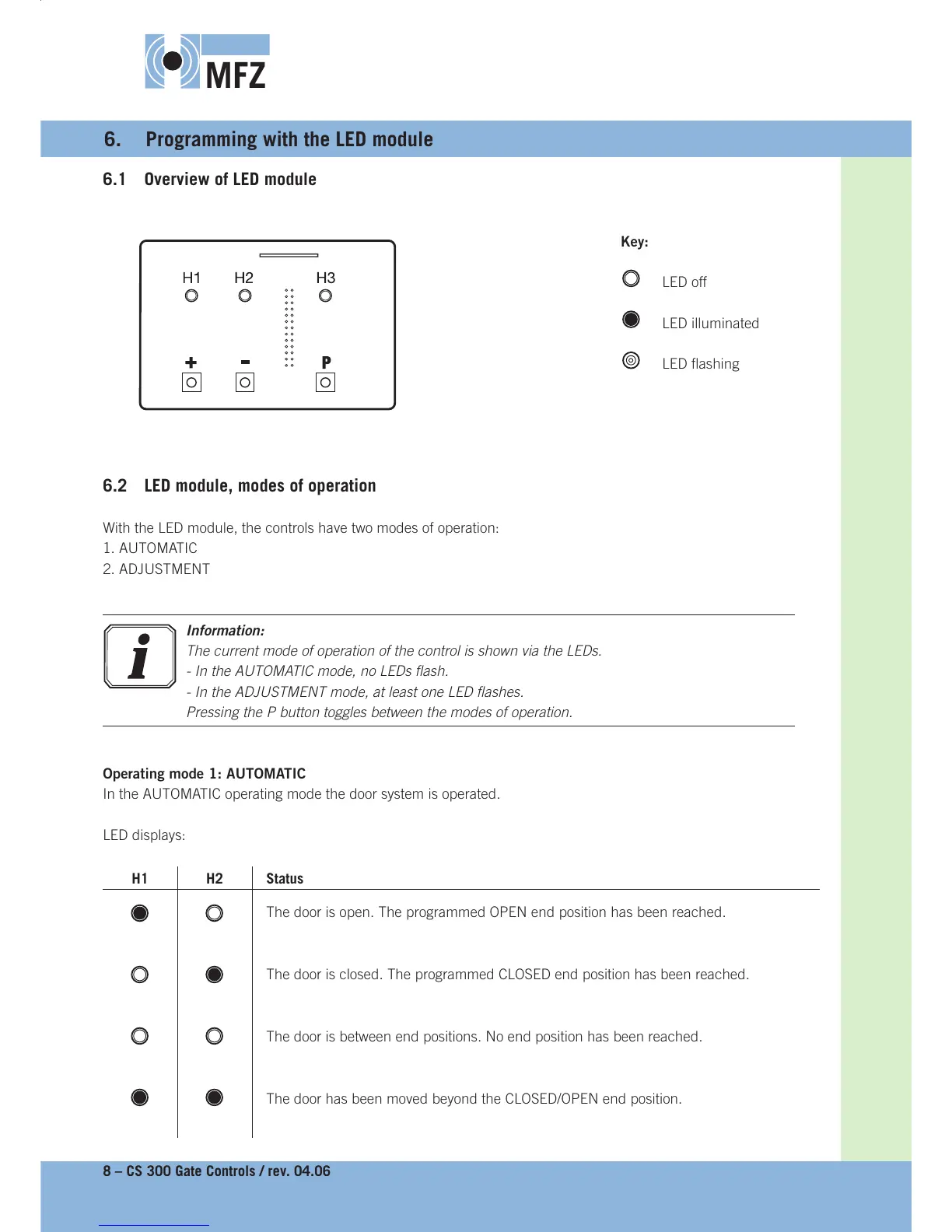

6.1 Overview of LED module6.1 Overview of LED module
Key:
LED off
LED illuminated
LED fl ashing
6. Programming with the LED module
6.2 LED module, modes of operation6.2 LED module, modes of operation
With the LED module, the controls have two modes of operation:
1. AUTOMATIC
2. ADJUSTMENT
Information:Information:
The current mode of operation of the control is shown via the LEDs.
- In the AUTOMATIC mode, no LEDs fl ash.
- In the ADJUSTMENT mode, at least one LED fl ashes.
Pressing the P button toggles between the modes of operation.
Operating mode 1: AUTOMATIC
In the AUTOMATIC operating mode the door system is operated.
LED displays:
H1 H2 Status
The door is open. The programmed OPEN end position has been reached.
The door is closed. The programmed CLOSED end position has been reached.
The door is between end positions. No end position has been reached.
The door has been moved beyond the CLOSED/OPEN end position.
