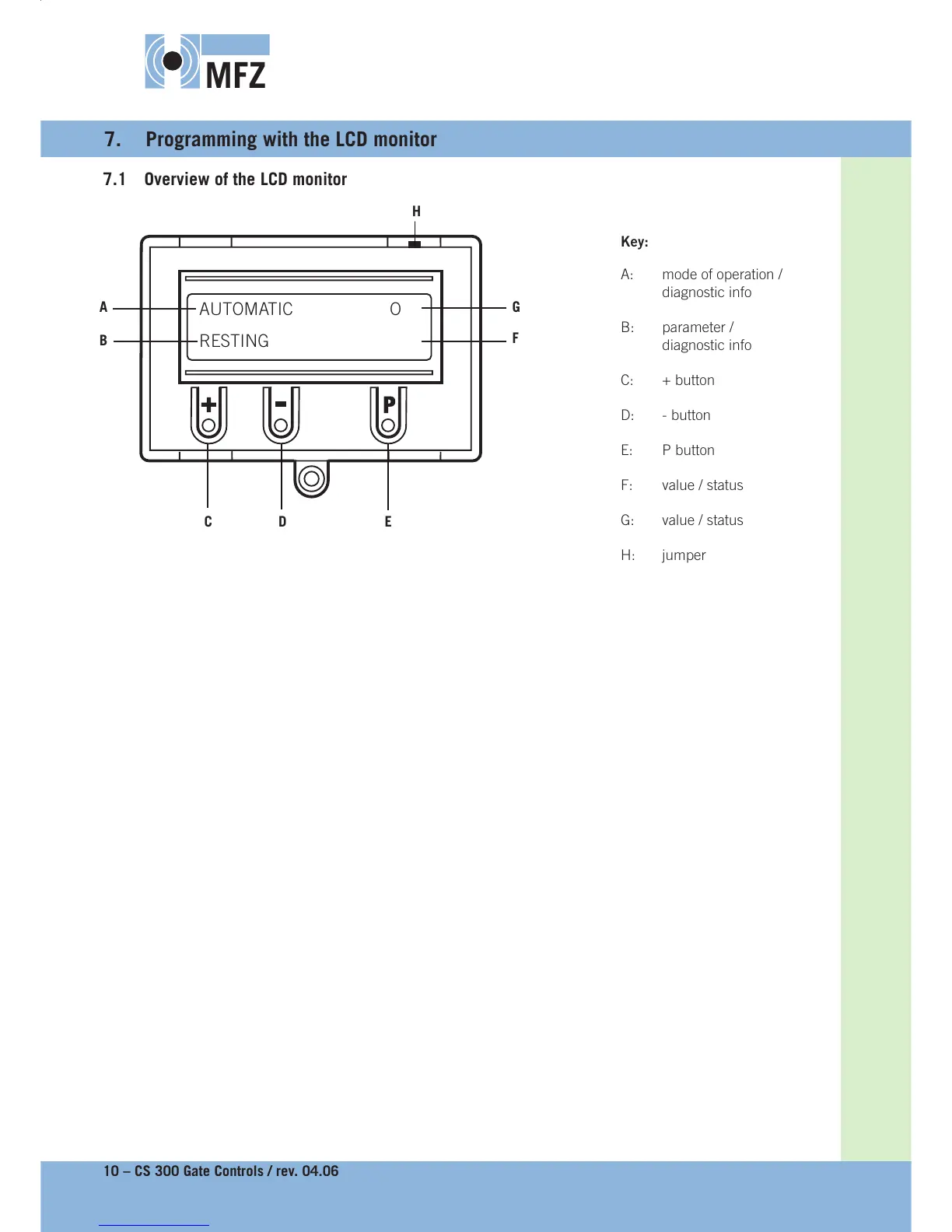

7.1 Overview of the LCD monitor7.1 Overview of the LCD monitor
7. Programming with the LCD monitor
A
B
CD E
F
G
AUTOMATIC O
RESTING
Key:
A: mode of operation /
diagnostic info
B: parameter /
diagnostic info
C: + button
D: - button
E: P button
F: value / status
G: value / status
H: jumper
H
