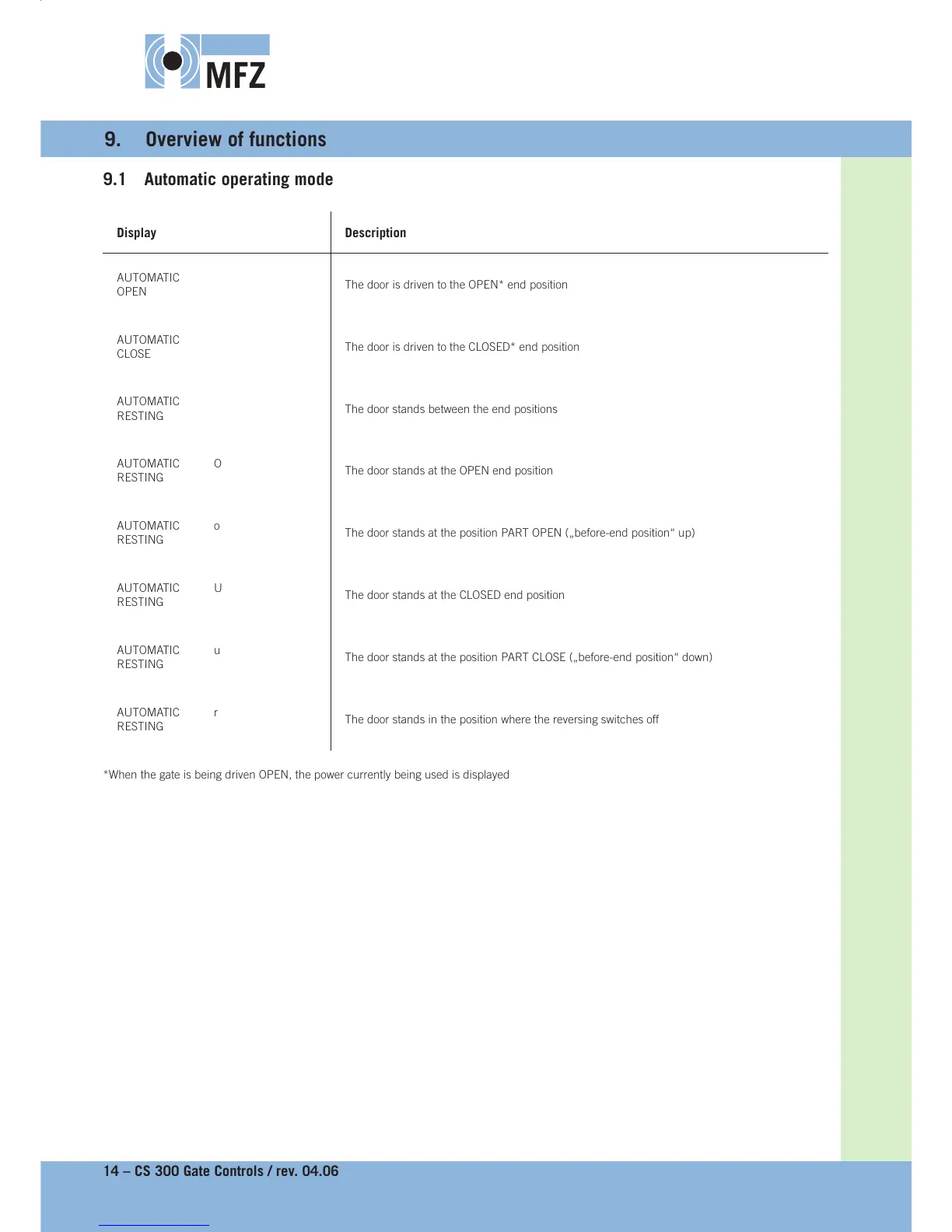

9. Overview of functions
9.1 Automatic operating mode
Display Description
AUTOMATIC
OPEN
The door is driven to the OPEN* end position
AUTOMATIC
CLOSE
The door is driven to the CLOSED* end position
AUTOMATIC
RESTING
The door stands between the end positions
AUTOMATIC O
RESTING
The door stands at the OPEN end position
AUTOMATIC o
RESTING
The door stands at the position PART OPEN („before-end position“ up)
AUTOMATIC U
RESTING
The door stands at the CLOSED end position
AUTOMATIC u
RESTING
The door stands at the position PART CLOSE („before-end position“ down)
AUTOMATIC r
RESTING
The door stands in the position where the reversing switches off
*When the gate is being driven OPEN, the power currently being used is displayed
