MFZ CS 300 - Input Operating Mode Parameters

MFZ
GB
CS 300 Gate Controls / rev. 04.06 - 15

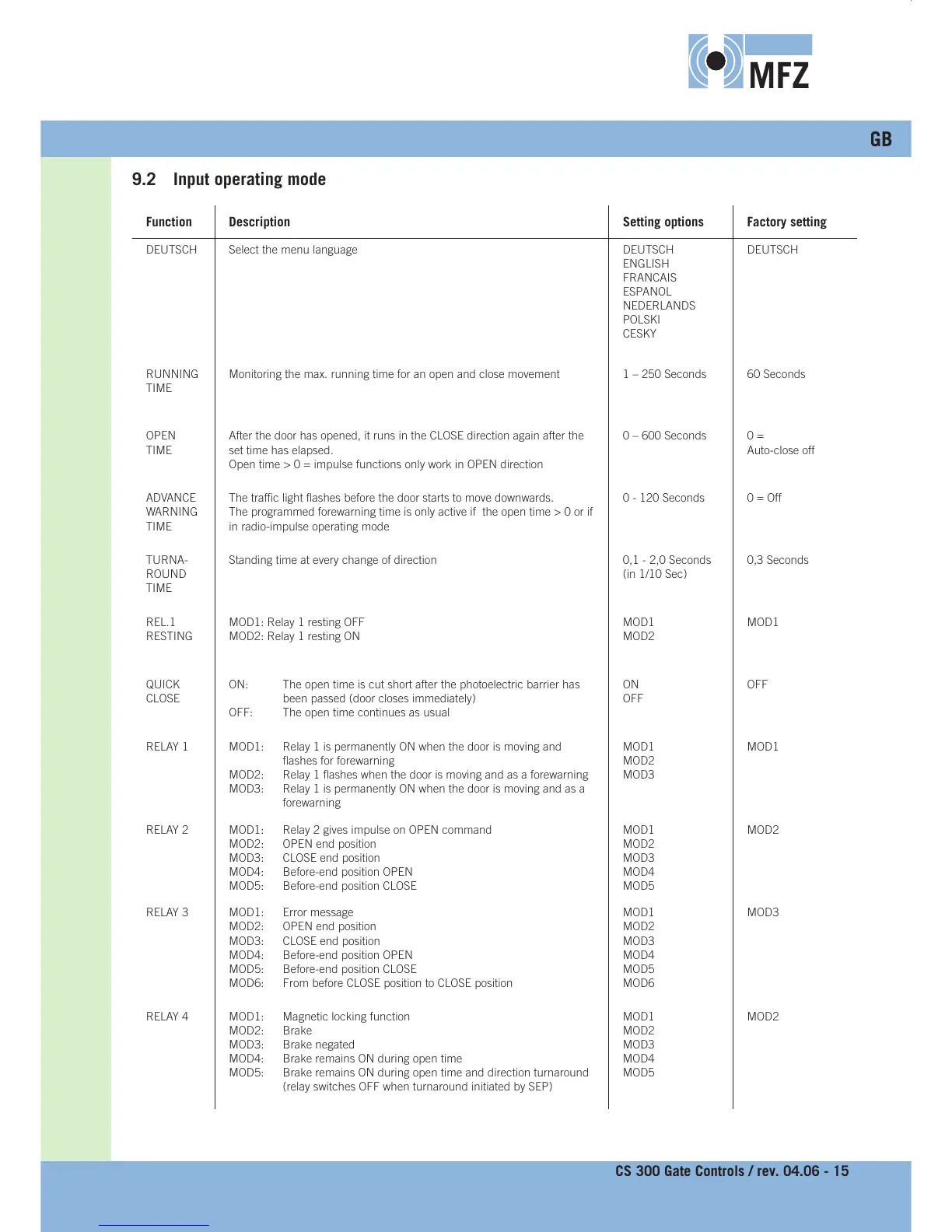

9.2 Input operating mode9.2 Input operating mode
Function Description Setting options Factory setting
DEUTSCH Select the menu language DEUTSCH
ENGLISH
FRANCAIS
ESPANOL
NEDERLANDS
POLSKI
CESKY
DEUTSCH
RUNNING
TIME
Monitoring the max. running time for an open and close movement 1 – 250 Seconds 60 Seconds
OPEN
TIME
After the door has opened, it runs in the CLOSE direction again after the
set time has elapsed.
Open time > 0 = impulse functions only work in OPEN direction
0 – 600 Seconds 0 =
Auto-close off
ADVANCE
WARNING
TIME
The traffi c light fl ashes before the door starts to move downwards.
The programmed forewarning time is only active if the open time > 0 or if
in radio-impulse operating mode
0 - 120 Seconds 0 = Off
TURNA-
ROUND
TIME
Standing time at every change of direction 0,1 - 2,0 Seconds
(in 1/10 Sec)
0,3 Seconds
REL.1
RESTING
MOD1: Relay 1 resting OFF
MOD2: Relay 1 resting ON
MOD1
MOD2
MOD1
QUICK
CLOSE
ON: The open time is cut short after the photoelectric barrier has
been passed (door closes immediately)
OFF: The open time continues as usual
ON
OFF
OFF
RELAY 1 MOD1: Relay 1 is permanently ON when the door is moving and
fl ashes for forewarning
MOD2: Relay 1 fl ashes when the door is moving and as a forewarning
MOD3: Relay 1 is permanently ON when the door is moving and as a
forewarning
MOD1
MOD2
MOD3
MOD1
RELAY 2 MOD1: Relay 2 gives impulse on OPEN command
MOD2: OPEN end position
MOD3: CLOSE end position
MOD4: Before-end position OPEN
MOD5: Before-end position CLOSE
MOD1
MOD2
MOD3
MOD4
MOD5
MOD2
RELAY 3 MOD1: Error message
MOD2: OPEN end position
MOD3: CLOSE end position
MOD4: Before-end position OPEN
MOD5: Before-end position CLOSE
MOD6: From before CLOSE position to CLOSE position
MOD1
MOD2
MOD3
MOD4
MOD5
MOD6
MOD3
RELAY 4 MOD1: Magnetic locking function
MOD2: Brake
MOD3: Brake negated
MOD4: Brake remains ON during open time
MOD5: Brake remains ON during open time and direction turnaround
(relay switches OFF when turnaround initiated by SEP)
MOD1
MOD2
MOD3
MOD4
MOD5
MOD2
