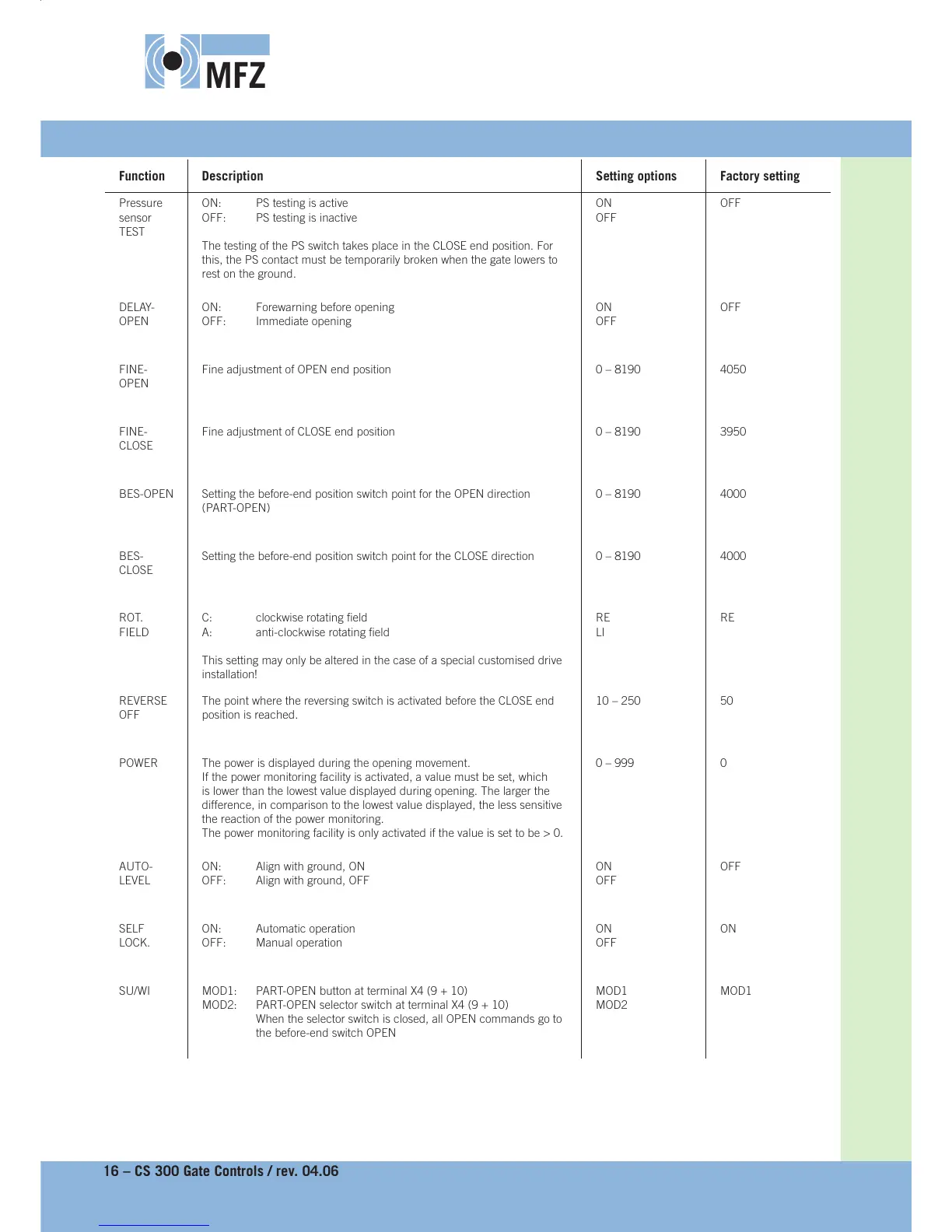

16 – CS 300 Gate Controls / rev. 04.06
Function Description Setting options Factory setting
Pressure
sensor
TEST
ON: PS testing is active
OFF: PS testing is inactive
The testing of the PS switch takes place in the CLOSE end position. For
this, the PS contact must be temporarily broken when the gate lowers to
rest on the ground.
ON
OFF
OFF
DELAY-
OPEN
ON: Forewarning before opening
OFF: Immediate opening
ON
OFF
OFF
FINE-
OPEN
Fine adjustment of OPEN end position 0 – 8190 4050
FINE-
CLOSE
Fine adjustment of CLOSE end position 0 – 8190 3950
BES-OPEN Setting the before-end position switch point for the OPEN direction
(PART-OPEN)
0 – 8190 4000
BES-
CLOSE
Setting the before-end position switch point for the CLOSE direction 0 – 8190 4000
ROT.
FIELD
C: clockwise rotating fi eld
A: anti-clockwise rotating fi eld
This setting may only be altered in the case of a special customised drive
installation!
RE
LI
RE
REVERSE
OFF
The point where the reversing switch is activated before the CLOSE end
position is reached.
10 – 250 50
POWER The power is displayed during the opening movement.
If the power monitoring facility is activated, a value must be set, which
is lower than the lowest value displayed during opening. The larger the
difference, in comparison to the lowest value displayed, the less sensitive
the reaction of the power monitoring.
The power monitoring facility is only activated if the value is set to be > 0.
0 – 999 0
AUTO-
LEVEL
ON: Align with ground, ON
OFF: Align with ground, OFF
ON
OFF
OFF
SELF
LOCK.
ON: Automatic operation
OFF: Manual operation
ON
OFF
ON
SU/WI MOD1: PART-OPEN button at terminal X4 (9 + 10)
MOD2: PART-OPEN selector switch at terminal X4 (9 + 10)
When the selector switch is closed, all OPEN commands go to
the before-end switch OPEN
MOD1
MOD2
MOD1
