CS 300 Gate Controls / rev. 04.06 - 17

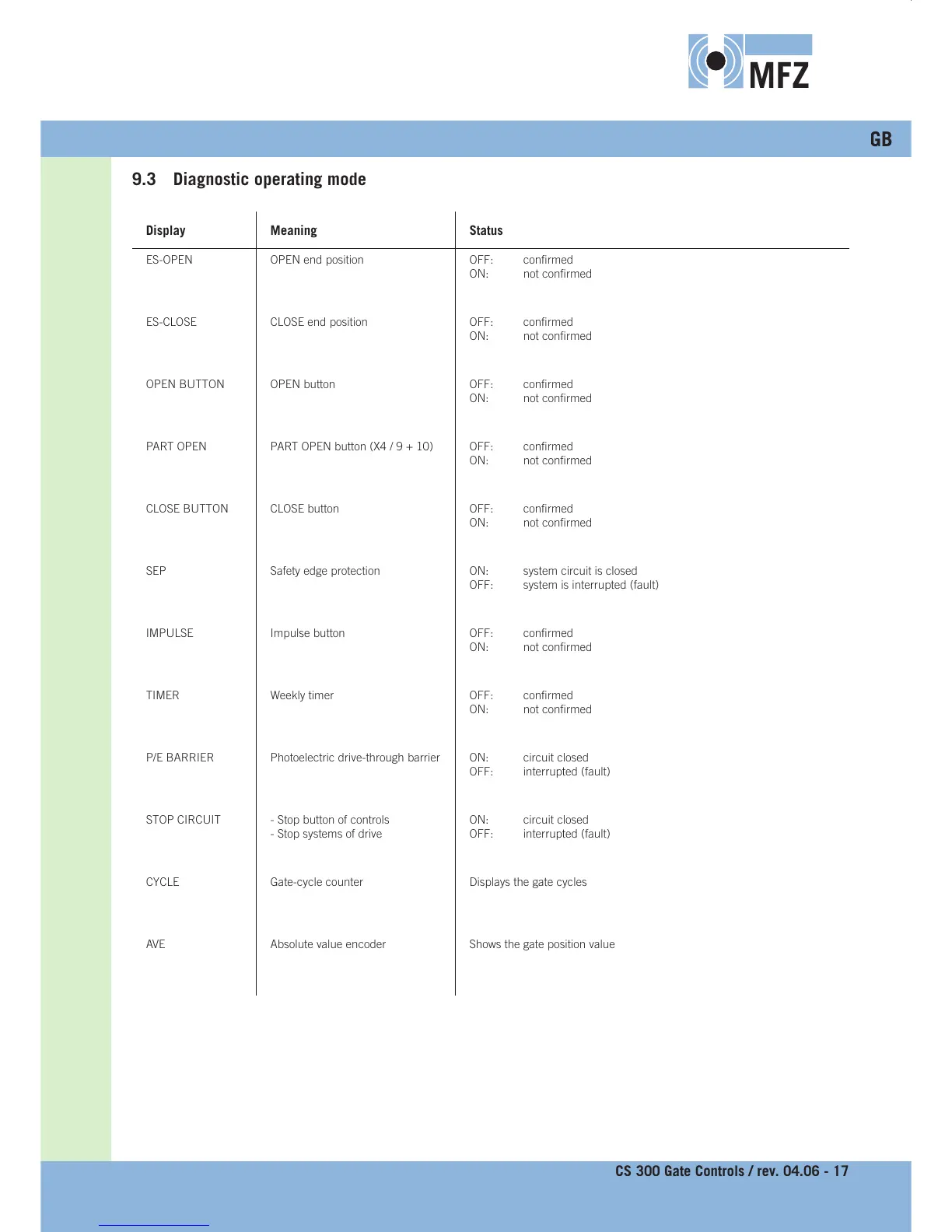

9.3 Diagnostic operating mode
Display Meaning Status
ES-OPEN OPEN end position OFF: confi rmed
ON: not confi rmed
ES-CLOSE CLOSE end position OFF: confi rmed
ON: not confi rmed
OPEN BUTTON OPEN button OFF: confi rmed
ON: not confi rmed
PART OPEN PART OPEN button (X4 / 9 + 10) OFF: confi rmed
ON: not confi rmed
CLOSE BUTTON CLOSE button OFF: confi rmed
ON: not confi rmed
SEP Safety edge protection ON: system circuit is closed
OFF: system is interrupted (fault)
IMPULSE Impulse button OFF: confi rmed
ON: not confi rmed
TIMER Weekly timer OFF: confi rmed
ON: not confi rmed
P/E BARRIER Photoelectric drive-through barrier ON: circuit closed
OFF: interrupted (fault)
STOP CIRCUIT - Stop button of controls
- Stop systems of drive
ON: circuit closed
OFF: interrupted (fault)
CYCLE Gate-cycle counter Displays the gate cycles
AVE Absolute value encoder Shows the gate position value
