1. Presentation

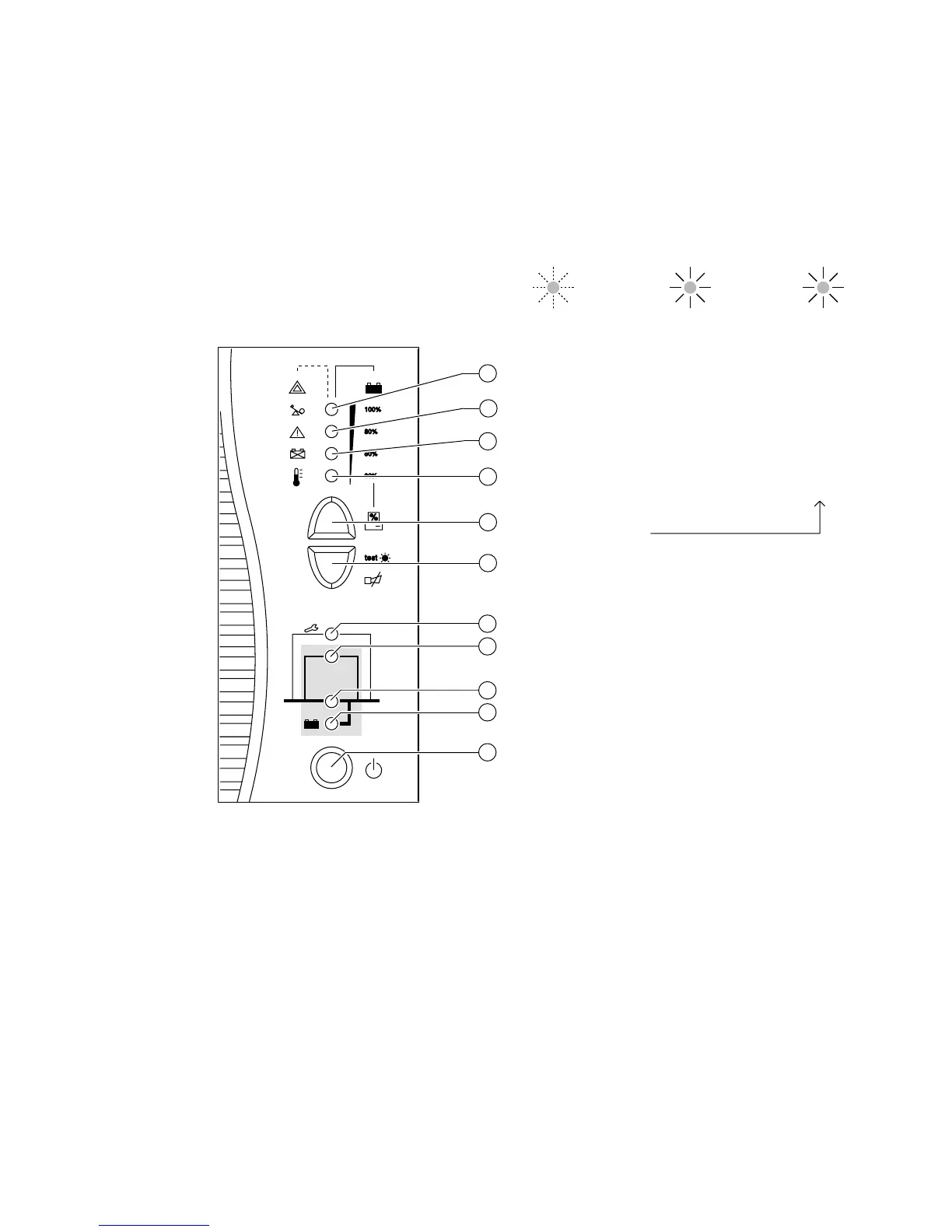

1.5 Control panel
Alarms
UPS overload
Electronics fault
Battery fault
Ambient temp.
> 40°C
Hold down to display
percent load.
Lamp test or buzzer OFF.
Operation on manual bypass.
Operation on automatic bypass.
Operation in ON-LINE mode.
Operation on battery power.
ON/OFF.
% battery
remaining
100%
80%
50%
20%
% load
100%
80%
50%
20%
15
16
17
18
19
14
20
21
22
23
24
bypass
