Reagent compartment
The reagent compartments include the sequencing cartridge
compartments and washing cartridge compartments. The system
automatically identifies the QR code of the reagent cartridges by
built-in RFID readers.
2
1
A B C D
A B C D

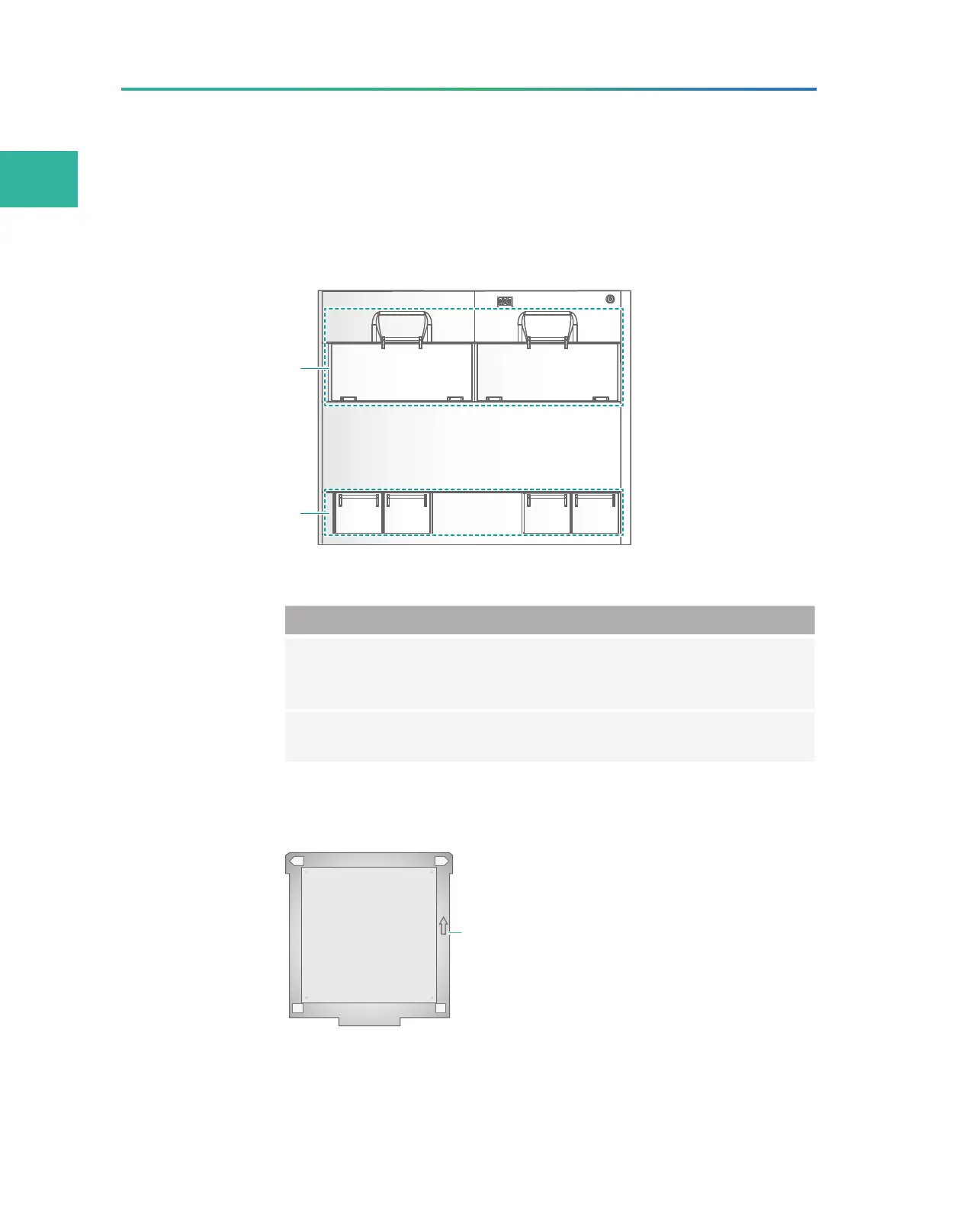

Figure 5 Reagent compartment
No. Name Description
1
Sequencing
cartridge
compartment
Holds the sequencing cartridges at
appropriate temperatures.
2
Washing cartridge
compartment
Holds the washing cartridges.
Flow cell
IN
1
Figure 6 Flow cell
