Blaze EMS-2 Operating Manual Page 36
The Blaze EMS-2 must be setup as follows:
RPM 1:
PULSES/REV: 1.0
RPM 2 / Fuel Flow:
MODE: FUEL FLOW
K-FACTOR 1: 3500
MODE: FF SENDER
Manifold Air Pressure:
No change needed
Oil Pressure (Analog Channel 1):
FUNCTION: PRESSURE
TYPE: RESISTIVE
SENDER: USER
CALIBRATE SENDER:
POINTS: 2
DISPLAY 1: 0.0 bar
ADC 1: 0000
DISPLAY 2: 10.0 bar
ADC 2: 4095
Oil Temperature (Analog Channel 2):
FUNCTION: TEMP
SENDER: LM335
LM335: 0
Coolant Temperature (Analog Channel 3):
FUNCTION: TEMP
SENDER: LM335
LM335: 0
EGT 1,2,3,4
EGT CHANNELS: 4
Throttle Position:
0-100% is displayed as a bar graph
Engine Ambient Pressure:
This can be viewed in the Engine Info display screen
Fuel Level sender (Analog Channel 4):
This is setup as normal in the analog setup menu
DC current input:
This is setup as normal in the current setup menu.

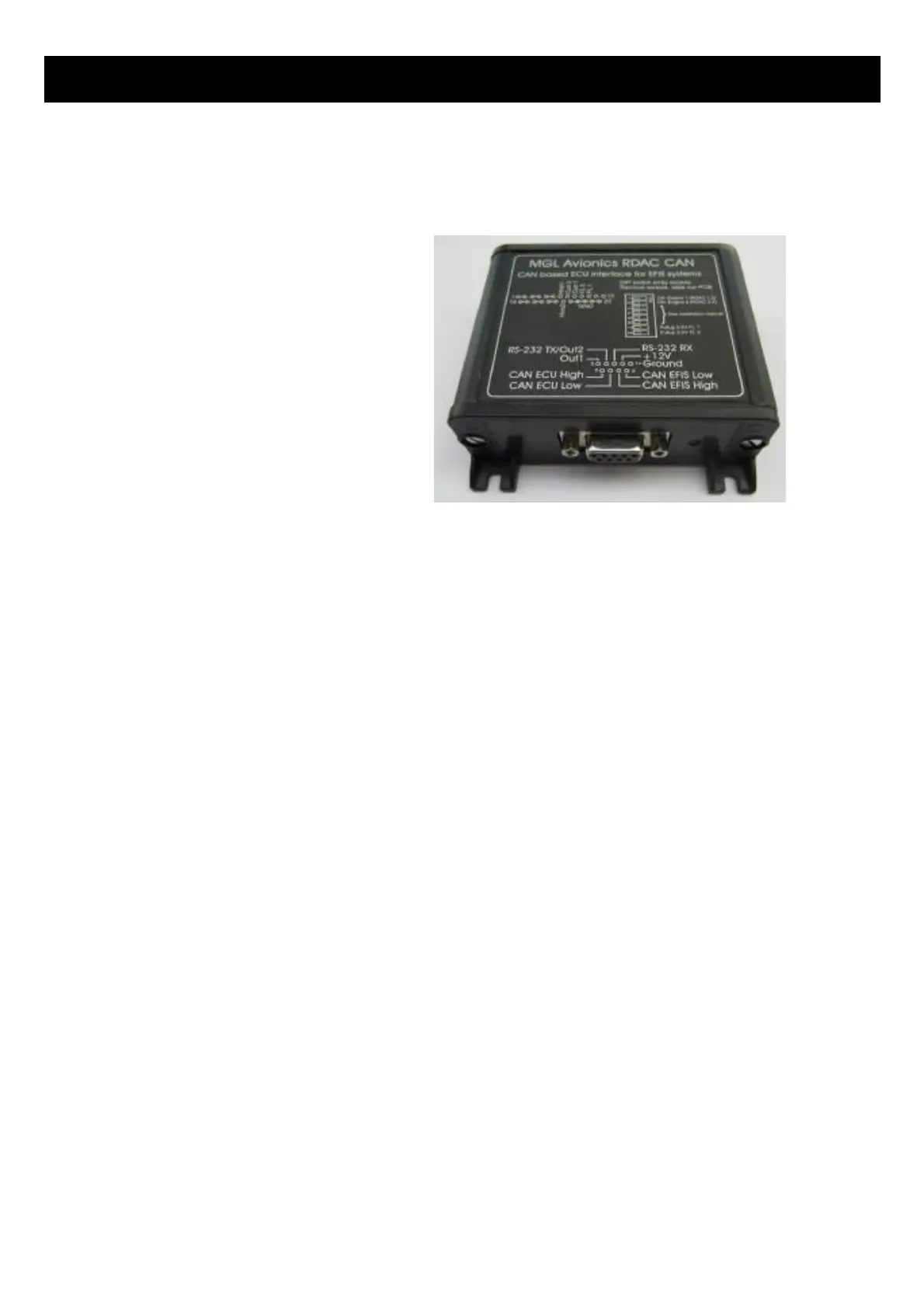

Please see the RDAC-CAN documentation for installation and usage.
