Mhouse GD1 - 2 Product Description; Applications; Description of the Automation

4 Instructions GD1-GD10

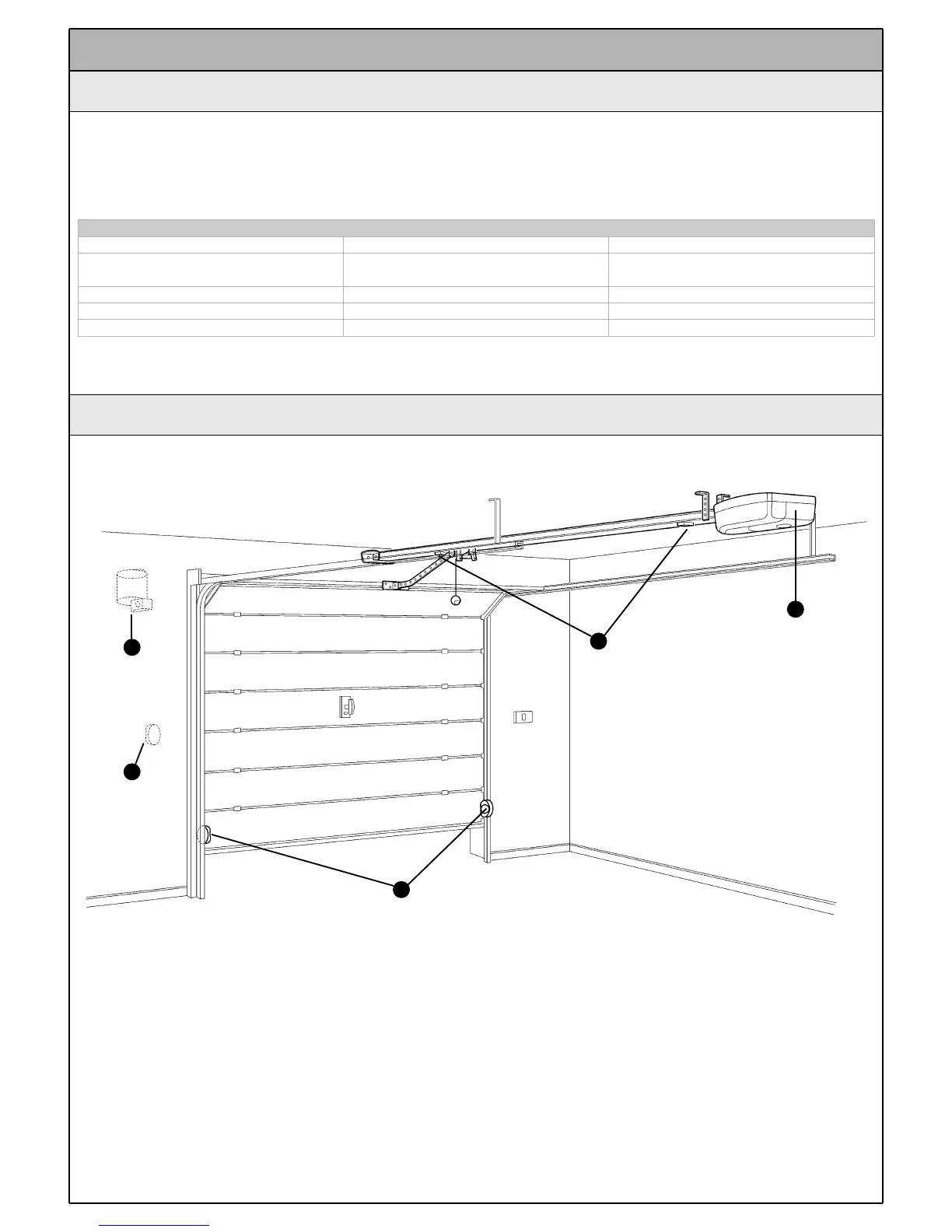

To clarify a few terms and aspects of a sectional or up-and-over door automation system: In Figure 1 we provide an example of a typical GD1 and
GD10 application:
[A] FL1 flashing light with incorporated aerial (optional)
[B] KS1 key-operated selector switch (optional)
[C] Pair of PH1 photocells (optional)
[D] Mechanical stops
[E] GD1K and GD10K gearmotors
2.2 Description of the automation
A
B
Figure 1
2 Product description
2.1 Applications
GD is a set of components designed for the automation of sectional or
up-and-over doors in residential applications.
Any applications other than those described above or under dif-
ferent conditions from those specified in this manual are forbid-
den.
GD operates with electric power. In the event of a power failure, the gear-
motor can be released using a suitable cord in order to move the door
manually.
As an alternative, the optional accessory can be used on the GD10 mod-
el: PR1 buffer battery.
E
D
C
Table 1: comparison of main features of the GD gearmotor
Gearmotor type
Maximum torque
(corresponding to the maximum force)
Max. No. of ECSBus units
Emergency power supply
Guide length
GD1
10.8Nm (600N)
1
No
3x1m
GD10
18Nm (1000N)
6
with PR1
4x1m
