3.1.1 Operating limits
3.1.2 Tools and Materials

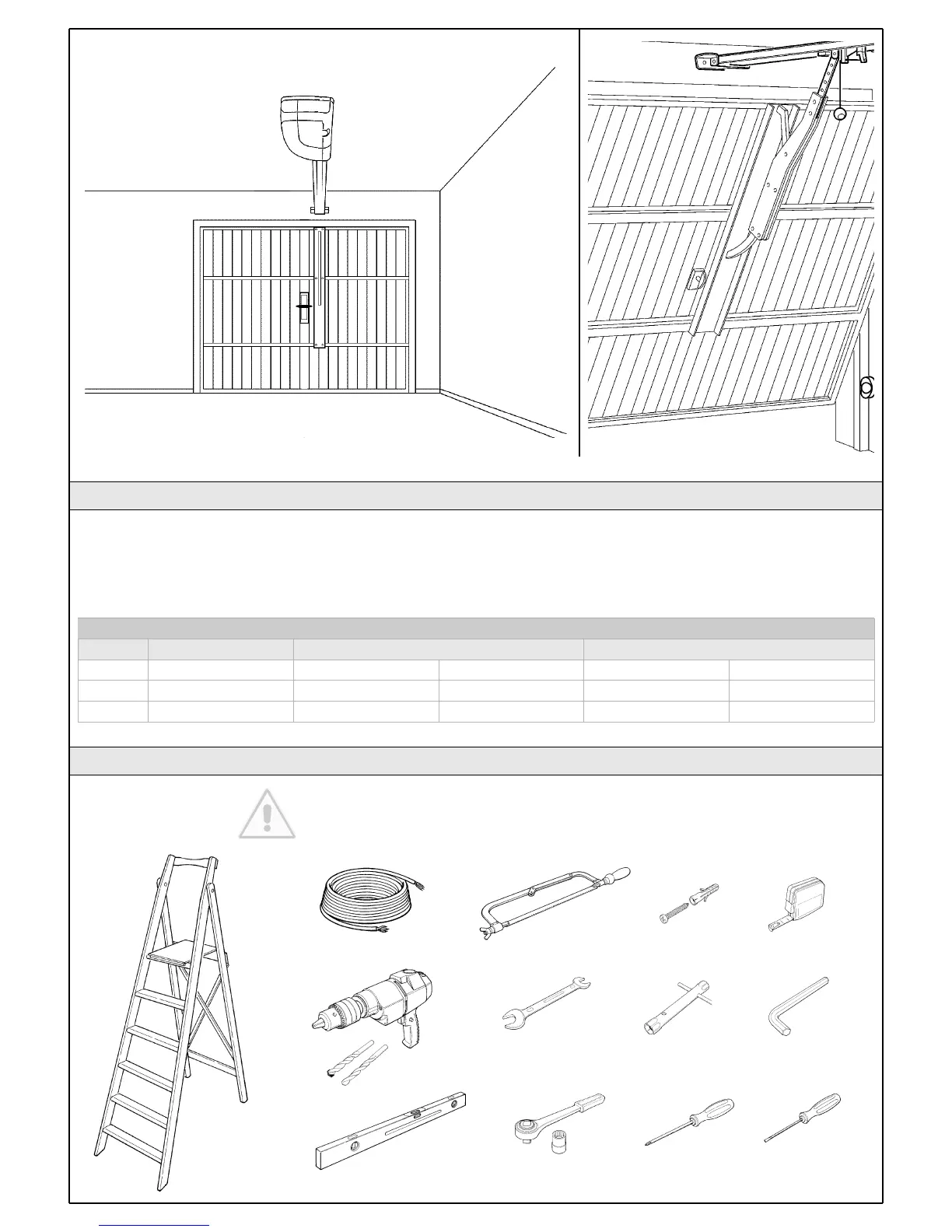

Figure 12
Figure 11
Chapter 6 “Technical Characteristics” provides the fundamental data
needed to determine whether all the GD1 and GD10 components are
suitable for the intended application.
In general the GD1 and GD10 are suitable for the automation of section-
al and up-and-over doors for residential applications having the values
shown in the table.
The shape of the door and the climatic conditions (e.g. presence of
strong wind) may reduce this maximum limit. In this case it is necessary
to measure the torque needed to move the door under the worst condi-
tions, and to compare it to the data provided in the technical character-
istics chart for the GD gearmotor.
Make sure you have all the tools and materials needed to install
the system; make sure that they are in good condition and serv-
iceable according to current safety standards. See examples in
figure 12.
Model
GD1
GD10
600N
1000N
2.4m
3.5m
3.5m
5m
2.4m
3.5m
3.5m
Height Width Height Width
3m
Maximum power UP-AND-OVER door (with GA1 accessories) SECTIONAL door
Table 7
