Mhouse GD1 - Description of Devices; GD1 K and GD10 K Electromechanical Gearmotor

Instructions GD1-GD10 5

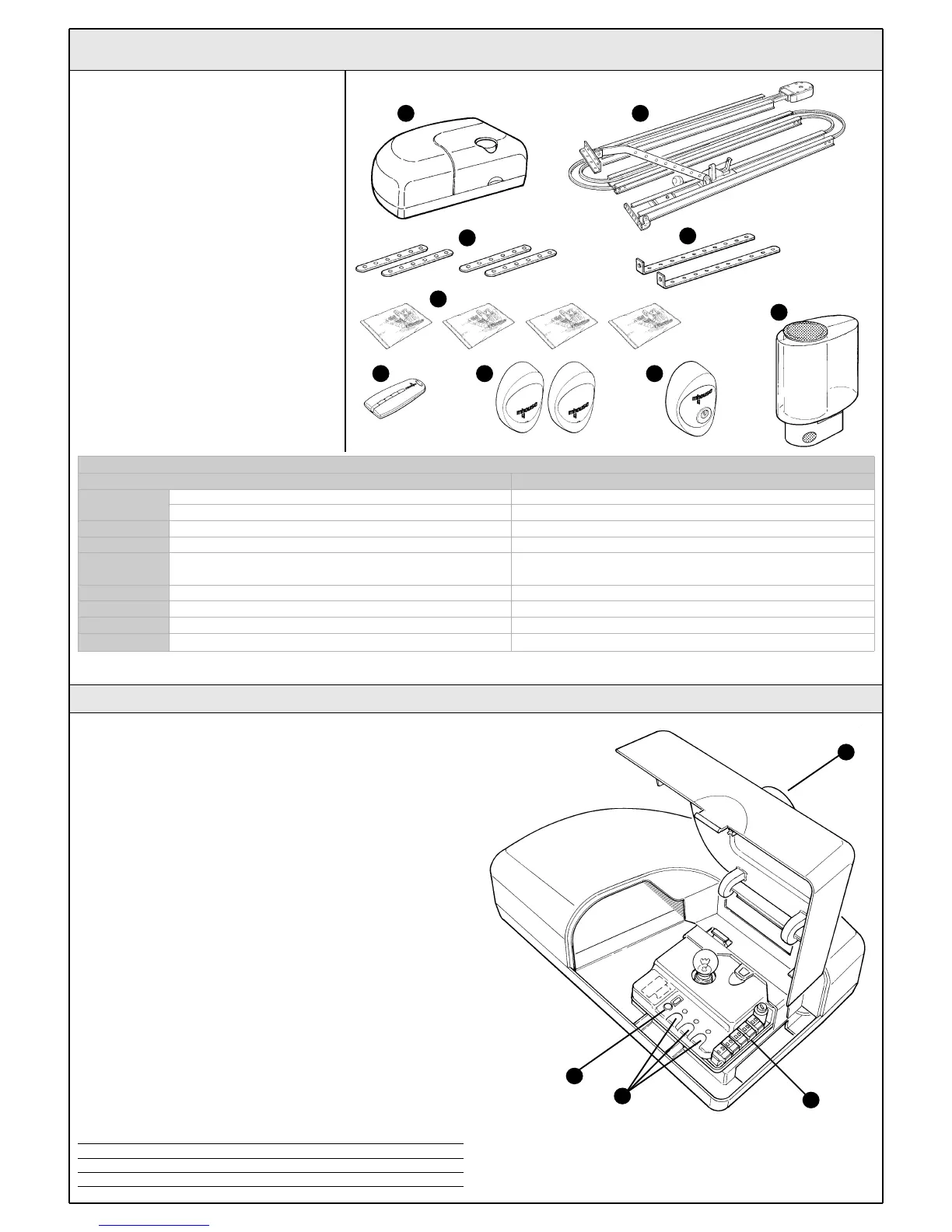

GD1 and GD10 can be made-up of the devices
shown in Fig. 2 make immediately sure that they
correspond to the contents of the package and
verify the integrity of the devices.
Note: to adapt GD1 and GD10 to local regula-
tions, the contents of the package may vary; an
exact list of the contents is shown on the outside
of the package under the “Mhousekit GD1 con-
tains” and “Mhousekit GD10 contains” heading.
2.3 Description of devices
GD1K and GD10K are electromechanical gearmotors made up of a
24Vdc motor. It features a mechanical release mechanism with cord that
allows you to move the door manually in the event of a power failure. The
gearmotor is fixed to the ceiling with the relative mounting brackets. The
PR1 buffer battery can be used on the GD10 version, which allows some
manoeuvres in the absence of the mains power supply.
The control unit actuates the gearmotors and provides for the control of
the supply of the different components; it features an electronic board
with incorporated radio receiver.
The control unit can actuate the gearmotor with two speeds: “slow” and
“fast”.
The three P1, P2 and P3 buttons [B] and the corresponding LED's are
used to program the control unit.
The yellow button [C] allows the door to be controlled during testing. The
same key will also be operated during daily use, through the incorporat-
ed orange button [D].
To facilitate the electrical connections there are separate terminals for
each device [A], which are removable and colour-coded based on the
function performed. Next to each input terminal there is a LED that sig-
nals its status
The connection to the power supply is very easy: just insert the plug in a
power outlet.
Table 3: List of small parts GD1K GD10K
M6 self-tapping nuts 18 pcs 26 pcs
M6 x15 screws 18 pcs 26 pcs
6.3x45 tcei screws 4 pcs 4 pcs
2.3.1 GD1K and GD10K Electromechanical Gearmotor
Figure 3
Figure 2
A B
D
A
F G H
I
C
D
E
C
B
Table 2: Component and accessories list
Reference GD1 GD10
A
B
C
D
E
F
G
H
I
1 GD1K electromechanical gearmotor with incorporated control unit.
1 3-metre guide with pre-assembled belt.
4 coupling profiles
2 ceiling-mounted brackets
Miscellaneous small parts: screws, washers, etc. see tables 1, 2,
3 and 4 (*).
1 TX4 radio transmitter.
PH1 pair of wall-mounted photocells
KS1 key-operated selector switch
FL1 flashing light with incorporated aerial.
1 GD10K electromechanical gearmotor with incorporated control unit.
1 4-metre guide with pre-assembled belt.
6 coupling profiles
2 ceiling-mounted brackets
Miscellaneous small parts: screws, washers, etc. see tables 1, 2, 3
and 4 (*).
1 TX4 radio transmitter.
PH1 pair of wall-mounted photocells
KS1 key-operated selector switch
FL1 flashing light with incorporated aerial.
* The screws required for mounting GD1 and GD10 are not supplied as they depend on the type of material and its thickness.
