CASING ASSEMBLY2.12
The casing of REGENCY 4 MODULEK boilers is supplied in a separate carton, in order to
avoid any damage during transport.

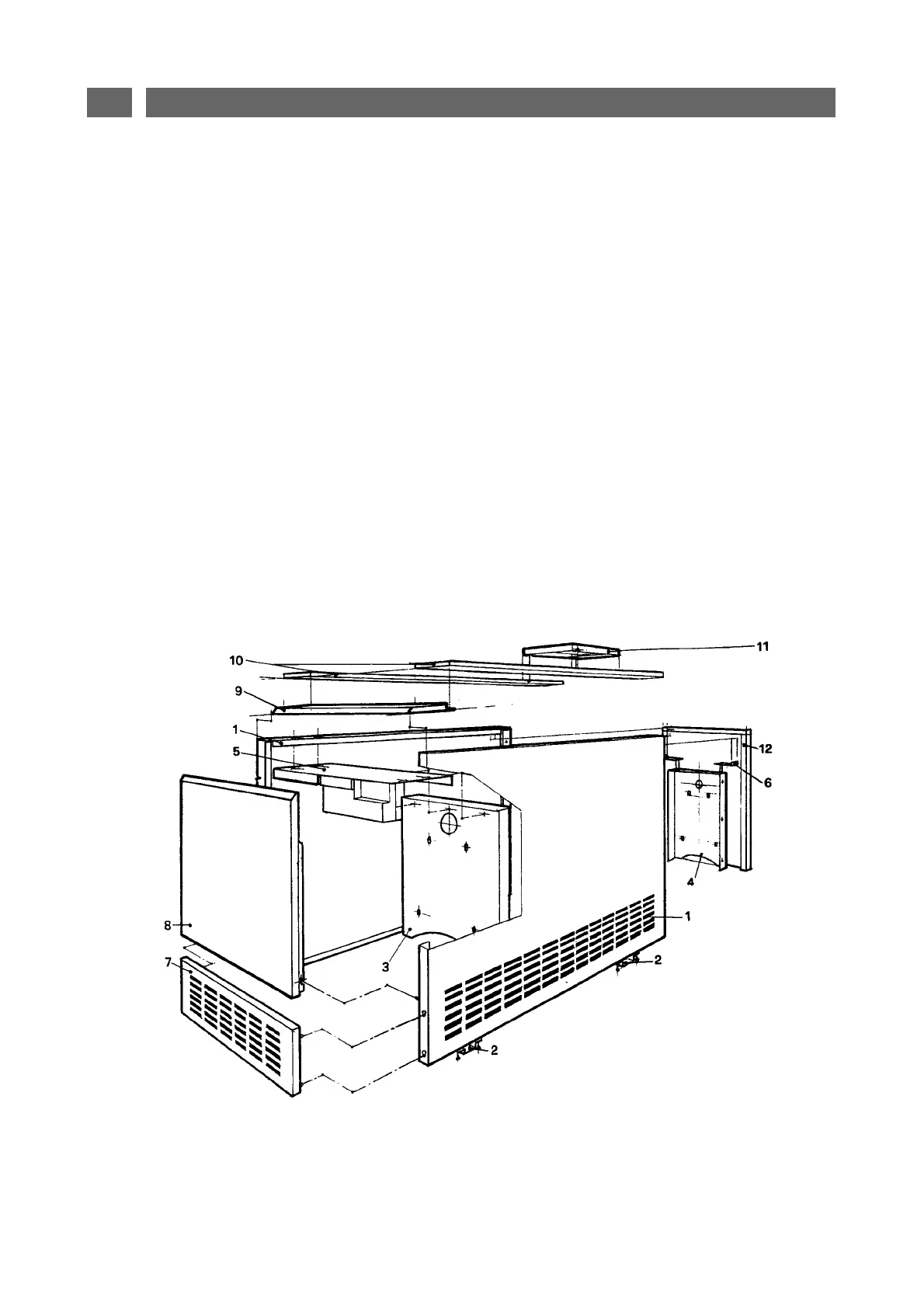

Assemble the casing in the following manner:
- secure the rear brackets (6) to the rear apron (4) using the rear screws M 5 provided and
keeping up the short part of the bracket.
- secure the feet (2) to the side panels (1)
- locate the side panels (1) on the cast iron block and secure by hooking the internal fold
to the brackets (6)
- secure the link side panel to the front fixing bracket (5) using the screws F 4,2 x 9,5 (pro-
vided)
- secure the right side panel to the front fixing bracket (5) using the two self-tapping
screws which provisionally held the facia panel to the bracket (5)
- hook the bottom panel (7) to the side panels
- hook the rear panel (12) to the side panels
- locate the front top panel (9) and the side panels
- locate the insert (11): use the one most suitable, discard the other
- assemble the swinging door.
- VERY IMPORTANT: Attatch self adhesive boiler data badge (supplied in instructions
envelope) to the front inner apron (3).
22
