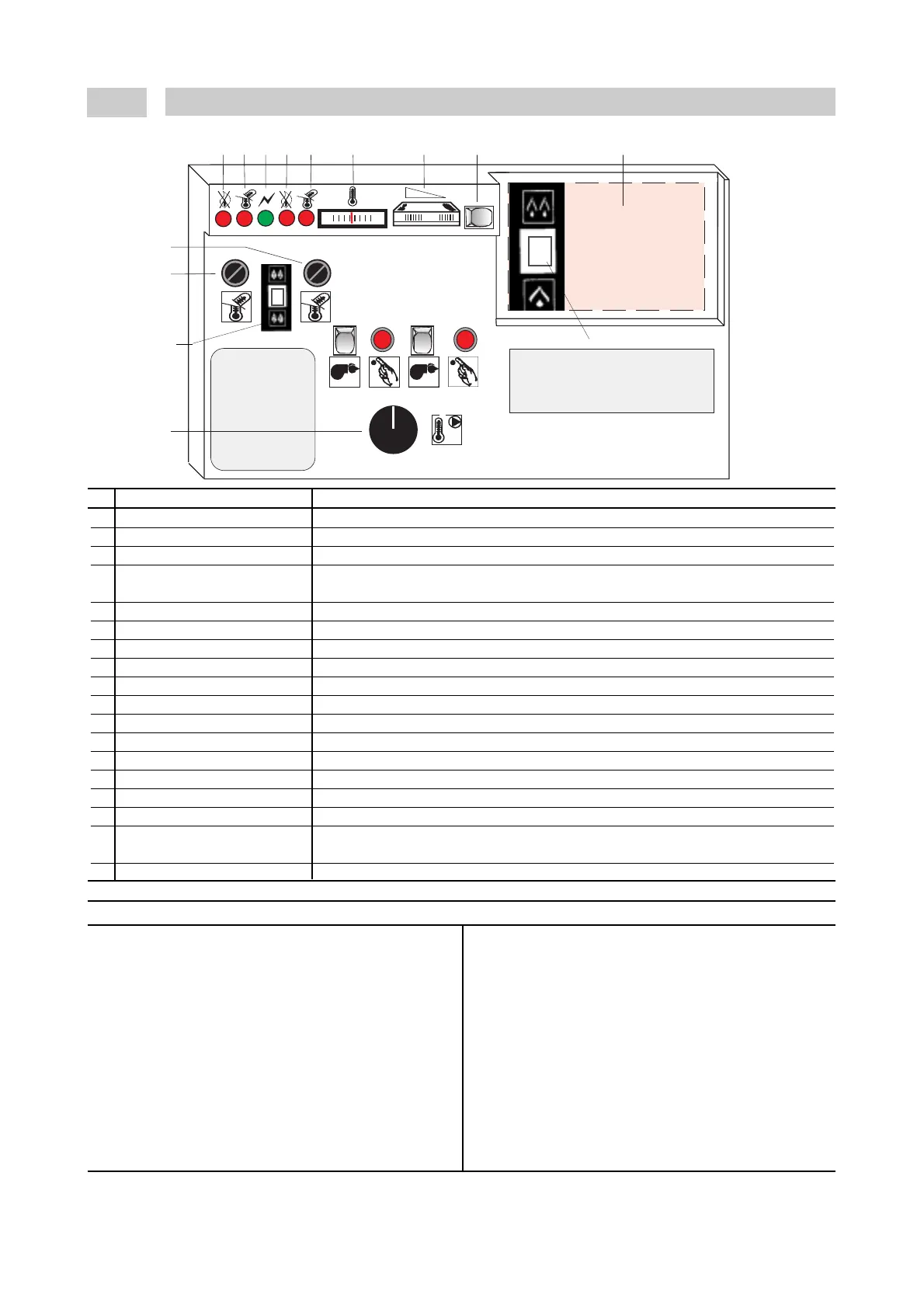

CONTROL PANEL
1.6.2
No. DESCRIPTION FUNCTION
1 RED LAMP FOR “TRIPPED” INDICATION OF IONISATION CONTROL (front burner assembly)
2 RED LAMP FOR “TRIPPED” INDICATION OF HIGH LIMIT THERMOSTAT (front burner assembly)
3 RED LAMP FOR EL. SUPPLYFOR INDICATION OF 220V VOLTAGE INTO THE BOILER
4 RED LAMP FOR “TRIPPED” INDICATION OF IONISATION
CONTROL (rear burner assembly)
5 RED LAMP FOR “TRIPPED” INDICATION OF HIGH LIMIT THERMOSTAT (rear burner assembly)
6 BOILER THERMOMETER FOR CHECKING BOILER WATER TEMPERATURE
7 BOILER THERMOSTAT FOR REGULATING BOILER WATER TEMPERATURE
8 MAIN SWITCH FOR ON/OFF OPERATION
9 KNOCKOUT FOR OPTIONAL CLIMATIC CONTROLLER
10 SAFETY THERMOSTAT RESET FOR RESETTING THE FRONT SAFETY HIGH LIMIT THERMOSTAT
11 SAFETY THERMOSTAT RESET FOR RESETTING THE REAR SAFETY HIGH LIMIT THERMOSTAT
12 FRONT BURNER SWITCH FOR ON/OFF OPERATION OF FRONT BURNER
13 IONISATION RESET BUTTON FOR RESETTING THE FRONT IONISATION CONTROL
14 REAR BURNER SWITCH FOR ON/OFF OPERATION OF REAR BURNER
15 IONISATION RESET BUTTON FOR RESETTING THE REAR IONISATION CONTROL
16 PUMP OVERRUN CONTROL TO PREVENT NUISANCE OVERHEAT TRIP
17 BUTTON FOR ON/OFF OR TO CHOOSE THE OPERATING MODE OF THE BOILER
TWO STEPS MODE
18 BURNER SELECTOR TO CHOOSE THE FIRING BURNER
7
COMPONENTS OF THE CONTROL PANEL
1249059 COMPLETE CONTROL PANEL 8562810 BOILER THERMOSTAT
1872202 PANEL FRONT PLASTIC COVER 8562862 THERMOMETER
1872200 PANEL REAR PLASTIC COVER 8572525 CONTROL FLAME RESET
8584747 HINGE 4x40 FOR COVER 8572539 RED LENS ø 6
1272503 P.C.B. 8572540 GREEN LENS ø 6
1871700 THERMOSTAT KNOB 8572541 RED LAMP
1872207 PLASTIC CABLE CLAMP 8572542 GREEN LAMP
1272501 FLAME CONTROLLER 8572543 BIPOLAR SWITCH
1672704 FILTER 8562804 OVERRUN RELAY
8562705 LIMIT THERMOSTAT 100°C 230V 8572561 BURNER/BOILER MODE
SELECTOR
>Main supply cable: ref. No. 1272502. When cable has to be replaced, ask for original spare part.
