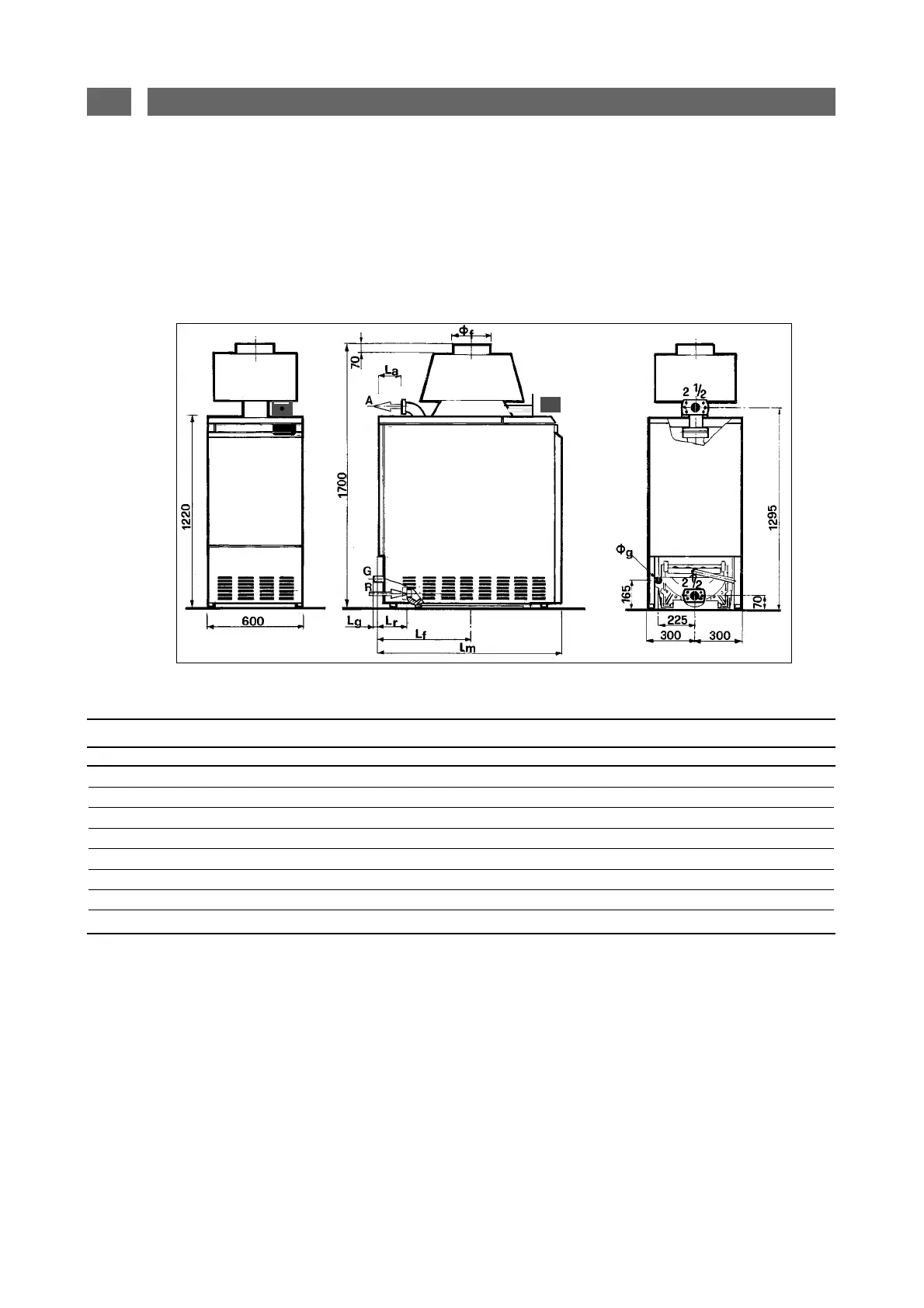

1.3 DIMENSIONAL DRAWINGS AND LIST
2
BOILER MODEL Øf Øg La Lf Lg Lm Lr
mm mm mm mm mm mm
Regency 4/152 9 sect. 300 R 1 1/4” 260 760 75 1450 310
Regency 4/169 10 sect. 300 R 1 1/4” 160 710 75 1450 210
Regency 4/186 11 sect. 300 R 1 1/4” 260 860 75 1650 310
Regency 4/203 12 sect. 300 R 1 1/4” 160 810 75 1650 210
Regency 4/220 13 sect. 300 R 1 1/4” 260 960 75 1850 310
Regency 4/237 14 sect. 350 R 1 1/4” 160 910 75 1850 210
Regency 4/255 15 sect. 350 R 1 1/4” 260 1060 75 2050 310
Regency 4/272 16 sect. 350 R 1 1/4” 160 1010 75 2050 210
