MHSC WEF33 - Replacing.heater;Blower

68D5301
11
6. Follow Steps 3 through 5 of 'Replacing Log'.
• Replacing Heater/Blower
1. Follow Steps 1 through 4 of 'Cleaning Firebox'.
. Remove screws from around top panel of rebox. Figure 12
3. There are several wires attached to the top panel. Carefully lift top panel.
4. Disconnect heater/blower wires from main circuit board.
5. Remove screws holding heater/blower to top panel. Figure 12
6. Remove brackets from heater/blower. Figure 13. Save brackets and screws.
7. To remove heater from blower, remove four (4) screws ( per side).
8. If replacing blower, remove screws from brackets on blower. Figure 13. Install
brackets to new blower.
9. Replace blower or heater. Replace screws removed in Step 7.
10. Hold heater/blower with brackets in place against top panel and replace screws
removed in Step 5.
11. Reconnect wires to main circuit board. Figure 15 or 16
1. Replace glass with brackets and top panel.
13. Replace trim.
FP2396
remove top panel
Screws Securing
Heater/ Blower
Top Panel
Screws
FP396

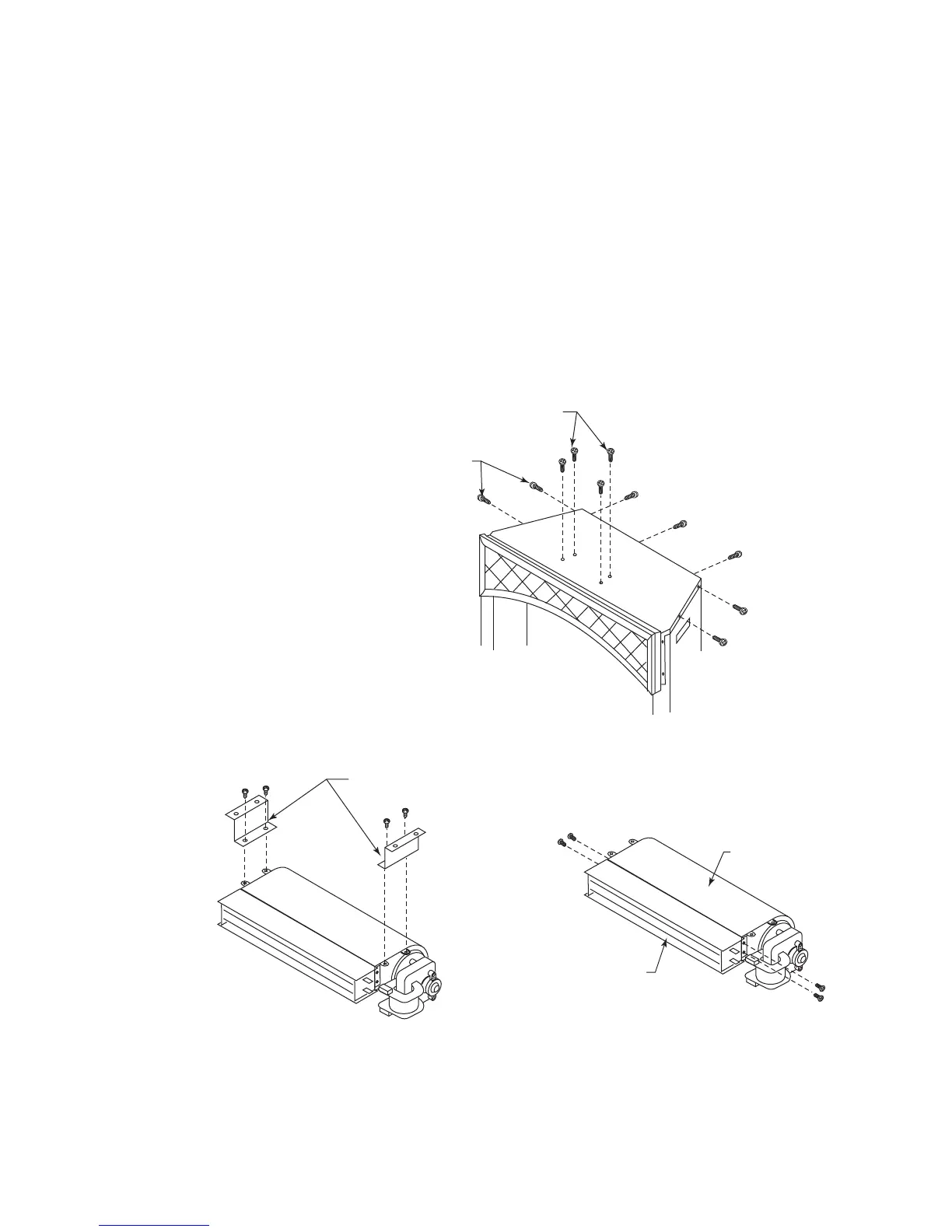

Figure 12
FP397
FP2397
remove brackets
Brackets
Figure 13
FP2398
separate blower heater
Blower
Heater
FP398
Figure 14
