M‑I SWACO MONGOOSE PRO Shale Shaker
3 Field Installation and Operation Manual 9092F02001AENG (D) 3
5. EQUIPMENT FUNCTION
The MONGOOSE PRO Shale Shaker has a screen deck made of four pretensioned composite wire mesh screens.
Each Shale Shaker screen is secured to the basket with two screen wedges. An optional stainless steel vibratory
vent hood upgrade is available for jobs that require fume extraction. The Shale Shaker deck adjustment system
allows flexible control of fluid pool depth and beach length in a variety of drilling conditions.
The Shale Shaker is equipped with two explosion-proof vibratory motors that produce a dual motion system. The
normal mode is a progressive elliptical motion used during normal drilling conditions to maximize both cuttings
retention time and screen life. The motor output for this mode is 6.5Gs. The capacity mode is used during fluid
surges and heavy solids loading. The motor output is 7.5Gs when operating in capacity mode.
5.1 Identification of Main Components

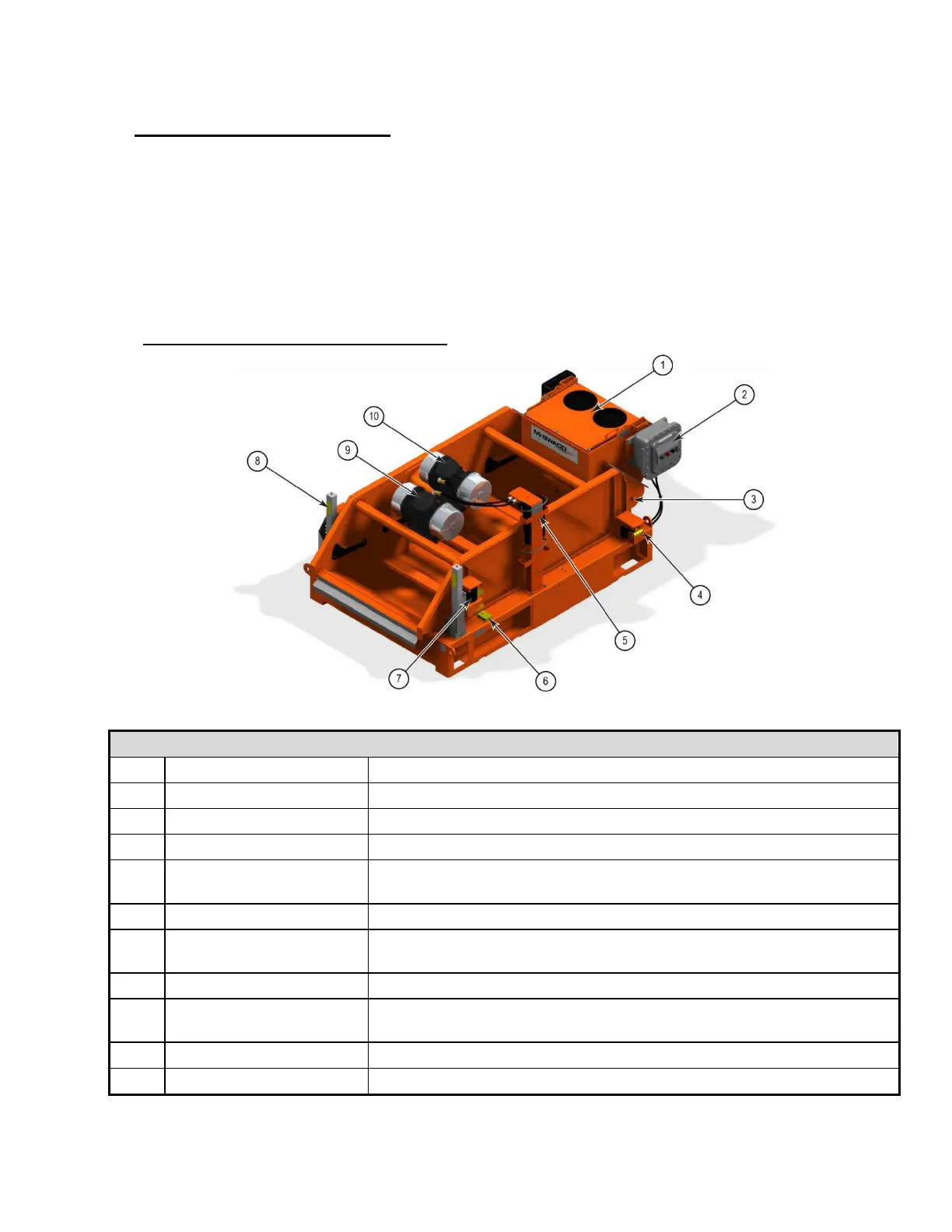

Figure 1. Main Components, MONGOOSE PRO Shale Shaker [Typical]
FIGURE 1 LEGEND
ITEM
NAME
DESCRIPTION
1
HEADER BOX
ROUTES FLUID TO SHAKER SCREENS
2
CONTROL PANEL
HOUSES CONTROLS FOR THE ELECTRICAL COMPONENTS
3
BASKET
HOLDS THE MOTORS AND WIRE MESH SCREENS
4
FEED END SHIPPING
BRACKET
SECURES THE FEED END OF THE SHAKER DURING
TRANSPORTATION
5
CABLE TOWER
ROUTES MOTOR CABLES AND HOLDS SCREEN WEDGES
6
DISCHARGE END
SHIPPING BRACKET
SECURES THE DISCHARGE END OF THE SHAKER DURING
TRANSPORTATION
7
BASKET SPRING
ISOLATES VIBRATORY MOTION ON THE BASKET FROM THE SKID
8
DECK ADJUSTMENT
ELEVATOR JACK
RAISES OR LOWERS THE DECK ANGLE TO OPTIMIZE FLUID AND
SOLIDS FLOW DURING OPERATION
9
SWING WEIGHT MOTOR
PROVIDES ADJUSTABLE VIBRATORY MOTION TO EQUIPMENT
10
FIXED WEIGHT MOTOR
PROVIDES VIBRATORY MOTION TO EQUIPMENT
