M‑I SWACO MONGOOSE PRO Shale Shaker
59 Field Installation and Operation Manual 9092F02001AENG (D) 59

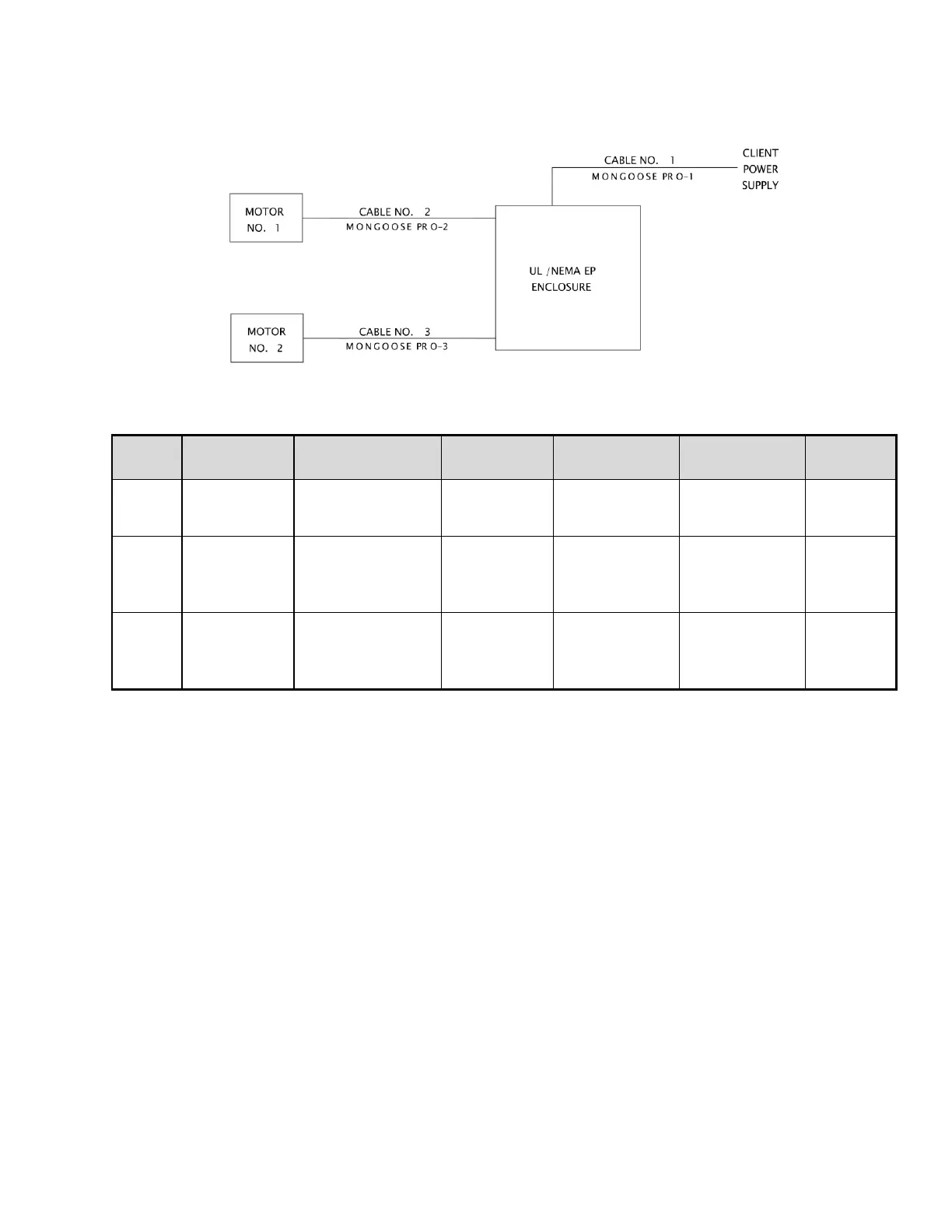

21.1.1 Cable Block Diagram
Figure 47. Cable Block Diagram
Table 11. Cable Block Diagram Details
CABLE
CABLE SIZE
TYPE
CABLE
START
GLAND
CABLE FINISH
GLAND
1
N/A
N/A
CLIENT
SUPPLY
N/A
UL/NEMA EP
ENCLOSURE
CMP
20PX2KX
2
4CX14AWG
(2.1MM
2
)
IEEE-45/IEEE
1580 TYPE P
EP MOTOR
JUNCTION
BOX
CMP 20PX2KX
Motor #1
CMP
20PX2KX
3
4CX14AWG
(2.1MM
2
)
IEEE-45/IEEE
1580 TYPE P
EP MOTOR
JUNCTION
BOX
CMP 25PX2KX
Motor #2
CMP
25PX2KX
