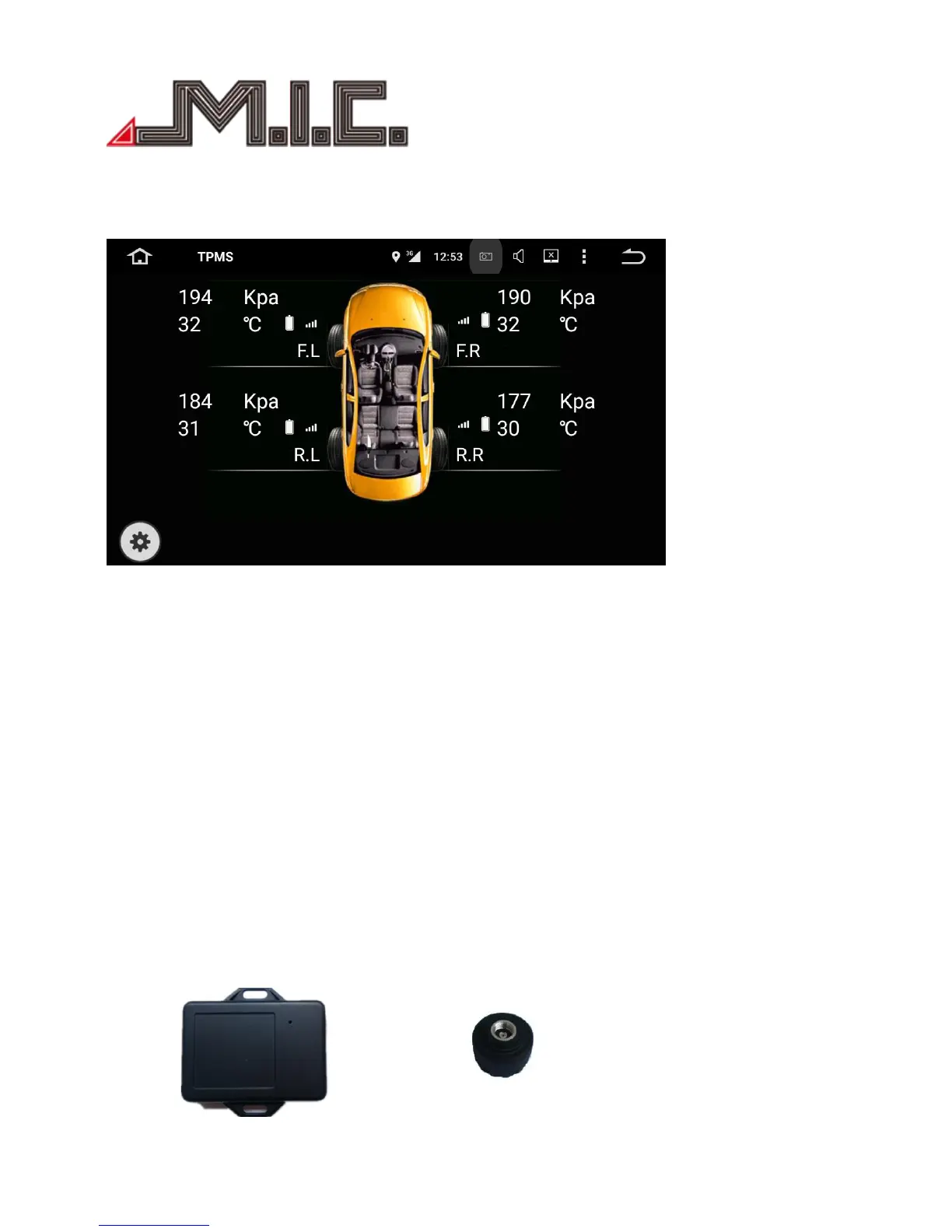

TPMS (optional)
Click “TPMS” icon from Home menu, as below：
TPMS（Tire Pressure Monitoring System）continually measure air pressure and temperature of the tire as
well as voltage of the sensor batteries, transmits these data to the receiver/DVD for presentation to the
driver. In case of an abnormal value the system activates an alarm in order to warn the driver.
It has the following features：
1. Monitors and displays pressure and temperature of tires in real time.
2. Monitors voltage of sensor batteries.
3. Promptly activates audible and visual alarms: low pressure, high pressure, high temperature,
rapid leak, sensor battery low and no signal from sensor.
4. Displays pressure in kPa, bar, psi.
5. Displays temperature in ℃,℉
6. Allows setting thresholds for low pressure and high pressure alarms.
7. Supports sensor pairing and sensor position swap procedure to facilitate tire rotation.
This system consists of a receiver, TPMS sensors
Receiver External sensor
