Mach 8
9
©2018 Micro-Air Rev 1.01
Mach 8 low profile models.
Model identification and wiring diagrams
Two slightly different models of low profile air conditioner were produced. They are identified
here as style 1 and style 2. Diagrams are normally installed on the electric box inside cover.
Style 1

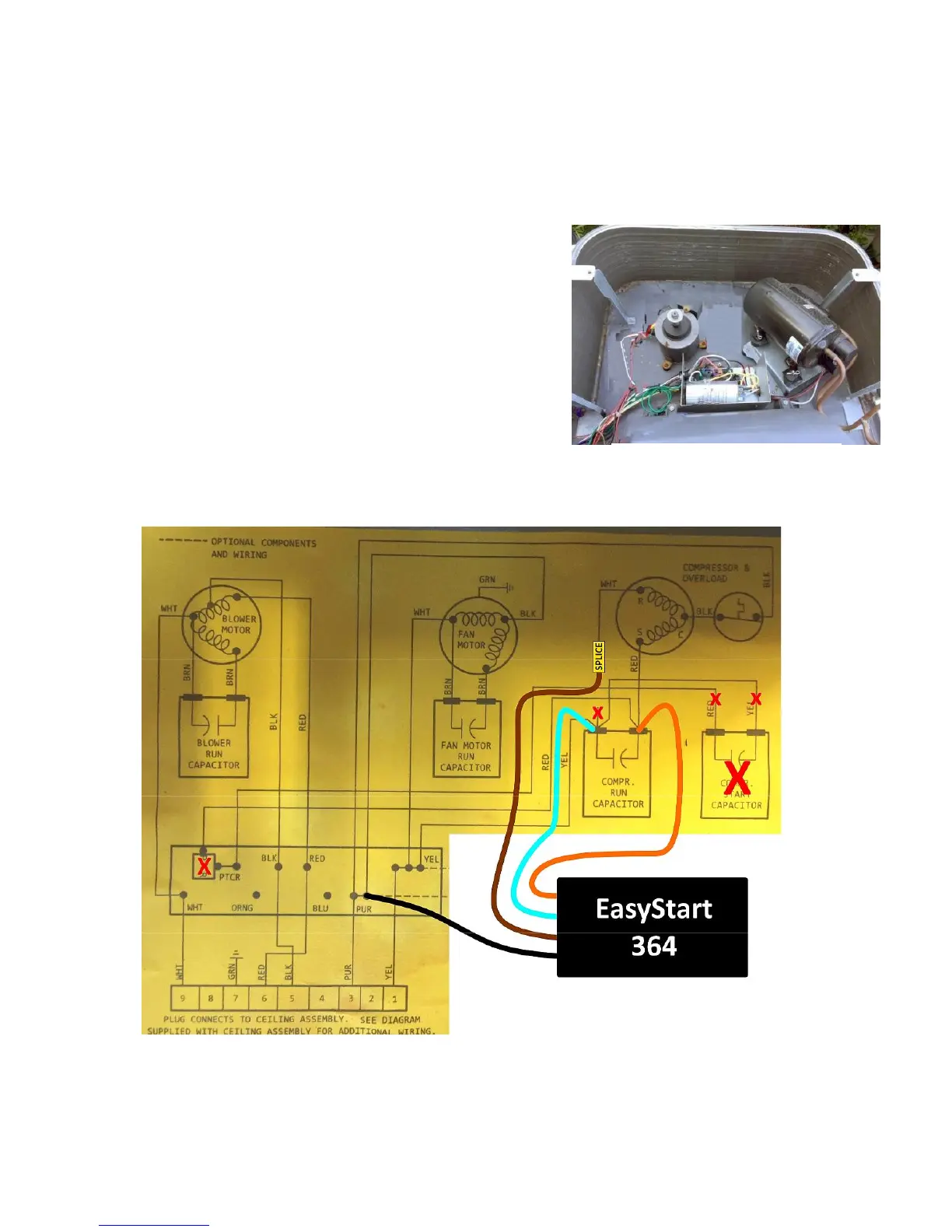

Image 11 shows the early model low profile unit. The
picture is shown with the fan removed for easier access.
Capacitors are mounted inside the metal box in the center of
the AC unit. The EasyStart wiring connections will all be made
inside this box.
Image12 shows the wiring diagram shipped with this
model.
