dsPIC33CK LOW-VOLTAGE
MOTOR CONTROL BOARD
USER’S GUIDE
Chapter 1. Introduction
1.1 OVERVIEW
The dsPIC33CK Low-Voltage Motor Control Board is targeted to drive a low-voltage,
three-phase Permanent Magnet Synchronous Motor (PMSM) or Brushless DC (BLDC)
motor using the dsPIC33CK256MP508. This dsPIC
®
DSC features a 100 MIPS,
single-core 16-bit DSC with enhanced on-chip peripherals, such as
High-Resolution PWM (HRPWM),12-bit high-speed ADC cores, analog comparators with
DAC, op amps, QEI, CAN-FD, SENT, UART, SPI, I
2
C, DMA, timers, etc.
In some instances of the document text, the dsPIC33CK Low-Voltage Motor Control Board
is also referred to as the ‘Motor Control Board’ to enhance readability. The Motor Control
Board is shown in Figure 1-1.

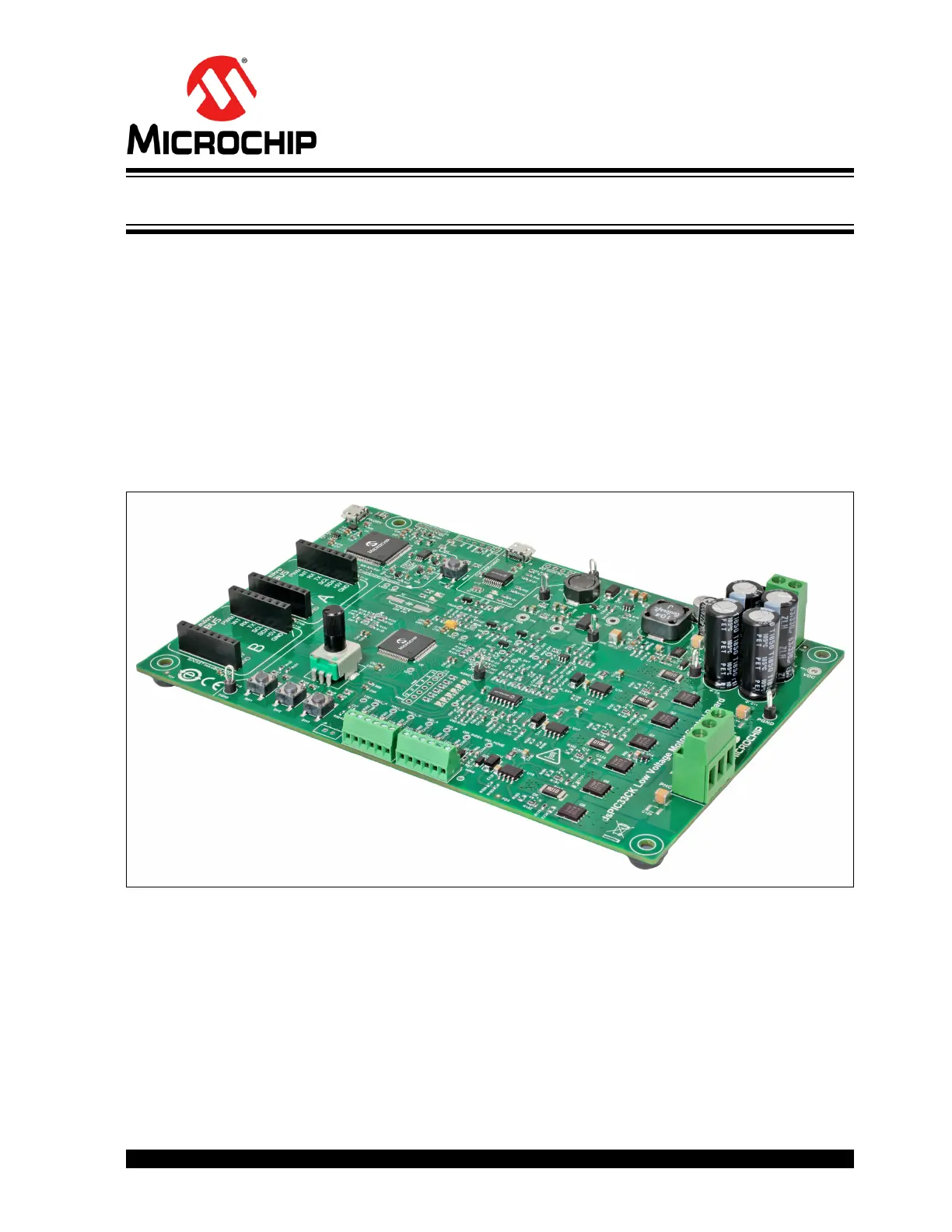

FIGURE 1-1: dsPIC33CK LOW-VOLTAGE MOTOR CONTROL BOARD
