2021 Microchip Technology Inc. DS00003118C-Page 68
AN3118
APPENDIX H: AUX-IN DETECTION
Any one of the GPIOs on BM83 can be configured as
AUX-In input detector in embedded mode. The below
figure shows that P3_2 is configured for AUX-In input
detections.

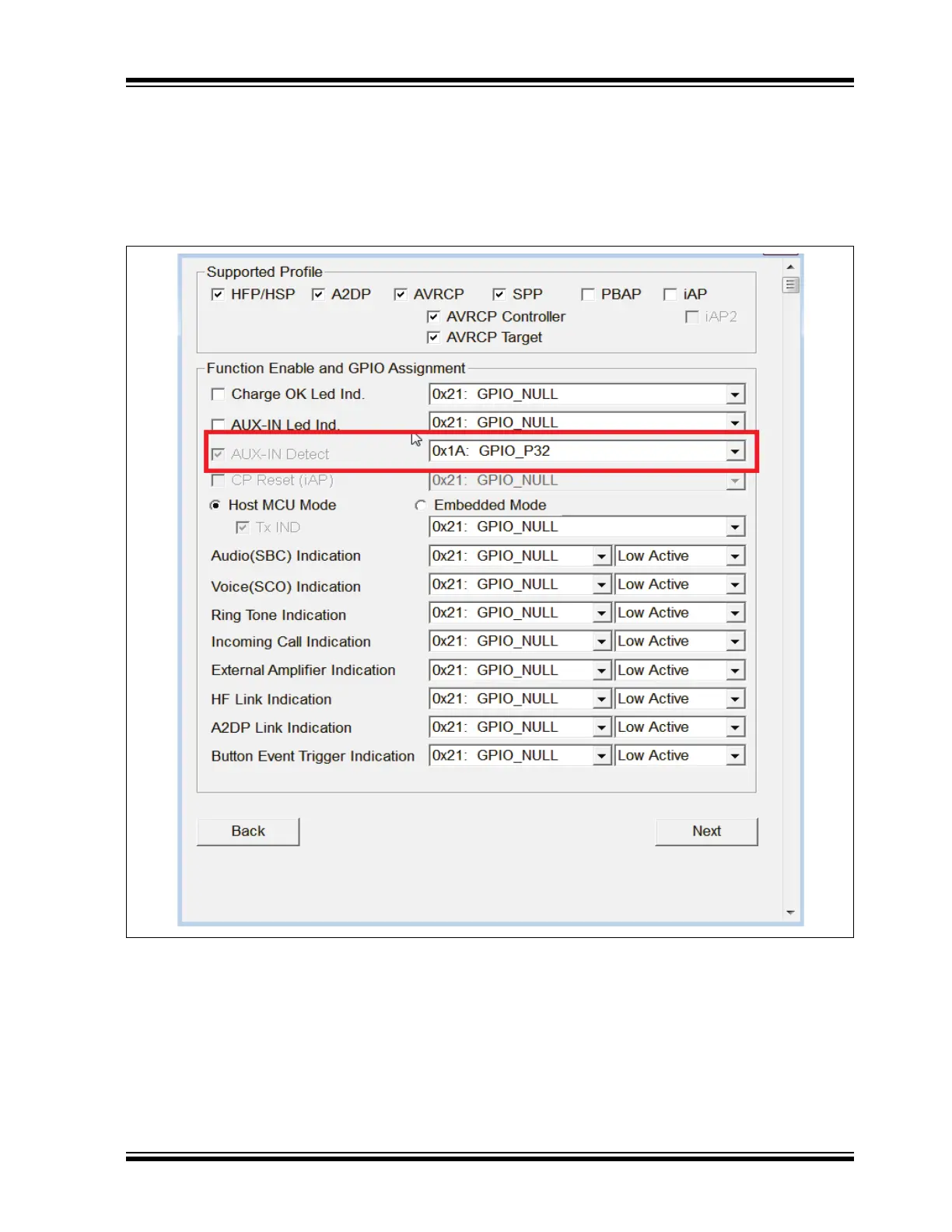

FIGURE 73: AUX-IN DETECTION
