 2021 Microchip Technology Inc. DS00003118C-Page 69

AN3118

APPENDIX I: BUTTON

CONFIGURATION

Any one of the GPIO on the BM83 can be configured

for button functionalities in Embedded mode. For

example, in BM83 EVB VOL UP button is connected to

P2_7 pin of BM83. The below figures show P2_7 is

configured for dual functionality (Short press for volume

up, Long press for Concert Mode entry).

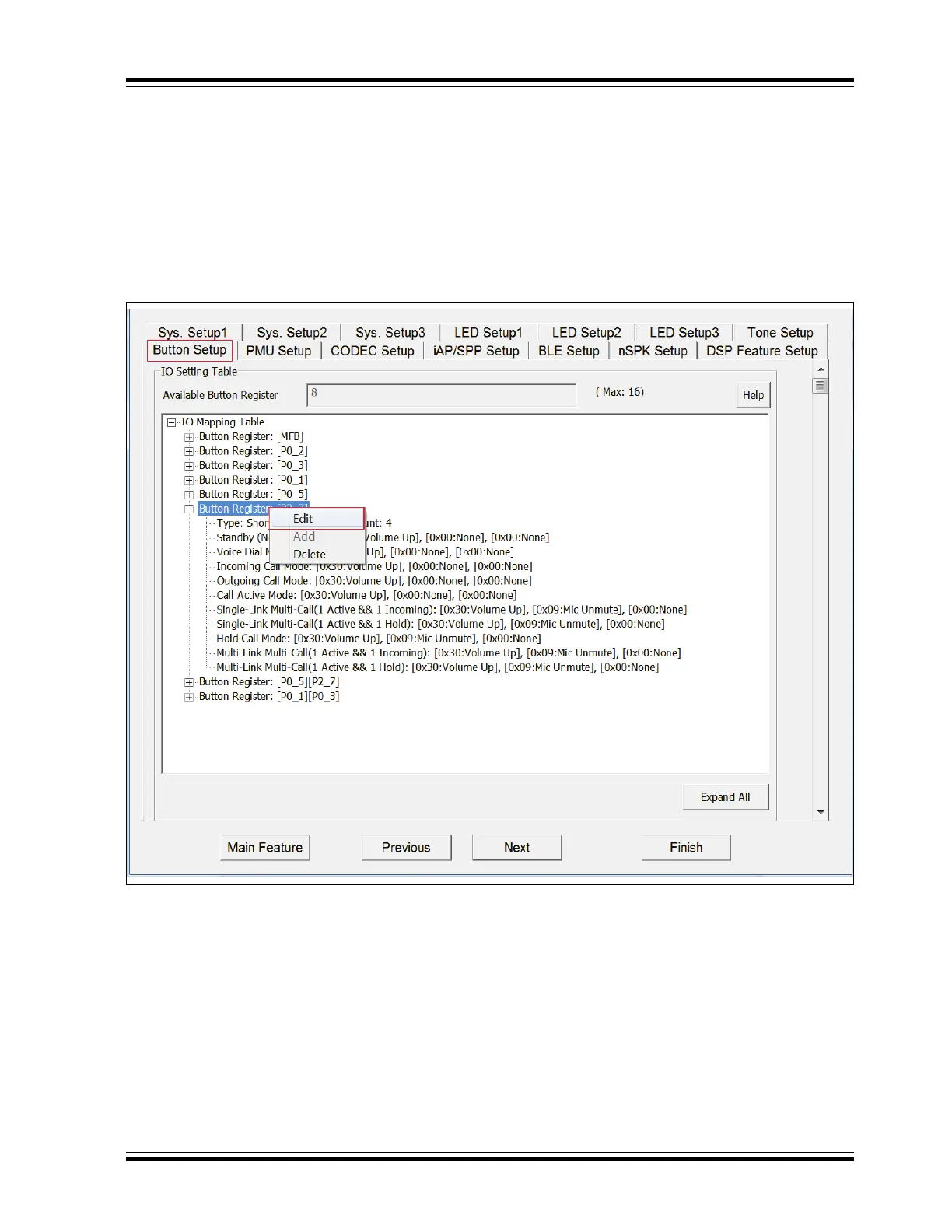

FIGURE 74: BUTTON SETUP
