2021 Microchip Technology Inc. DS00003118C-Page 72
AN3118

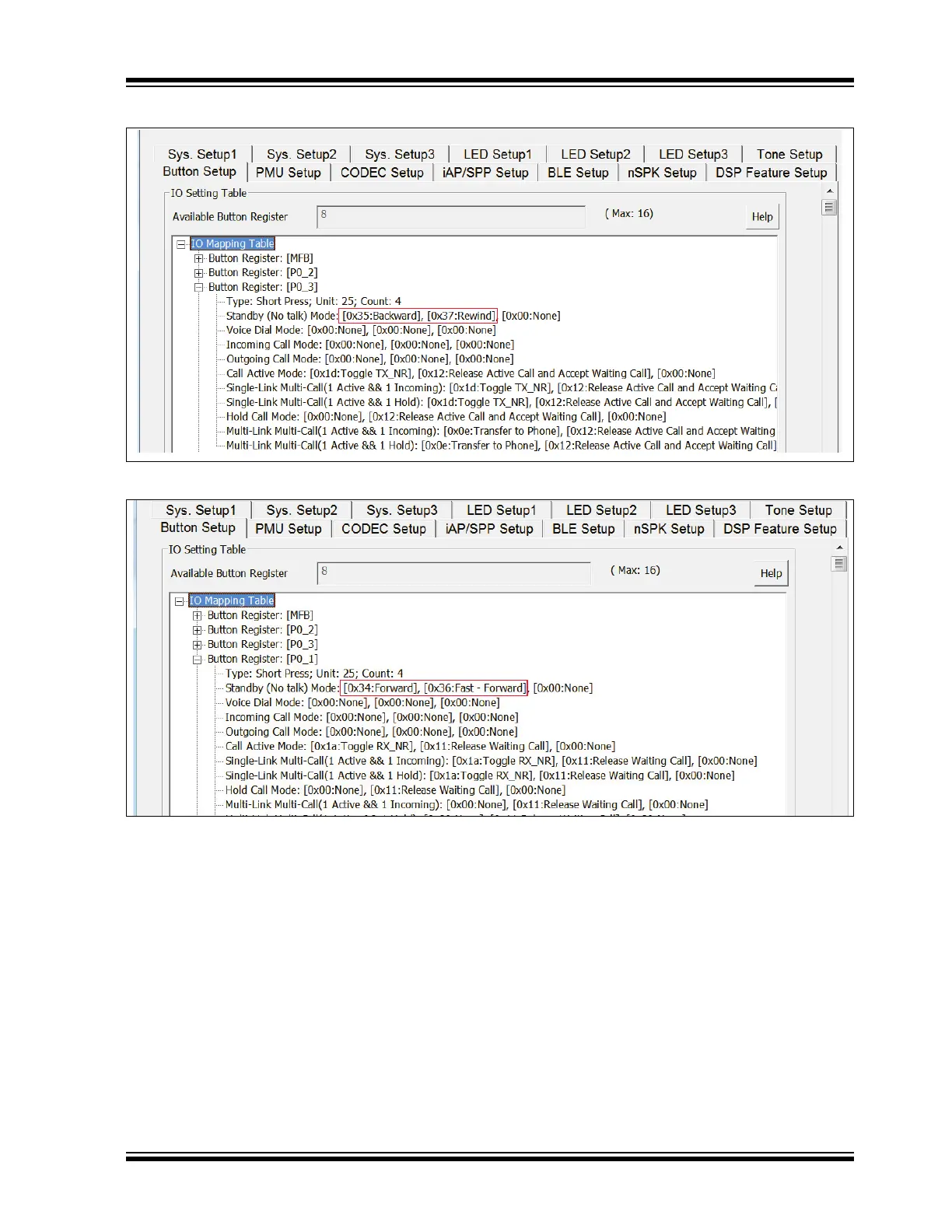

FIGURE 78: GPIO P0_3 IS CONFIGURED FOR BACKWARD/REWIND FUNCTIONALITY
FIGURE 79: GPIO P0_1 IS CONFIGURED FOR FORWARD INITIATION
