2021 Microchip Technology Inc. DS00003118C-Page 99
AN3118
R.2 Updating the BM83
1. Start the SPKCommandsetTool, then select the
appropriate Serial Port and Baudrate, as shown
in the Figure 114.
2. Click on the System tab, then click the power on
button, as shown in following figure.
3. Click the DFU tab.
4. Click the Browse button, then select the
Rehexed file and click the Update button.
5. Select the images in the DFU window, then click
on OK, as shown in the following figure to
update the BM83.
- The green status bar in the following figure
indicates the progress of the update.
6. Once the image is updated in the BM83 Flash,
the BM83 will reboot with a new image.

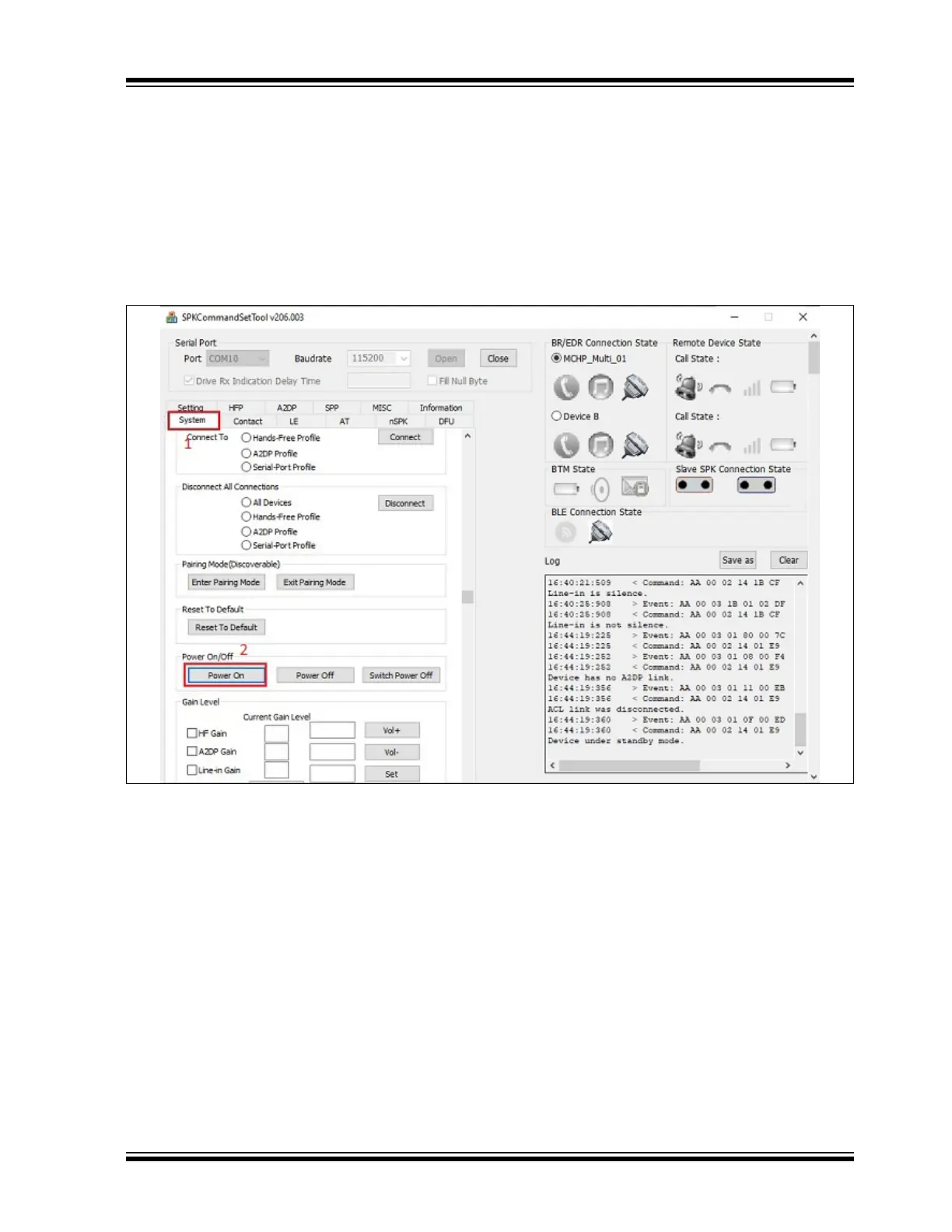

FIGURE 113: SPKCOMMANDSET TOOL
