RN4870/71 Bluetooth
®
Low Energy Module User’s Guide
DS50002466A-page 54 2016 Microchip Technology Inc.
5. Once connected, SmartDiscover App discovers all the services and
characteristics supported by the module as shown in Figure 4-2.

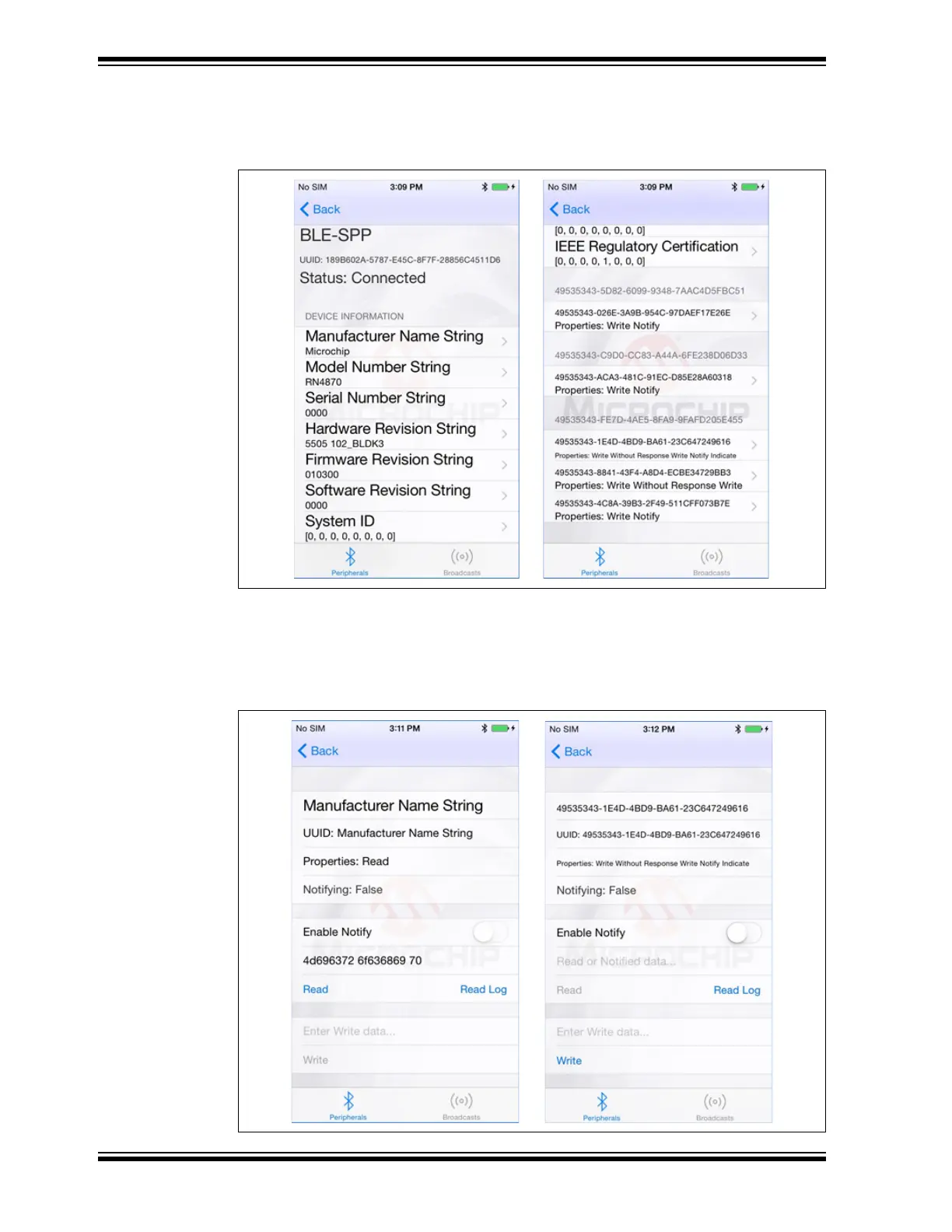

FIGURE 4-2: SERVICE DISCOVERY
6. Click any of the listed characteristics that the SmartDiscover App discovered to
look for the details of the characteristic such as name, UUID, access properties,
notification/indication and also to enable notification, read and write the charac-
teristic based on the access supported. Refer to Figure 4-3.
FIGURE 4-3: CHARACTERISTIC ACCESS
