GeneralPurposeI/OSignals

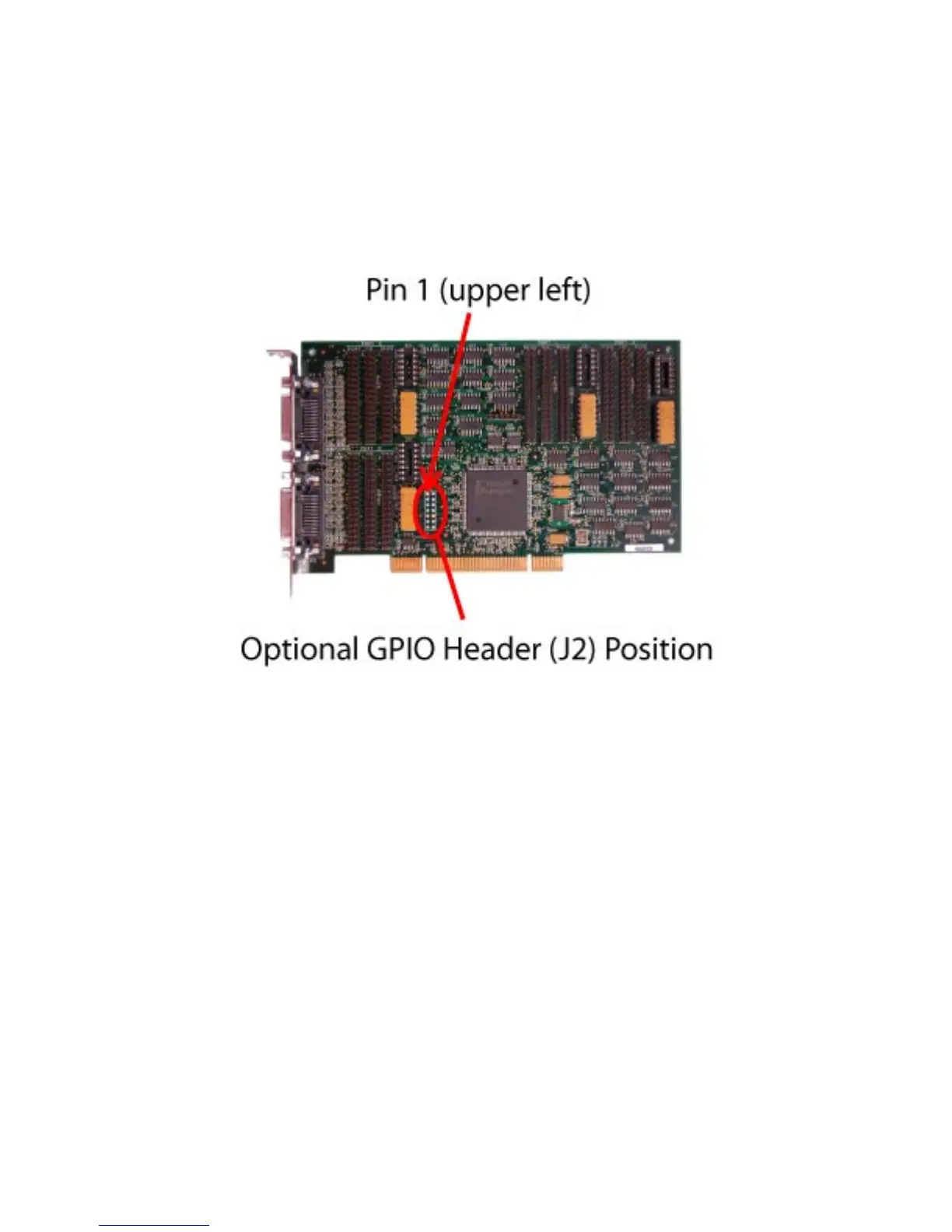

Theserialcardhasanoptional14pinheaderthatprovidesgeneralpurposeinput/output(GPIO)signals

forapplicationspecificuses.ThesesignalsarecontrolledbyanapplicationusingtheserialAPI(Windows

andLinux).Eachsignalcanbeconfiguredtobeeitheraninputoranoutput.Inputscanbemonitored

andoutputscanbecontrolled.



DCGPIOSpecifications

Vil(inputlow)=‐0.5Vmin,0.8Vmax

Vih(inputhigh)=2.0Vmin,5.5Vmax

Vol(outputlow)=0.4Vmax

Voh(outputhigh)=2.4Vmin

Iol(outputlow)=24mAmax

Iil(outputhigh)=‐24mAmax

InputCurrent=+/‐10uAmax

GPIOsignalsare3.3VTTLcompatibleandinputsare5Vtolerant.


