microHAM © 2010 All rights reserved
10. MK2R only (not MK2R+) – connect two sound cards to their respective jacks
OUT SC1: connect to the output of sound card 1 (line out or speaker)
MIC SC1: connect to the microphone jack of sound card 1
OUT SC2: connect to the output of sound card 2 (line out or speaker)
IN SC2: connect to the Line In of sound card 2
To use a using a single "three port" sound card,
OUT SC1: connect to the output of sound (line out or speaker)
OUT SC2: to both jacks using a stereo "Y" adapter
MIC SC1: connect to the microphone jack of the sound card
IN SC2: connect to the Line In of the sound card
11. Connect a 12V-16V DC supply to the DC 12V jack.
Be sure to observe the proper polarity.
12. Locate the USB cable but DO NOT connect it at this time.

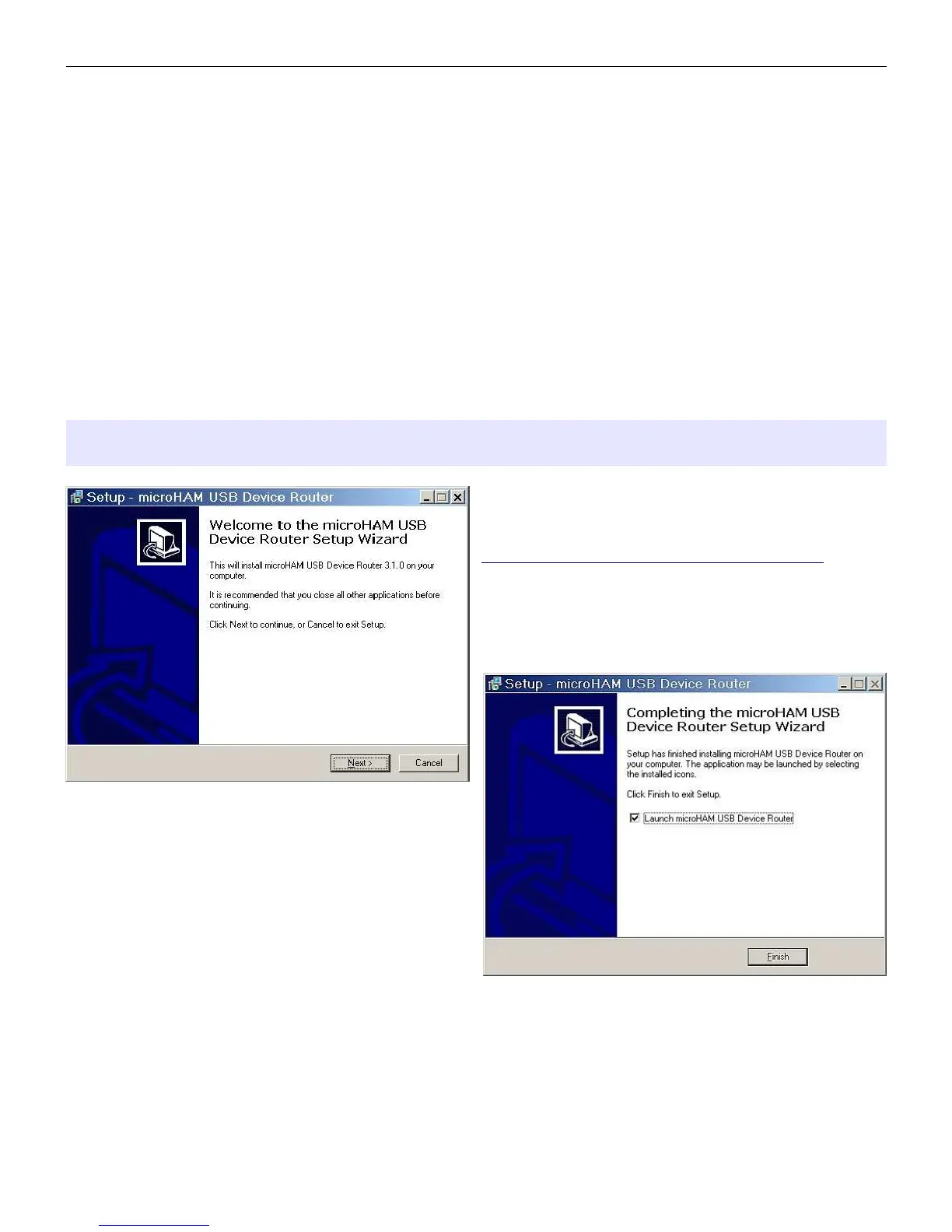

Installing microHAM USB Device Router
To install Router click on the Install USB Device
Router link on the installation CD or download the
most recent installation package from the web site:
www.microham.com/contents/en-us/d29.html
If you download an updated package, click on
"urouter_release_xx_xx.exe" (xx_xx is version) to
start the installation.
The Windows setup utility will start and ask into
which folder Router and its supporting files should
be installed. Note: unless you have a very strong
reason to install Router elsewhere, please accept
the default location.
When the Router installation is completed, click
"Finish" to launch Router for the first time. Then
plug in the USB cable and proceed to configuring
Router for your station and software.
16
