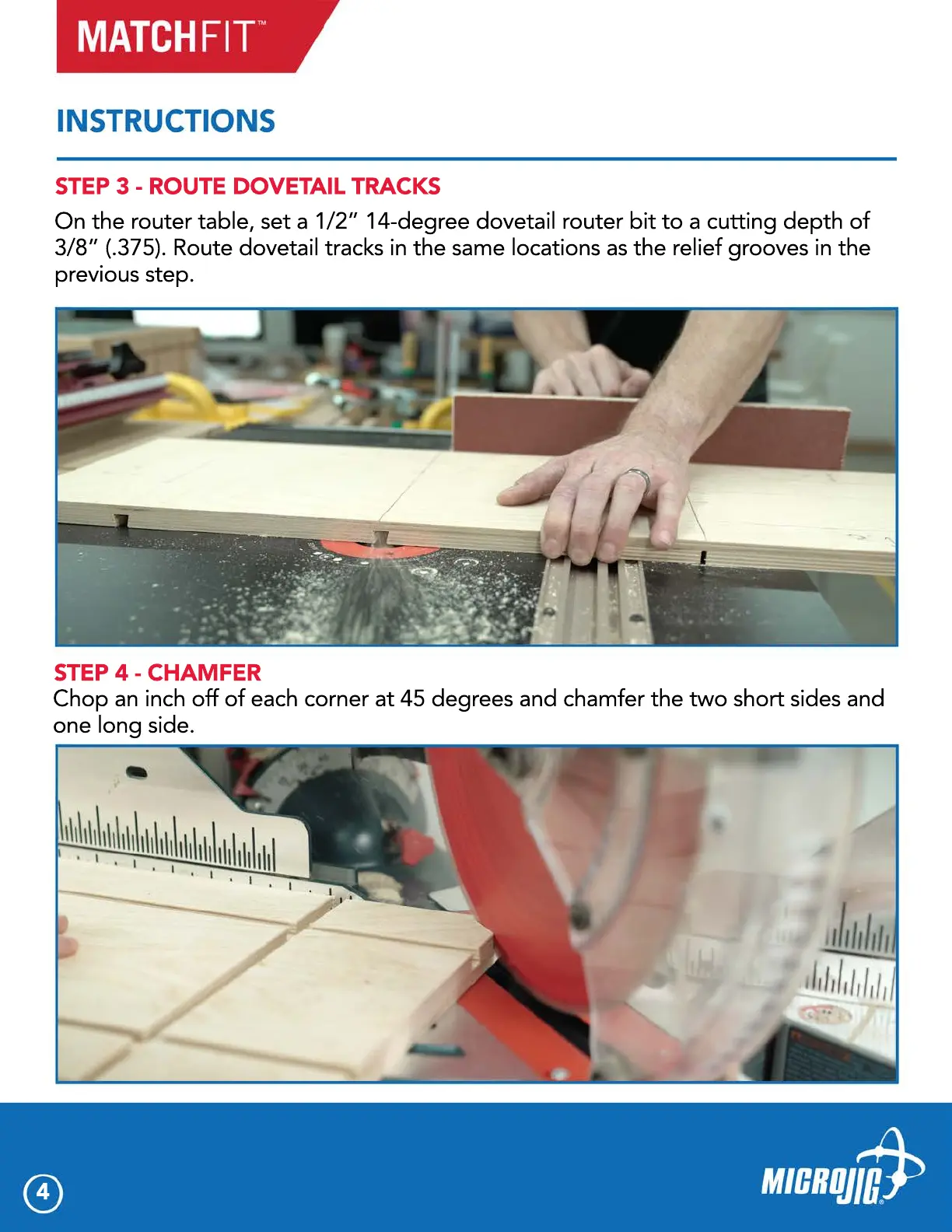

On the router table, set a 1/2” 14-degree dovetail router bit to a cutting depth of
3/8” (.375). Route dovetail tracks in the same locations as the relief grooves in the
previous step.
Chop an inch off of each corner at 45 degrees and chamfer the two short sides and
one long side.
4
STEP 3 - ROUTE DOVETAIL TRACKS
STEP 4 - CHAMFER
