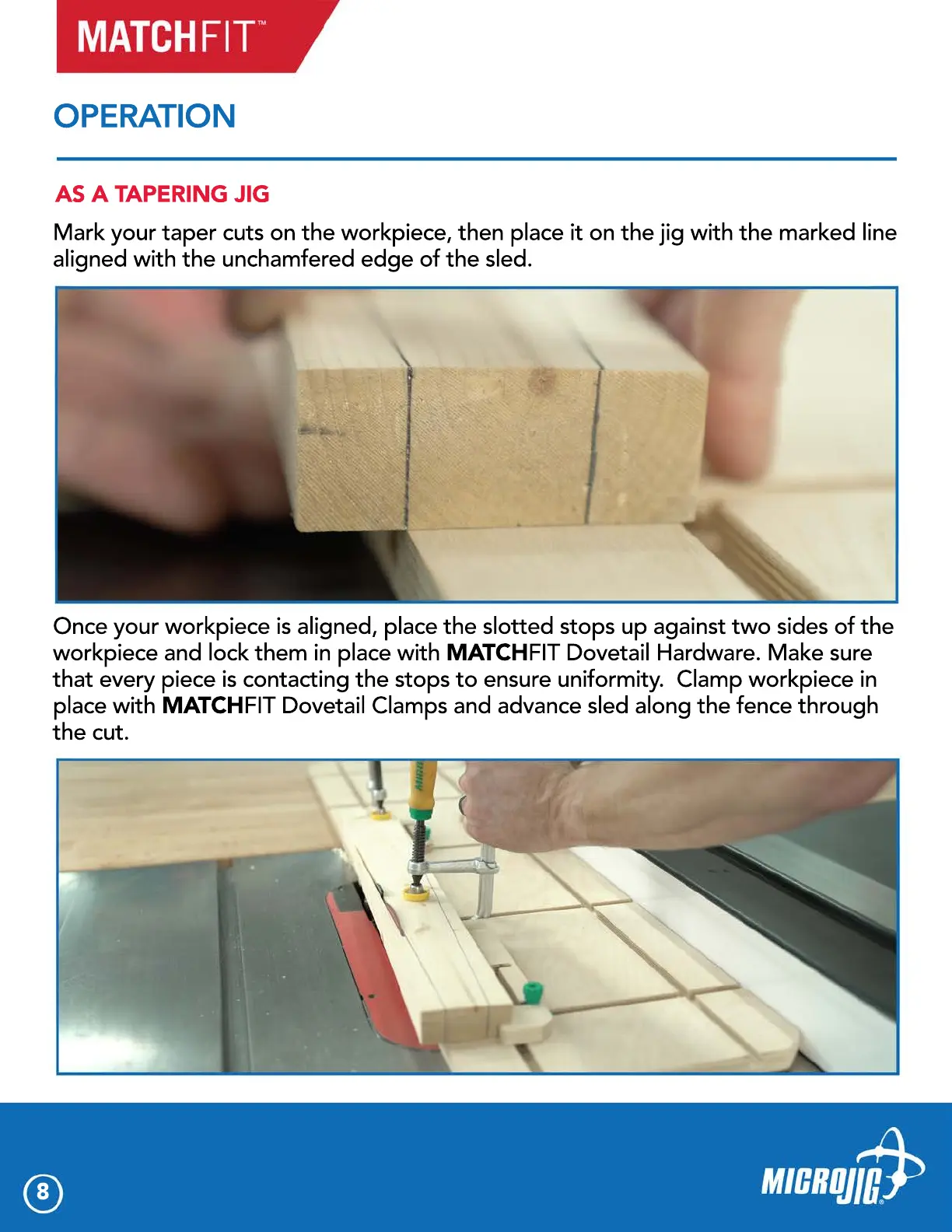

Mark your taper cuts on the workpiece, then place it on the jig with the marked line
aligned with the unchamfered edge of the sled.
Once your workpiece is aligned, place the slotted stops up against two sides of the
workpiece and lock them in place with MATCHFIT Dovetail Hardware. Make sure
that every piece is contacting the stops to ensure uniformity. Clamp workpiece in
place with MATCHFIT Dovetail Clamps and advance sled along the fence through
the cut.
OPERATION
8
AS A TAPERING JIG
