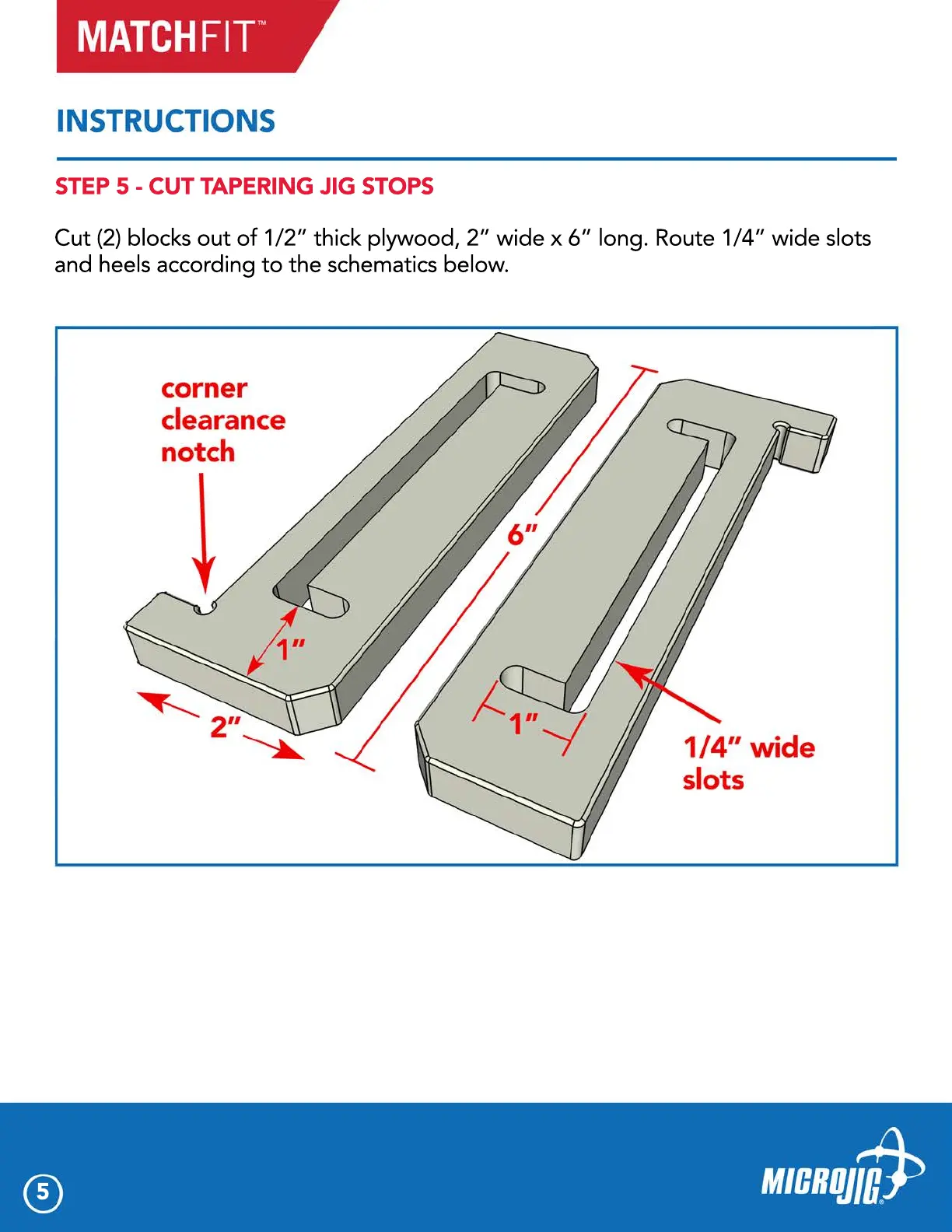

Cut (2) blocks out of 1/2” thick plywood, 2” wide x 6” long. Route 1/4” wide slots
and heels according to the schematics below.
5
STEP 5 - CUT TAPERING JIG STOPS
