Rotary Microtome HM 340 E
MICROM International GmbH
Robert-Bosch-Str. 49
D- 69190 Walldorf 386 200 - English
2-11-4 READJUSTING SPECIMEN CLAMPS
Frequent use of the clamping lever (fig. 12.1) can
lead to the fact that the specimen clamps cannot be
clamped optimally anymore. If the necessary
readjustments are not carried out, it might even be
possible that the specimen clamp cannot be
clamped anymore by means of the clamping lever
(fig. 12.1).
The clamping lever (fig. 12.1) should be in an
almost upright position. To determine the
clamping position of the clamping lever, adjust the
inner screw (fig. 13.1) on the backside of the
orienting adapter by means of an allen key (size 3
mm).
Turn the allen key in a clockwise direction if no
clamping was achieved at all or if the clamping
position of the clamping lever is too high.
If the clamping position of the clamping lever is
too low, turn the allen key in a counter-clockwise
direction.

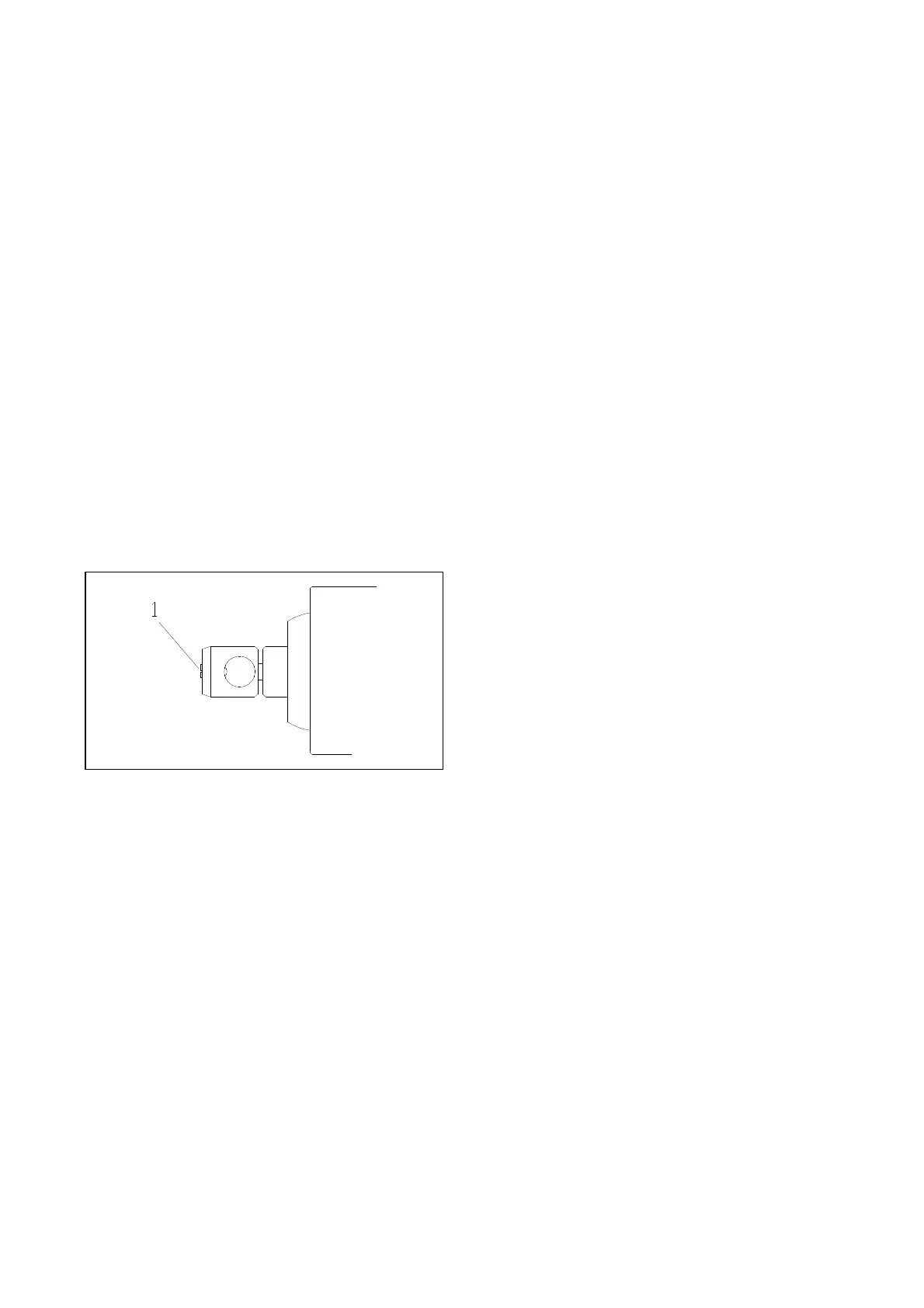

Fig. 13
Then insert the specimen clamp and check
clamping position. If necessary, repeat above-
described process.
