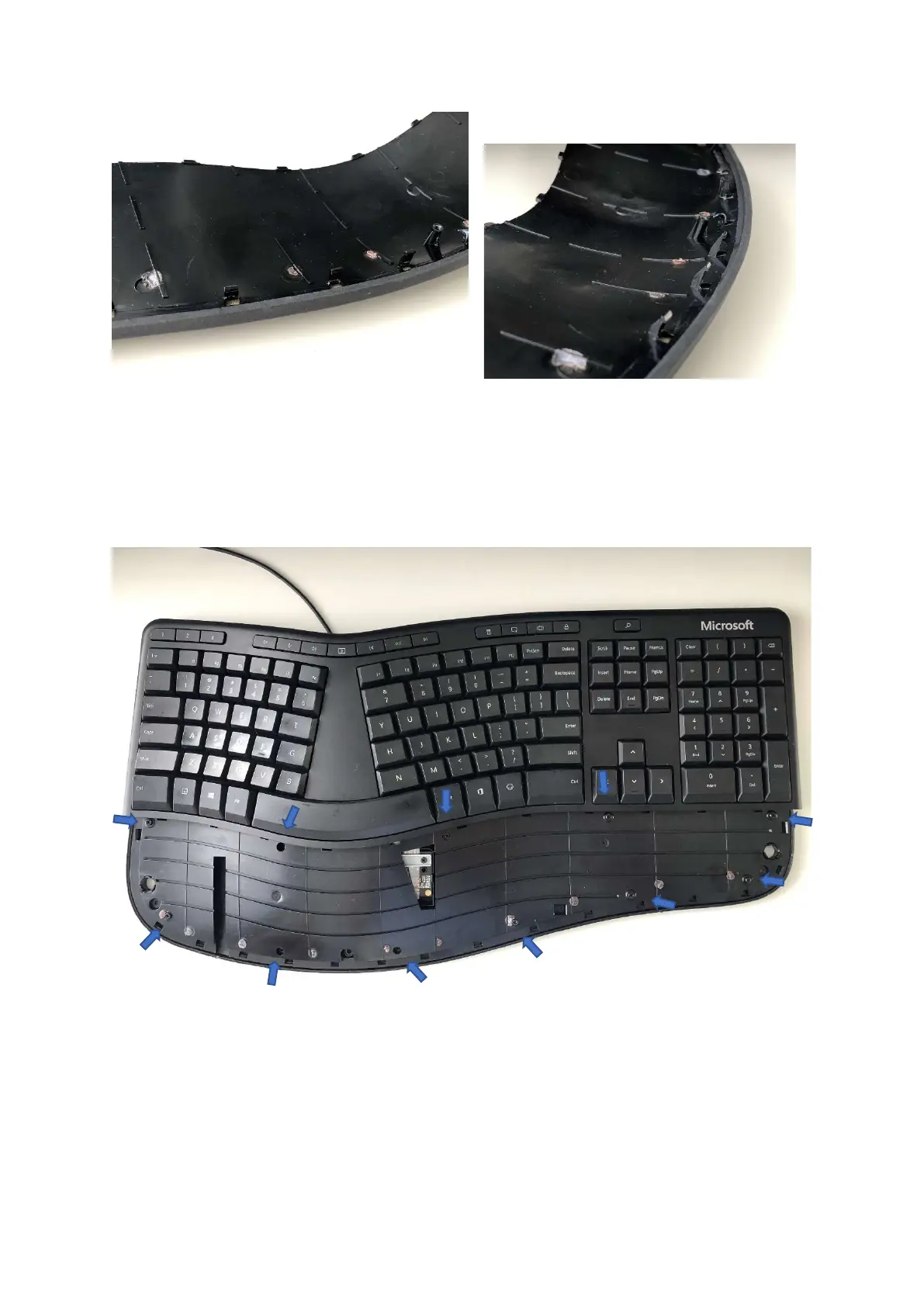

Step 4 Remove screws under wrist pad and under keys
With the wrist pad removed, the bottom screws are exposed, however, these are not all the screws
as there are more hidden beneath the keys.
Remove the screws exposed by the wrist pad
Remove the screws hidden under the keys
Next, the screws under the keys. Following the key removal instructions, remove the keys as shown
below, to expose the hidden screws.
