MICROWELL HP 900 Compact - Connection of the Compact Heat Pump to the Filtration Circuit

10 | Installation and user manual
HEAT PUMP MICROWELL HP COMPACT

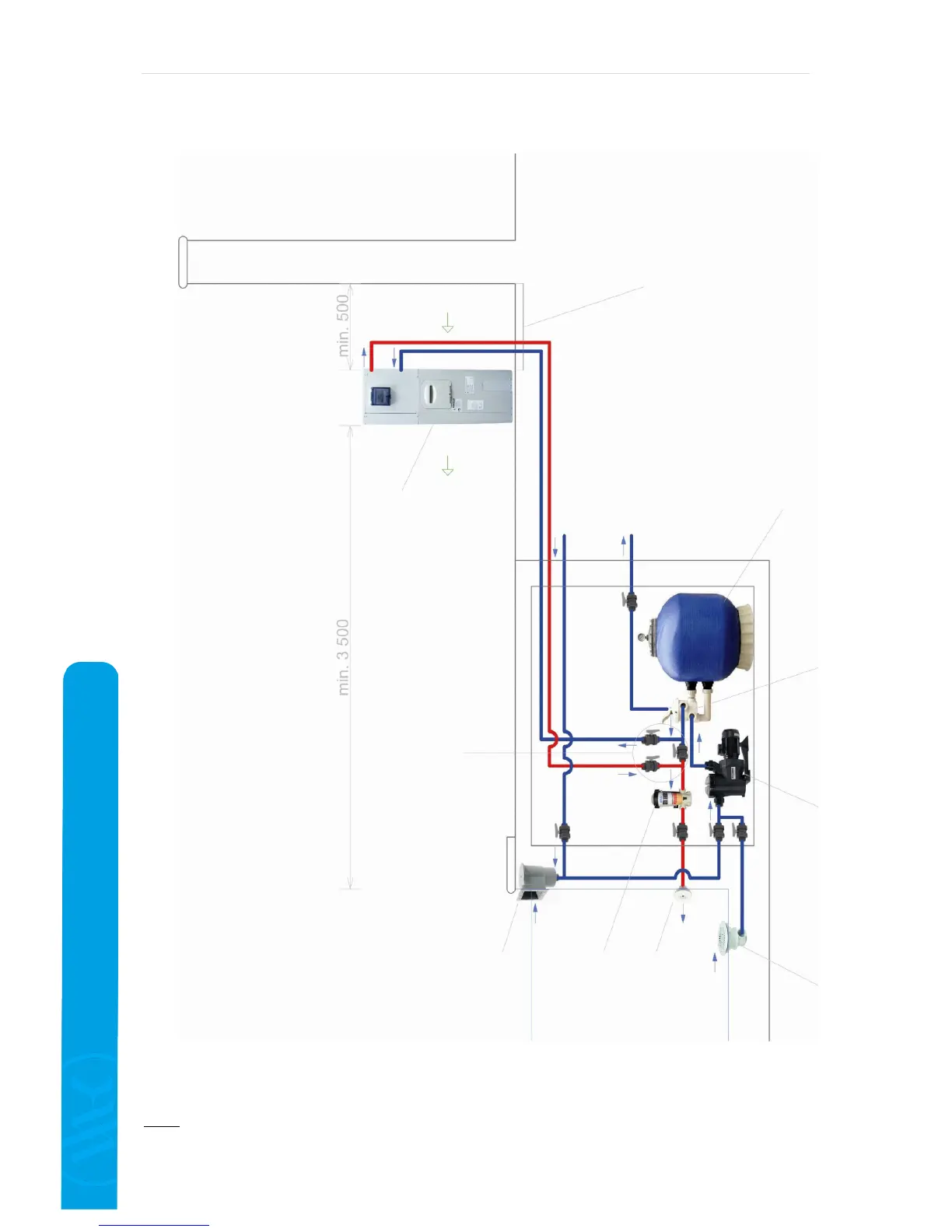

Connection of the compact heat pump into the filtration circuit of the swimming pool
Note:
The manufacturer supplies only the heat pump. The other parts shown in the picture belong
to the water circuit that is ensured by the user or by the installation company.
WALL
(fence, house)
HEAT PUMP
Water outlet
Water inlet
Air suction
Exhaust air
By-pass valves
Skimmer
SWIMMING POOL
TECHNOLOGICAL
CHAMBER
Water filling from water mains
Water discharge
Condensate escape
Filtration tank
Filtration valve Filtration pump Bottom outlet
Reversible nozzle Chlorine dozing
machine
