MICROWELL HP 900 Compact - Simplified Control Diagram

Installation and user manual | 17
HEAT PUMP MICROWELL HP COMPACT
 The swimming pool water temperature should not exceed 30 °C. Too hot water is not
refreshing, moreover it creates optimal conditions for the growth of algas. Some swimming
pool parts can also have heat limitations (e.g. foil softening of the foil pools). Therefore, the
temperature adjusted on the thermostat should not exceed 30
°C.

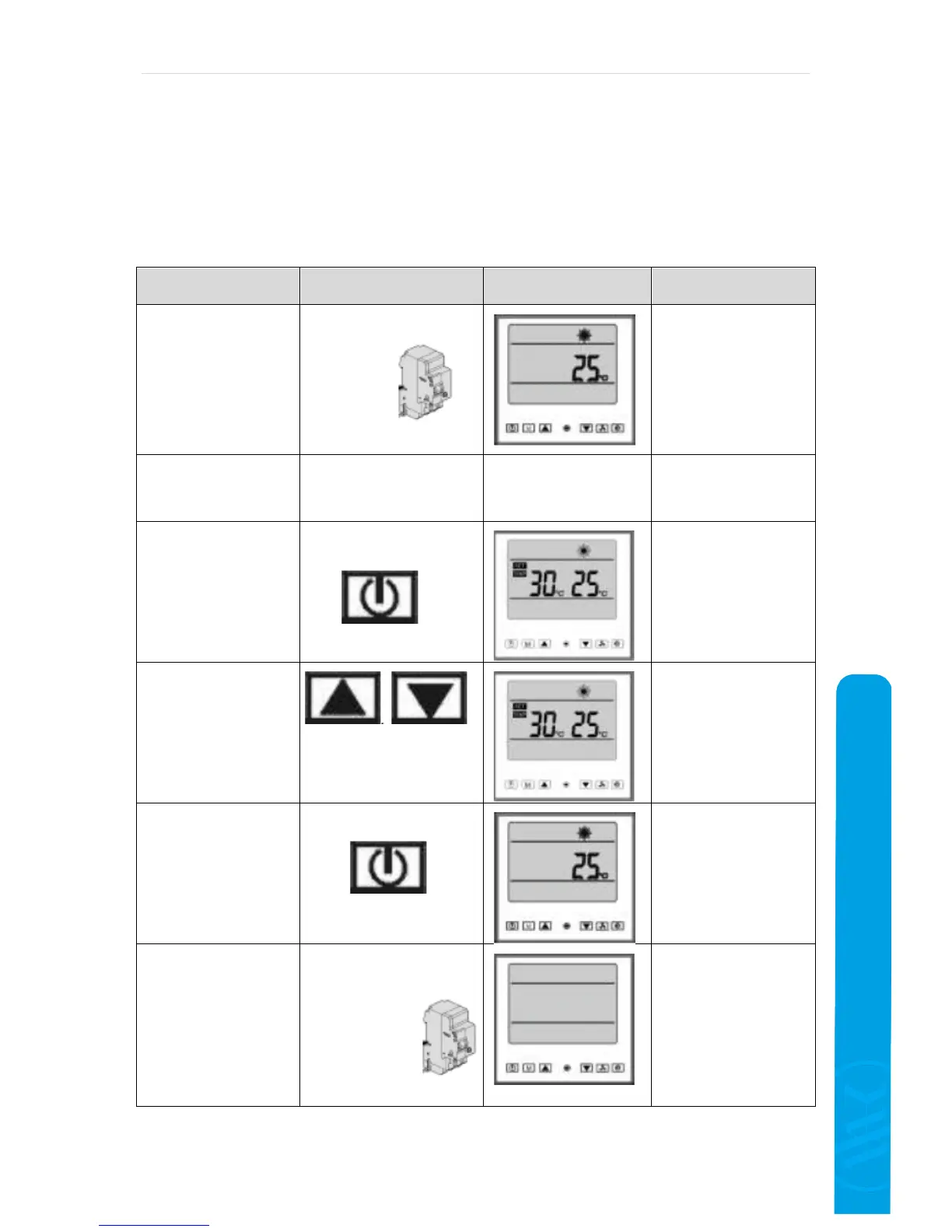

6.6 Simplified control diagram
Activity
External device or control
button of the heat pump
Display
Heat pump response
Heat pump switching on
Insert the plug of the flexible
cord to the socket. In case of
fixed
connection ,
turn on the
circuit-
breaker of
the heat
pump
Current water temperature
display (on the right)
Switching on the
swimming pool water
circulation in the pipe
Turn on the water filtration
pump.
detto
Heat pump starting Press the button
The heat pump will be
put into operation
within 1 sec - 3
minutes.
Setting of the swimming
pool water temperature
Optional range
5 °C
÷ 40 °C
The heat pump heats
the water till the
requested water
temperature is reached.
Stop Press the button
The heat pump stops
immediately and stays
in stand-by mode.
Switching off Pull out the plug of the
flexible cord from the
sucket. In case
of fixed
connection ,
turn off the
circuit-breaker
of the heat pump .
Total shutdown of the
heat pump.
