Routing to the Stereo Master Output
In addition to the 16 mix bus sends, Siena features a stereo master
output.
Typically, this would be used to generate the Front of House (FOH) mix
for hybrid FOH/monitor applications. In stand alone monitor
applications, the master output may remain unused or provide an
additional stereo output bus.
Operators Manual - Page 11
Input ChannelsInput Channels

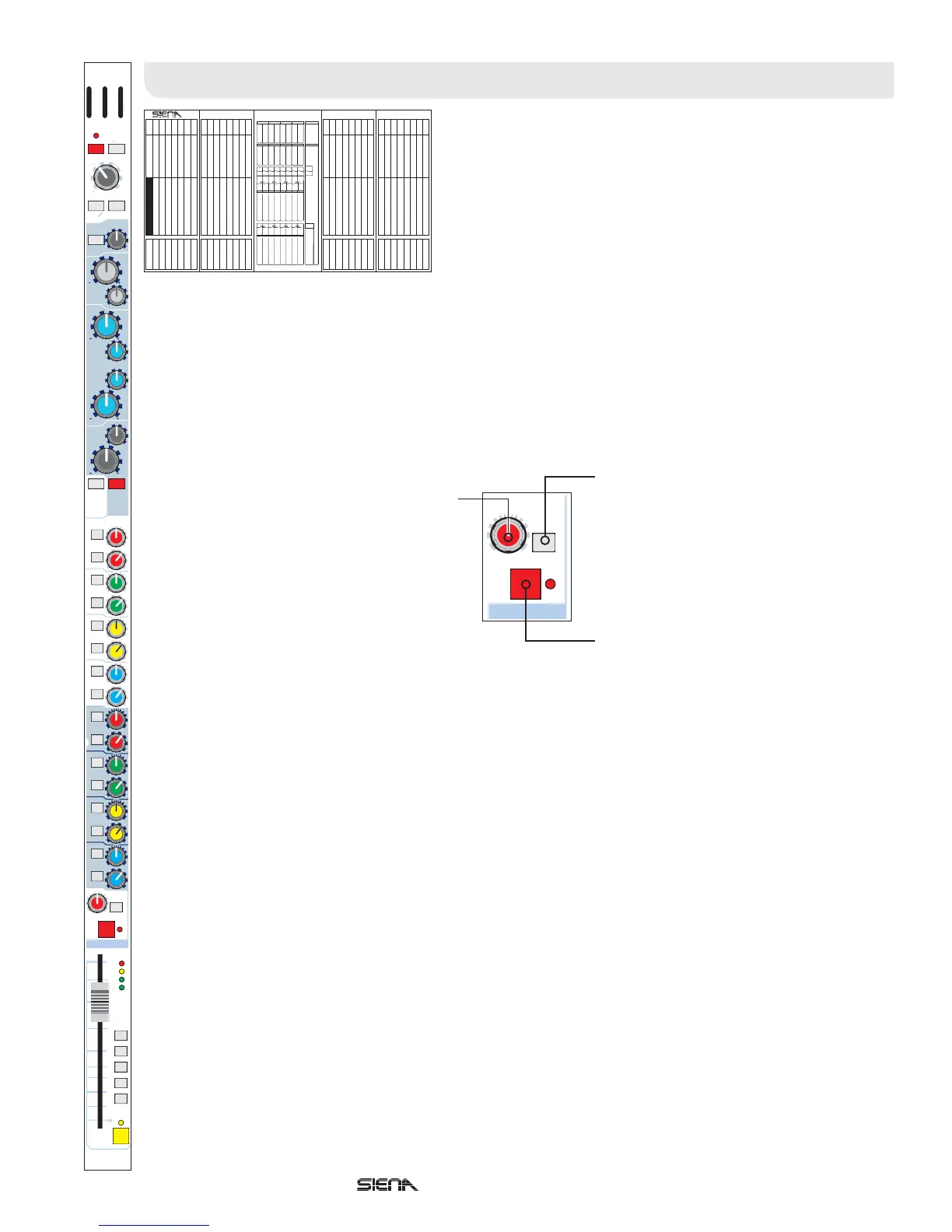

Pan The mono signal from the channel
may be positioned within the stereo
field using the channel pan control. Turn
the control fully anticlockwise to pan
signal to the left or clockwise to pan to
the right. Adjustment between hard left
and hard right is continuous, with a
centre detent.
Note: the pan control obeys a constant
power law (i.e. -3db at the centre.)
Stereo stereoDepressing the switch
routes the channel signal onto the
stereo (master left and right) bus. The
signal is sourced post EQ, pan, mute
and fader.
Mute MUTE- The switch mutes the
channel signal feeding all 16 mix bus
(pre or post fader) and stereo master
bus outputs. However, signal will still be
sent to the insert send. The mute status
of the channel is indicated by the
corresponding mute LED.
Note: the mute switch may be
controlled from any of the five Auto
Mute masters, see Page 22 for details.
