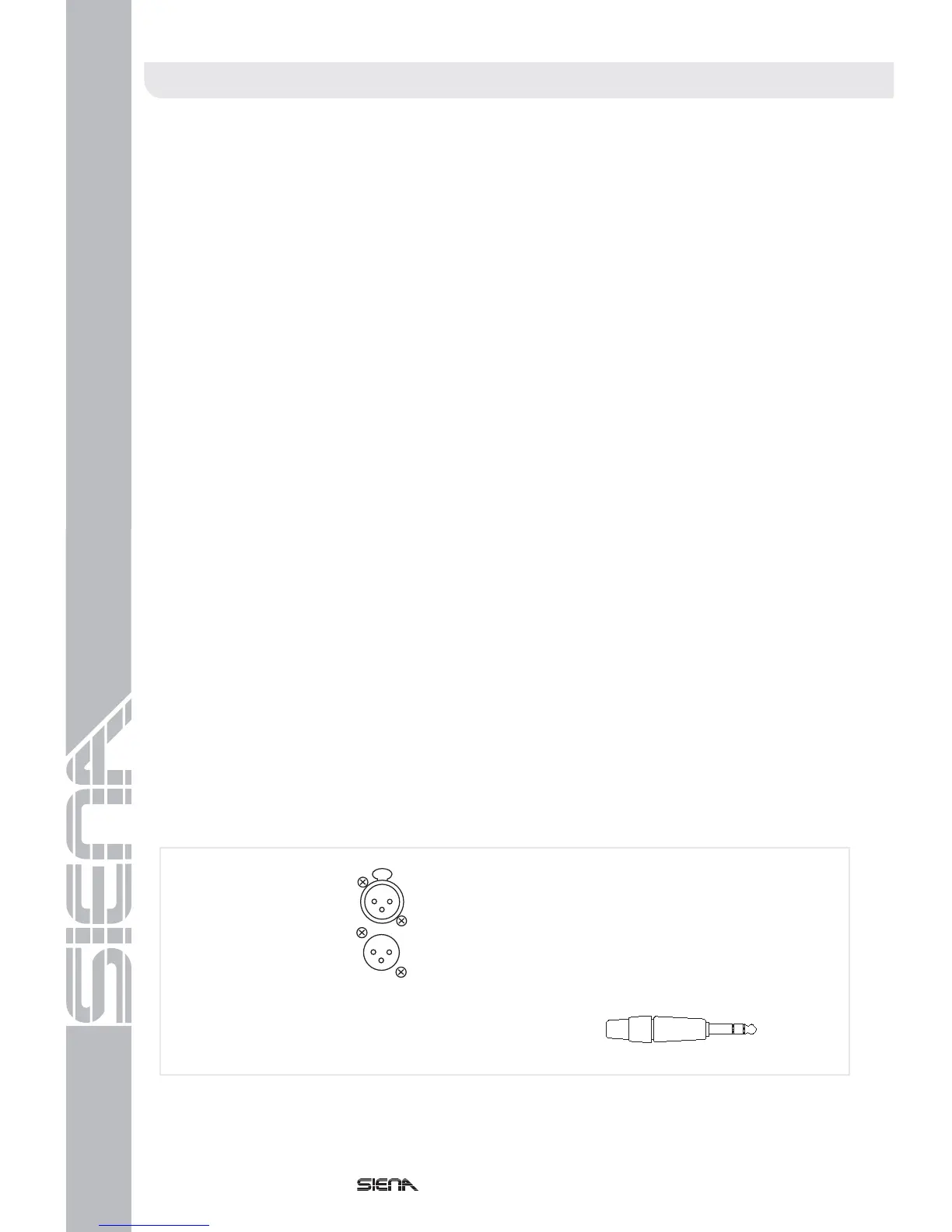

Quarter Inch Jack
TRS Signal TRS Insert TRS Headphone
Sleeve Screen/Ground Screen/Ground Screen/Ground
Ring Cold Signal Insert Return Right
Tip Hot Signal Insert Send Left
Siena FeaturesSiena Features
XLR
Pin 1 - Screen/Ground
Pin 2 - Hot Signal
Pin 3 - Cold Signal
Note: Sockets are viewed from the front
face.
Operators Manual - Page 44
The following list of features is based upon the 48-channel frame size console.
48 mono input channels
16 Mix Bus Outputs
Mono Channels: 4 Swept Frequency Bands (Treble, Hi Mid, Lo Mid, Bass)
48 volt phantom power independently switched on each channel (always enabled on talk mic)
Hi-Pass filter on all inputs (Variable 20Hz to 400Hz)
Signal Generator
48 Switched Channel Inserts
16 Switched Mix Bus Inserts
48 Direct Outputs (Five jumper selectable source options)
Solo Tracking System
Microphone XLR(f) 1k5 ohm Yes Variable (+21dBu w/pad) 48
Ch Line Input 1/4” TRS Jack 10k ohm Yes Variable (+36dBu w/pad) 48
Direct Input 1/4” TRS Jack 10k ohm Yes Variable (+26dBu) 2
Talk Mic XLR(f) 1k5 ohm Yes Variable (+6dBu) 1
Talk Input XLR(f) 10k ohm Yes 0dBu (+21dBu) 1
Direct Out 1/4” TRS Jack 100 ohm Imp Bal. 0dBu (+21dBu) 48
Mix Out XLR(m) 50 ohm Yes 0dBu (+21dBu) 16
Talk Out XLR(m) 50 ohm Yes 0dBu (+21dBu) 1
Master Out XLR(m) 50 ohm Yes 0dBu (+21dBu) 2 (LR)
Monitor Out XLR(m) 50 ohm Yes 0dBu (+21dBu) 3 (LRM)
PFL Out XLR(m) 50 ohm Yes 0dBu (+21dBu) 1
Headphones 1/4” TRS Jack To drive headphones > 100 ohm +10dBu (+21dBu) 1
Input 1/4” TRS Jack 50/10k ohm (s/r) No 0dBu (+21dBu) (send/ret) 48
Mix 1/4” TRS Jack 50/10k ohm (s/r) No 0dBu (+21dBu) (send/ret) 16
Master 1/4” TRS Jack 50/10k ohm (s/r) No 0dBu (+21dBu) (send/ret) 2
Total XLR input count 50
Total Jack input count 50
Total XLR output count 23
Total Jack output count 49
Total insert count 66
The 48-channel Siena features:
Type Connector Impedance Balanced Level Nom(Max) No.
Inputs
Outputs
Inserts
12
3
1
2
3
