14
SPRING
SNAP
FLANGED
NUT
FLAT
WASHER
5/16” X 1-1/2”
SCREW
NOTE: DO NOT install top panel onto double or triple
ovens until AFTER stacking the oven cavities. See Part B,
Stacking.
B. Stacking
For single ovens, skip ahead to Part C, Restraint Cable
Installation.
IMPORTANT
Middleby Marshall STRONGLY RECOMMENDS that the
PS638-WOW oven cavities be stacked by AUTHORIZED
PERSONNEL.
Contact your Middleby Marshall Authorized Service
Company for complete stacking instructions.
1. Stack an oven cavity on top of the lower oven. Check
the following:
Insulation is installed on the lower oven top.
All four sides of the lower lip (on the bottom edge
of the oven cavity) overlap the top of the lower
oven.
The oven is level.
The oven is firmly seated and the top insulation
layer is installed smoothly and fully covering the
metal panel.
See Figure 2-9.
2. For triple ovens, repeat Step 1 to install the top oven
cavity.
3. Install the top panel using the screws included in the
base pad kit, as shown in Figure 2-10.

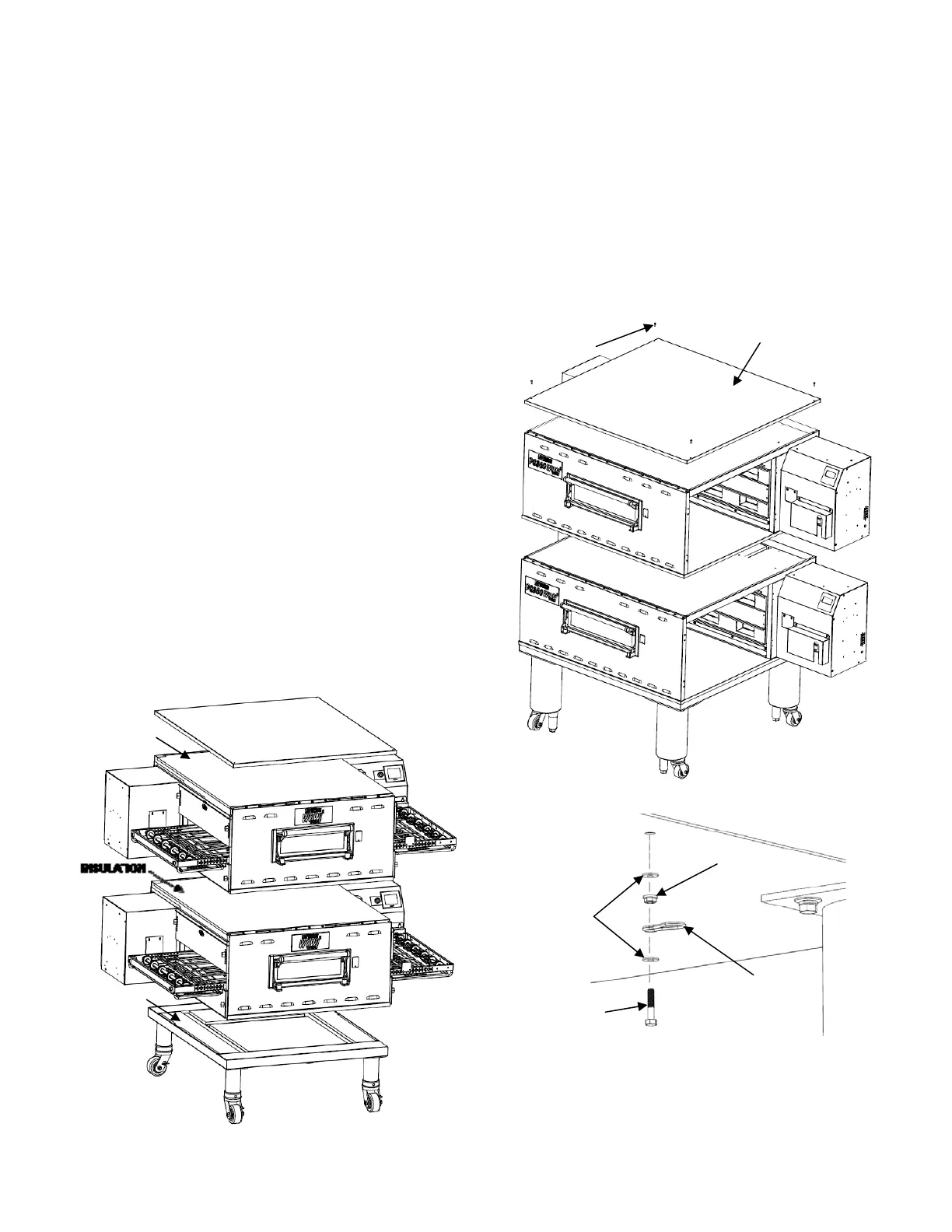

Figure 2-9. Stacking
C. Restraint Cable Installation
Because the oven is equipped with casters, a restraint
cable assembly must be installed to limit the
movement of the appliance without depending upon
the connector and the quick disconnect device or its
associated piping. One end of the cable is anchored to
the snap clip on the underside of the base pad while
the other is anchored to the wall. See Figure 2-11.
After connecting the restraint cable, move the oven to
its final location. Lock the two front casters.
FIGURE 2-10. Top Panel Installation
FIGURE 2-11. Installing the Restraint Cable
The restraint cable is connected to the spring
snap located at the back-center of the base
underside. The ¾” eyebolt must be anchored to
the wall or floor to attach the other end of the
restraint cable.
INSULATION
#10-32 X 3/4”
SCREWS
4
OVEN TOP PANEL
INSULATION
