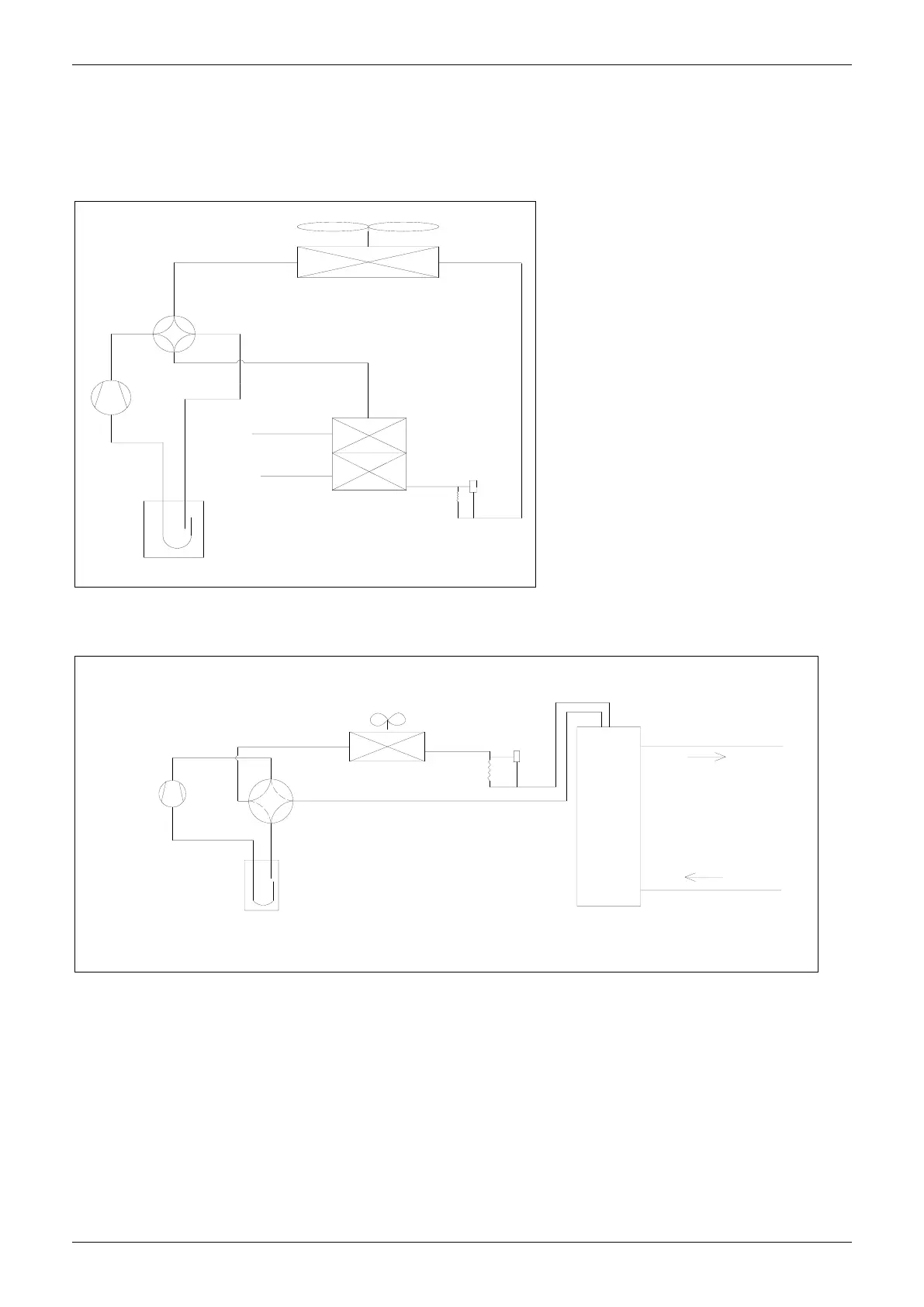

7．Refrigeration System Sketch Drawing
SS series
7.1 35kW module refrigeration system sketch drawing
Each module has one compressor with one separate unit, one refrigerant system.
Compressor
Low pressure cylinder
4-way valve
Condenser
Evaporator
(Double-pipe heat exchanger)
Fan
Water outlet
Water inlet
EXV
Capillary
7.2 65/80kW module refrigeration system sketch drawing
Each module has one compressor with one separate unit, one refrigerant system.
Dry type evaporator
Condenser
Water flow direction
4-Way valve
Fan
EXV
Capillary
Compressor
low pressure cylinder
Shell and tube
heat exchanger
To Next Page
