Midea Aqua Tempo Super MC-SS80/RN1L

MCAC-ATSM-201606 Aqua Tempo Super Series air cooled scroll chiller unit (50Hz)
6

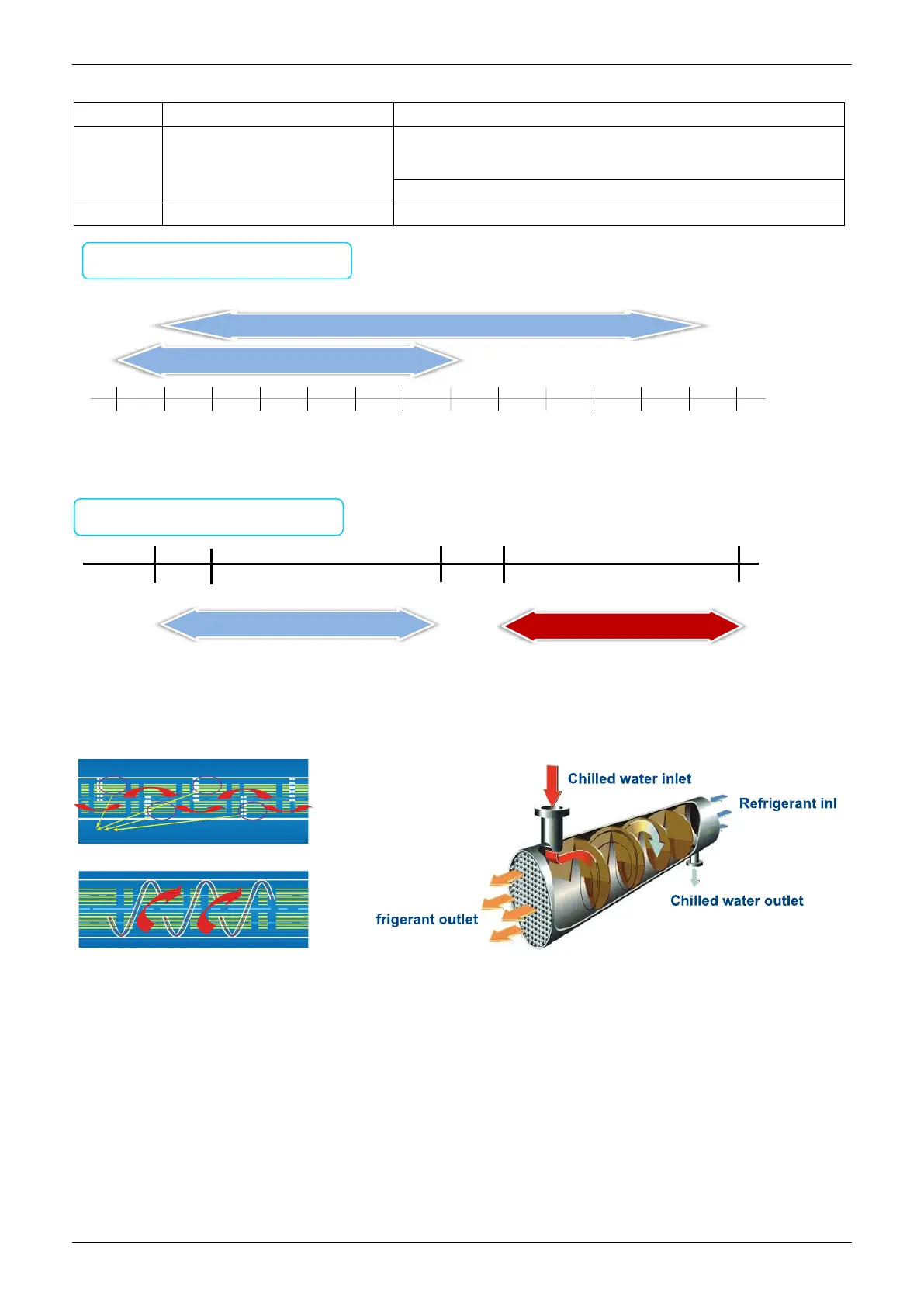

4.10 Applicable temperature range
Mode
Ambient temperature range
Water outlet temperature range
Cooling
-10˚C ~46˚C
0˚C ~17˚C (7˚C is default, less than 5 ˚C must add the antifreeze, SS
series.)
5˚C ~17˚C（SP series）
Heating
-15˚C ~24˚C
25˚C ~50˚C (45˚C is default)
Chilled outlet water temperature can be adjusted by wired controller according to customer’s demand.
SS series
4.11 Double pipe&shell and tube heat exchanger
Chilled water inlet
Refrigerant inlet
Chilled water outlet
Refrigerant outlet
Flat baffle plate
Helical baffle
Water dead zone
For shell-tube heat exchanger, the module adopts the new helical baffle design to avoid the rectangular
place of water dead zone, greatly improve the heat exchange efficiency.
-15 ˚C
Ambient temp. range
-10 ˚C
-5 ˚C
0 ˚C
5 ˚C
10 ˚C
15 ˚C
20 ˚C
25 ˚C
30˚C
35 ˚C
40 ˚C
45 ˚C
Cooling range
-10 ˚C
46˚C
Heating range
-15 ˚C
24 ˚C
Water outlet temp. range
5 ˚C
17 ˚C
50 ˚C
0 ˚C
17 ˚C
Heating range
Cooling range
25 ˚C
0 ˚C
50 ˚C
50 ˚C
25 ˚C
