Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
7
SP series

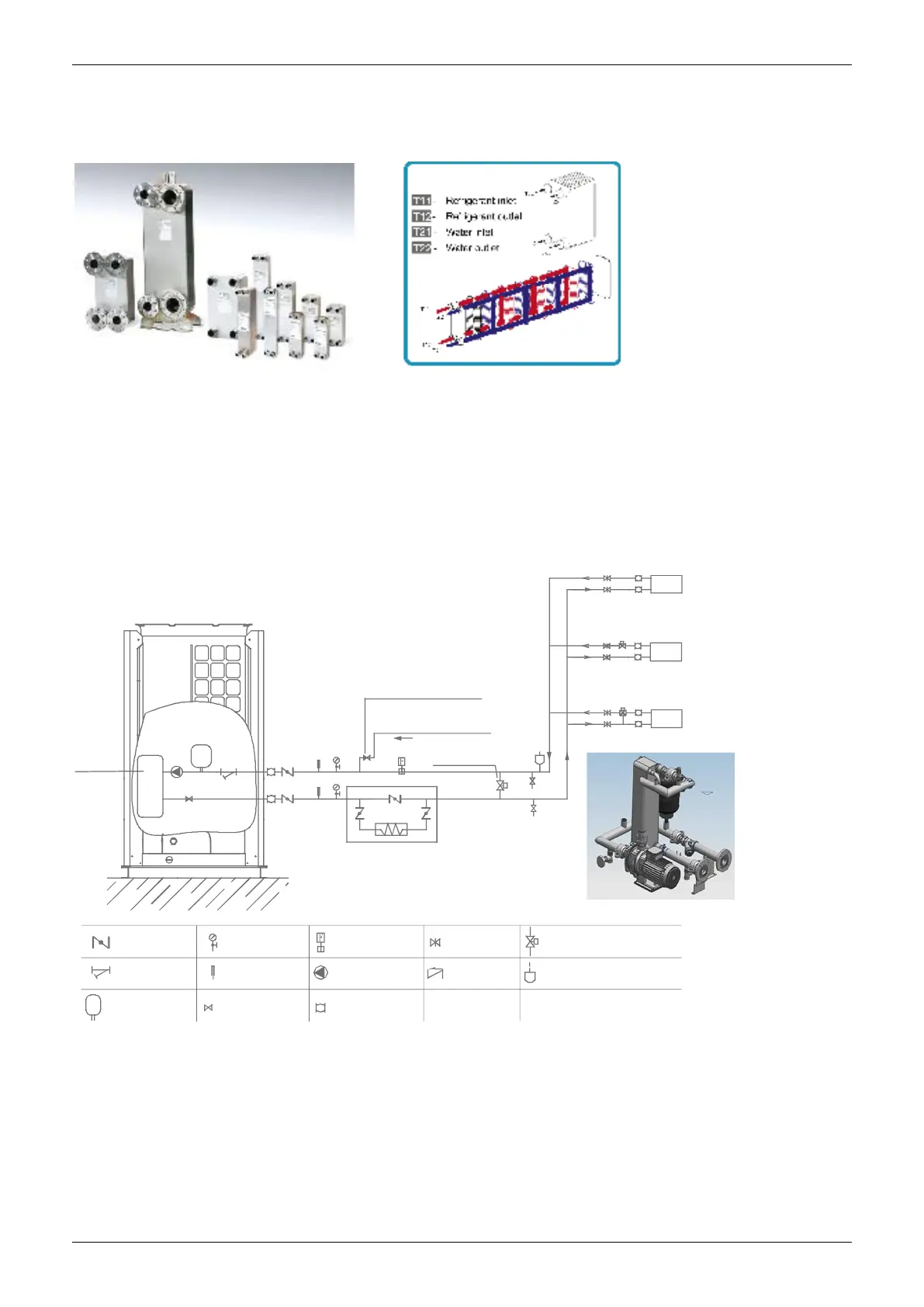

4.12 Plate heat exchanger
By adopting high efficiency plate heat exchanger, the energy consumption can be reduced.
Built-in with voltage protection, current protection, anti-freezing protection, water flow protection and etc.,
effectively guarantee the system to work safety.
Metallic protective cabinet with rustproof plyester paint.
4.13 Built-in hydraulic module
The modules are fully integrated and built-in hydraulic module, such as expansion tank, plate heat
exchanger, water circulating pump, etc. It saves installation space and cost.
(Available for MC-SP25M-RN1L &MC-SP35M-RN1L)
Auxiliary electric heater
Terminal
Two-way valve
Drain valve
Plate heat
exchanger
Drain valve
Three-way valve
Water charge valve
0.15MPa< Water
replenishing pres<0.6MPa
Differential pressure
by-pass valve
Stop valve Pressure gauge Water flow switch Gate valve
Flexible joint
Y-shaped filter Thermometer Circulating pump Check valve Automatic discharge valve
Differential pressure
by-pass valve
Safety valve
Expansion vessel
To Next Page
