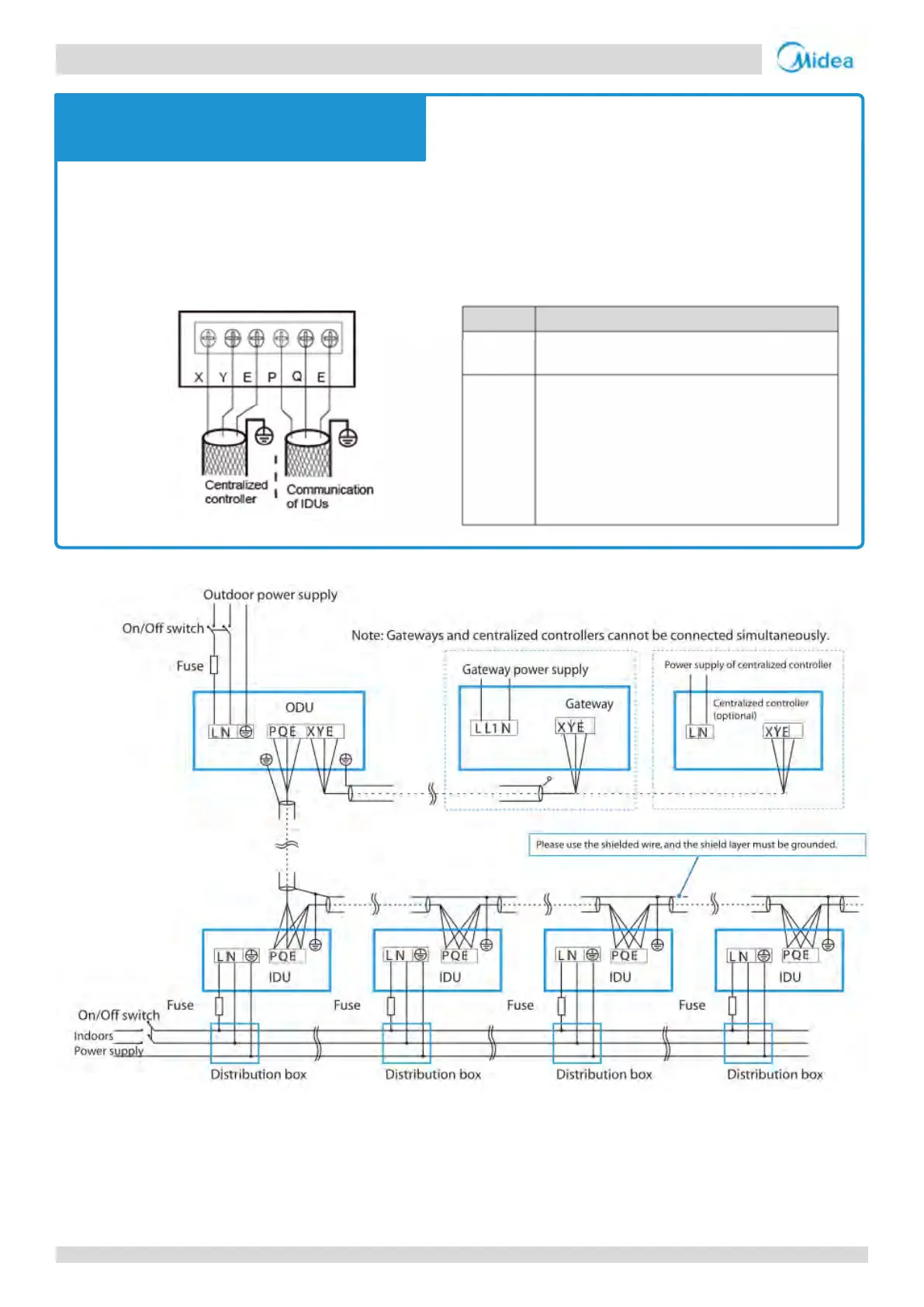

Figure 3-8.4: System power wiring example
The communication wires should be connected to the outdoor unit terminals indicated in Figure 3-8.3 and Table
3-8.2.
Caution
Communication wiring has polarity. Care should be taken to connect the poles correctly.
Figure 3-8.3: Outdoor unit communication terminals
Table 3-8.2: Communication connections
Terminals Connection
X Y E Connect to centralized controller or gateway
P Q E Connect between indoor units and outdoor unit
Notes for installers
