Midea ATOM MDV-V28WDHN1

-I Atom B Series VRF 50/60Hz
101
Part 3 - System Design and Installation
8.4 Wiring example

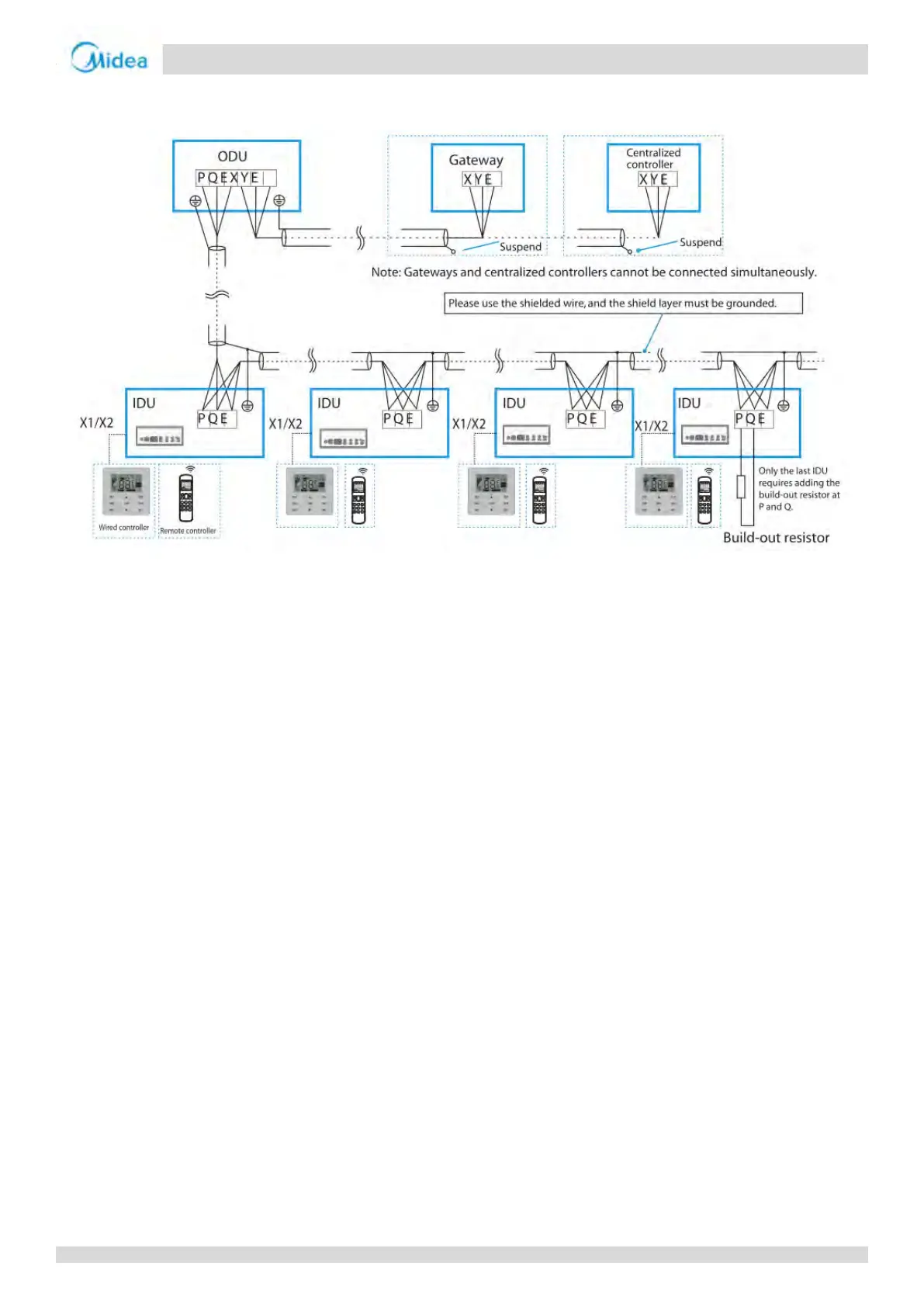

Figure 3-8.4: System communication wiring example
Note: The wired controller and centralized controller in the dashed box are optional accessories. If necessary, please contact
the local distributor for purchase.
