MCAC-UTSM-201606 Midea 50Hz AC Fan Coil Unit Two-pipe Wall-mounted Series
- 28 -

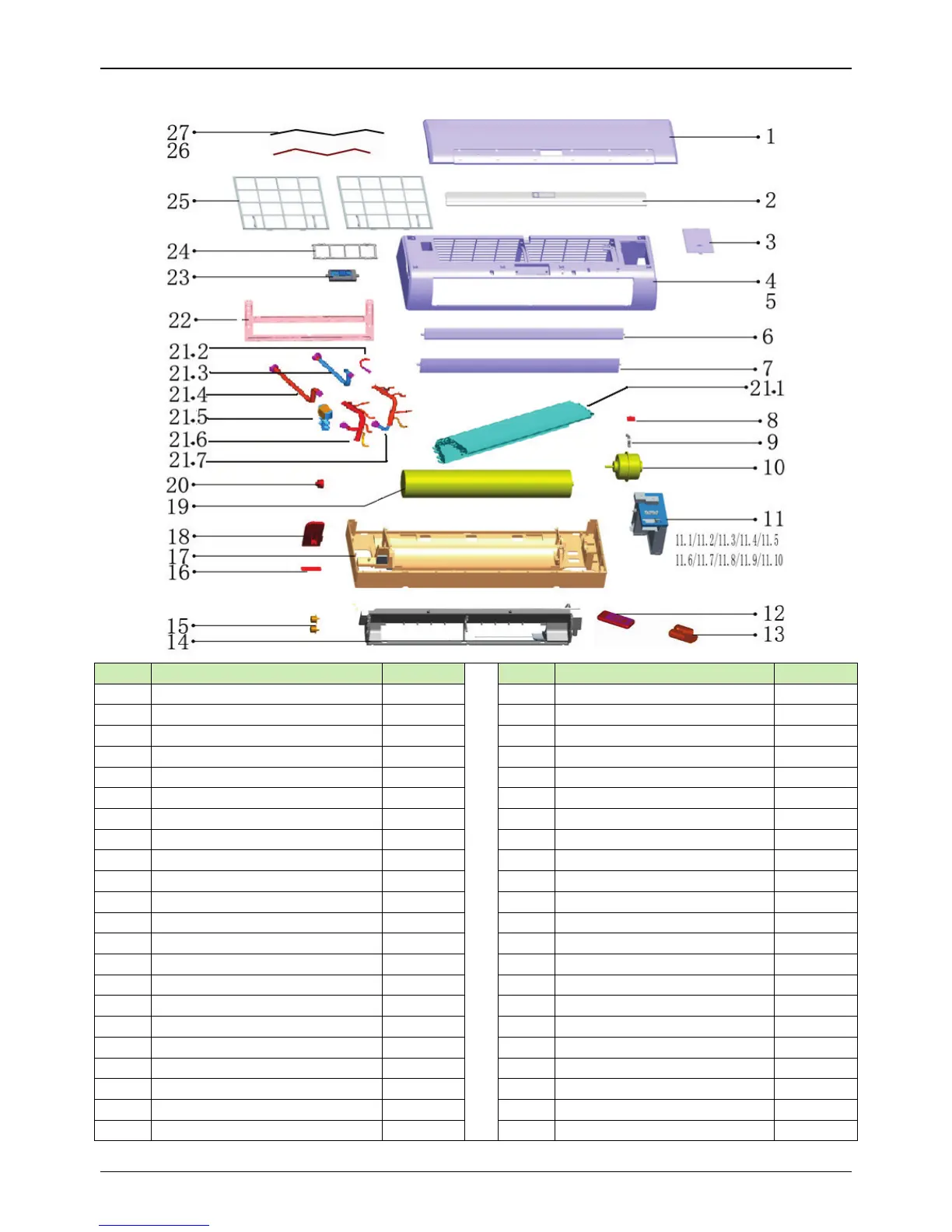

S panel
No.
Part Name
Quantity
No.
Part Name
Quantity
1
Panel ass'y
1
16
Pipe clamp
1
2
Panel decorative plates
1
17
Chassis ass'y
1
3
Electrical cover
1
18
Drainage pan ass'y
1
4
Panel frame ass'y
1
19
Cross fan
1
5
Screw cover
3 20
Bearing block
1
8
Sealing plug
2
21
Evaporator ass'y
1
9
Motor spud
2
21.1
Evaporator
1
10
Motor
1
21.2
Evaporator
1
11
E-part box ass'y
1
21.3
Evaporator
1
11.1
Electric control box base
1 21.4
Evaporate connecting board
1
11.2
Electric control box side panel
1
21.5
Evaporate connecting board
1
11.3
electric control box cover
1
21.8
Water-outlet pipe ass'y
1
11.4
Dial switch cover label
1
21.9
Water-inlet pipe ass'y
1
11.5
Dial code switch board ass'y
1
21.10
3-Way valve
1
11.7
Terminal block, 5p
1 21.11
Discharge valve
1
11.8
Main control board ass'y
1
22
Installation board ass'y
1
11.9
Terminal block, 3p
1
23
Display board ass'y
1
11.10
Capacitor
1
24
Air purify net
1
12
Remote controller
1
25
Filter network
2
13
Remote controller bracket
1 26
Pipe temp. sensor ass'y
1
14
Air outet frame
1
27
Room temp sensor ass'y
1
15
Stepper motor
1
