13.2 Accessory

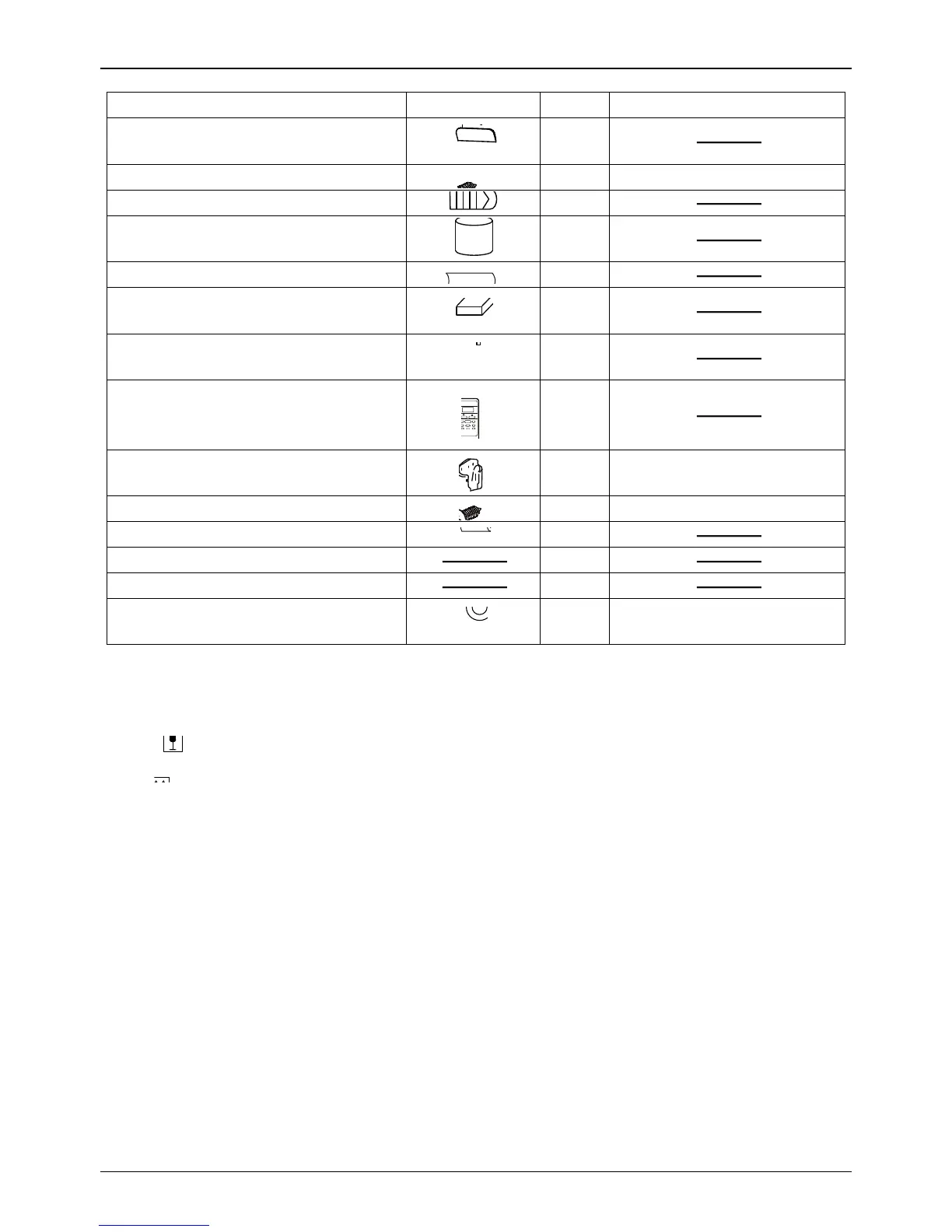

Name Shape Quantity Function
Installation board 2
Screw ST3.9x25 for installation board
3 Secure the installation board
Plastic expanded tube
3
Wrapping tape
1
Drain pipe
2
Sealing clay 2
Wall conduit cover 1
Remote controller (including operation manual) 1
Frame
1 Hold the remote controller
Mounting screw(ST2.9×10-C-H)
2 Insulation Holder for remote controller
Alkaline dry batteries (AM4) 2
Owner's manual
1
Installation manual
1
12. seel gasket 4 For connecting water pipe
13.3 Inspecting and Handling the unit
At delivery, the package should be checked and any damage should be reported immediately to the carrier claims
agent.
When handling the unit, take into account the following:
1. Fragile, handle the unit with care.
2. Keep the unit upright in order to avoid compressor damage.
3. Choose on beforehand the path along which the unit is to be brought in.
4. Move this unit as originally package as possible.
5. When lifting the unit, always use protectors to prevent belt damage and pay attention to the position of the
unit’s centre of gravity.
13.4 Indoor Unit Installation
13.4.1 Installation place
Installation in the following places may cause trouble. If it is unavoidable, please consult with the local dealer.
• A place full of machine oil.
• A saline place such as coast.
• A place full of sulfide gas such as hot-spring resort.
• Places where there are high frequency machines such as wireless equipment, welding
• Machine and medical facility.
• A place there is no combustive gases and volatile matter.
• A place of special environmental conditions.
Installation in the following places:
 A place where is no obstacle near the inlet and outlet area.
 A place which can bear the indoor unit.
 A place which is convenient to maintenance.
