Installation place
(unit: mm/inch)
423mm (16.65in)
335mm(13.19in)
1105mm(43.5in)
250mm(9.84in)
1360mm(53.54in)
475mm(18.4in)
205mm(8.07in)

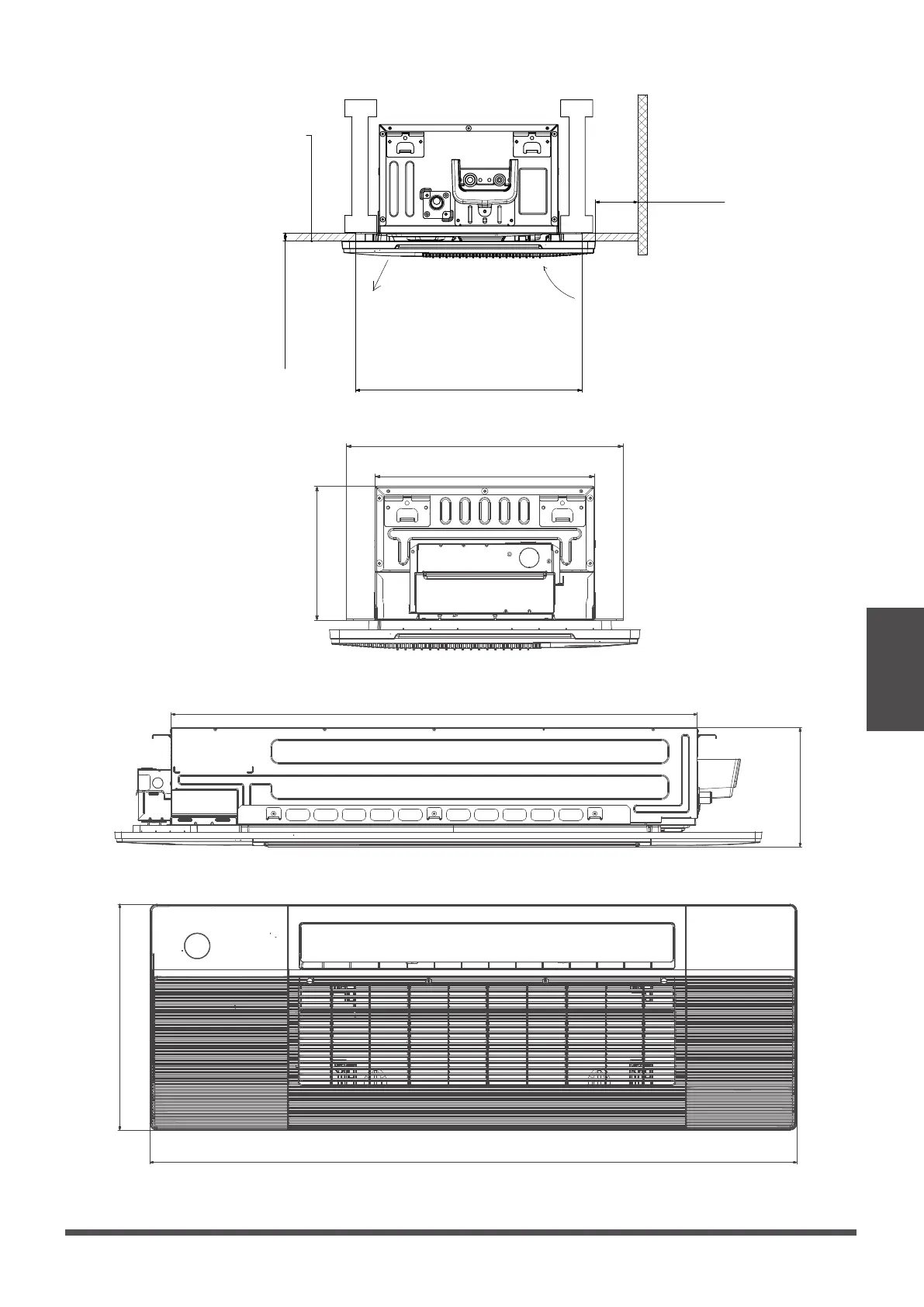

Indoor Unit
Installation
(unit: mm/inch)
Indoor parts installation size

Page 21
≤16mm(5/8 in )
＞200mm(7.87 in)
Ceiling hole
air inlet
air outlet
Ceiling
Wall
