Install the control box cover and turn the
circuit breaker to ON, then close the two plastic
covers on both sides of the panel.
●
During the test-run process, the display
wil be lighted and the air griller will rise
automatically.

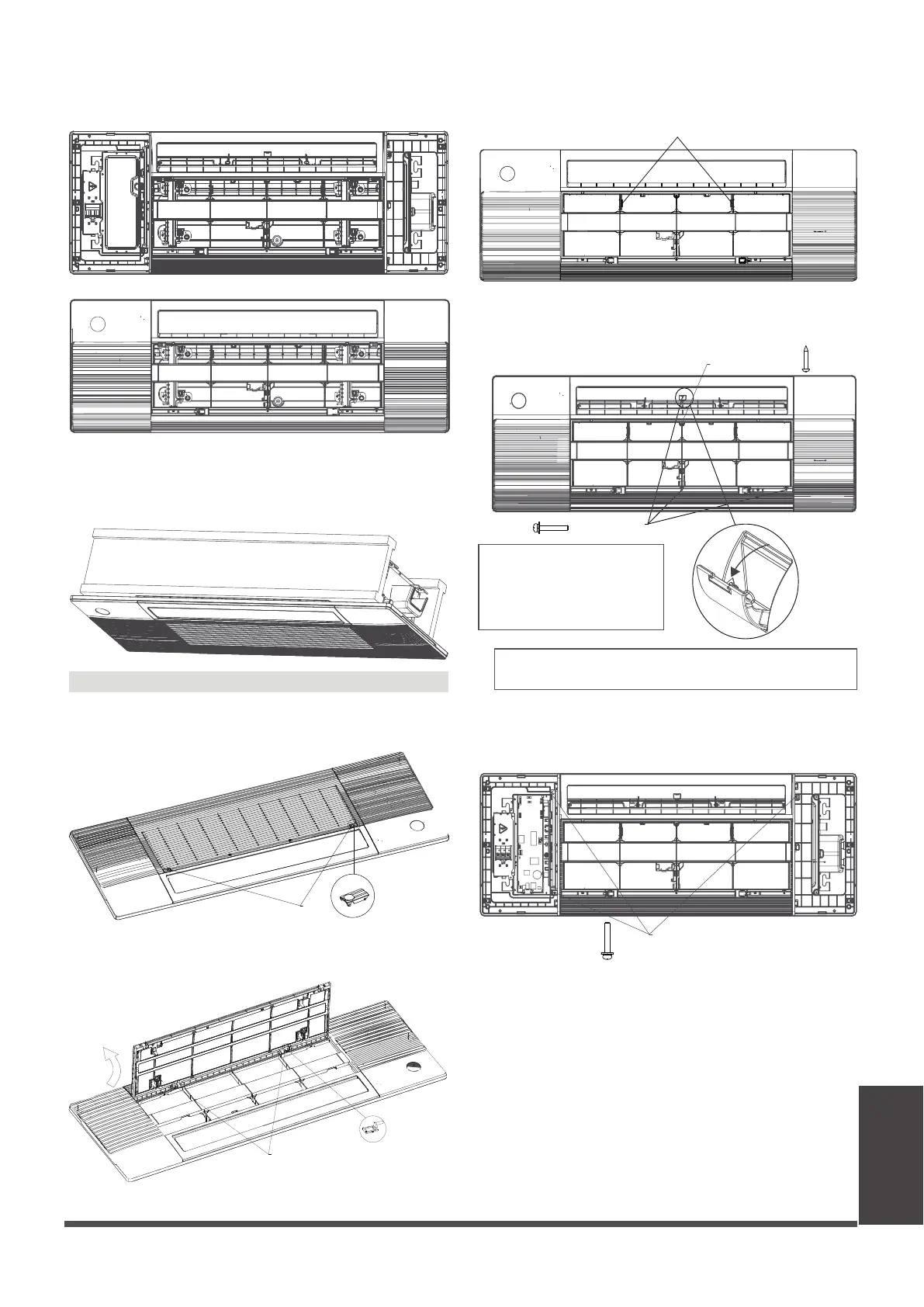

Panel Installation
Model B
●
Press the circular positon to open the two
screw covers, then remove the two screws.
Screw Covers
●
Hold and open the air grille, then push both
of the latch to the middle to unlock the air grille.
Before xing this screw, you need to open the screw cover;
and after xing screw, please close the cover.
●
Open the two covers on both sides of the panel ,
x the panel to the cassette by using 3× M4*22
screws.
M4*22 screw
NOTICE
Eight M4*22 screws are
supplied, two of which are
spare. Two ST3.9*16 screws
are supplied, one of which is spare.
M4*22 screw
ST3.9*16 screw
●
Pull the panel grille out of the panel, x the
cassette panel to the one-way cassett by two
plastic buckles.
●
Manually rotate the air deector, x the panel
to the cassette by using 3×M4*22 screws and a
ST3.9*16 screw.
palstic buckle
Latch
